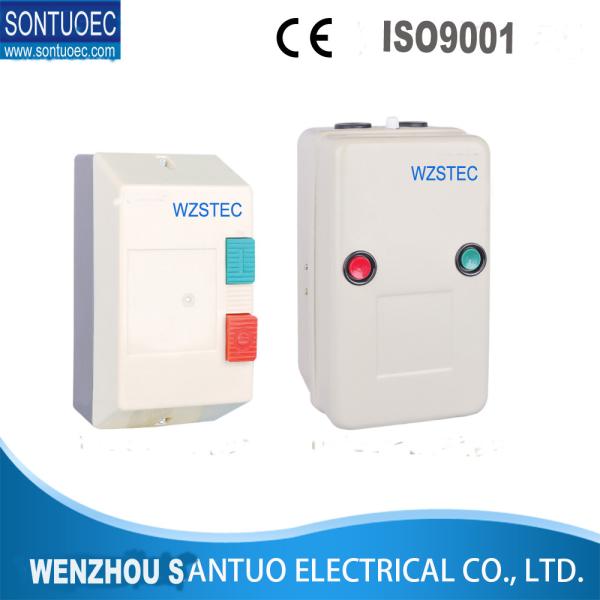

IEC947 Magnetic Starters With Thermal Overload , Electrical Power Motor Starter DOL
IEC947 Magnetic Starters With Thermal Overload , Electrical Power Motor Starter DOL
Specifications
Brand Name :
SONTUOEC, WZSTEC
Model Number :
SE1
Certification :
CE
Place of Origin :
China
MOQ :
500pcs
Price :
negotiable
Supply Ability :
5000pcs/day
Standard :
IEC 60947-1
Coil voltage :
24,48,110,220,230,240,380,415,440V
In :
09,12,18,25,32,40,50,65,80,95A
Frequency :
50Hz,60Hz,50/60Hz
Type :
MS
Color :
White
Description

IEC947 Magnetic Starters With Thermal Overload , Electrical Power Motor Starter DOL

A magnetic starter is an electromagnetically operated switch which provides a safe method for starting an electric motor with a large load. Magnetic starters also provide under-voltage and overload protection and an automatic cutoff in the event of a power failure.

Application

  1. LE1-D series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,

voltage up to 550V for far distance making and breaking circuit and frequently starting
and controlling motor. It has the features of small volume, light weight,
low power consumption, high efficiency, safe and reliable performance.

  1. It complies to IEC947-4-1

Specifications

Product mode No.and specificatiol LE1-09 and 12 Double in sulated,protected to IP429(3) or IP659(4)
Enclosure LE1-18 and 25 Double in sulated,protected to IP427(3) or IP557(4)
LE1-32 ~ 95 Metal, IP55 to IP559
Control(2 push buttons moufited on enclosure cover) LE1-09 ~ 95 1 Green start button 'I', 'I' Red stop/Teset buttion "O"
Connections LE1-09 ~ 95 Electrical power and control recircuit connections


Standard control circuit voltages

Volts 24 42 48 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7
Maximum power AC3 duty(KW) Rated current (A) Type of enclosure Code number Suitable thermal relay
220V 230V 380V 400V 415V 440V 500V 660V 690V Long Life Normal life
2.2 4 4 4 4 4 9 IP42
IP65		 LE1-D094
LE1-D093		 LR2 D1312
LR2 D1314
3 5.5 5.5 5.5 5.5 5.5 12 IP45
IP55 		LE1-D124
LE1-D123 		LE1-D094
LE1-D093		 LR2 D1316
4 7.5 9 9 10 10 18 IP42
IP55 		LE1-D188
LE1-D185 		LE1-D124
LE1-D123 		LR2 D1321
5.5 11 11 11 15 15 25 IP42
IP55 		LE1-D258
LE1-D255 		LE1-D188
LE1-D185 		LR2 D1322
LR2 D2353
7.5 15 15 15 18.5 18.5 32 IP55 LE1-D325 LE1-D258
LE1-D255 		LR2 D2355
11 18.5 22 22 22 30 40 IP55 LE1-D405 LE1-D325 LR2 D3353
LR2 D3355
15 22 25 30 30 33 50 IP55 LE1-D505 LE1-D405 LR2 D3357
LR2 D3359
18.5 30 37 37 37 37 65 IP55 LE1-D655 LE1-D505 LR2 D3361
22 37 45 45 55 45 80 IP55 LE1-D805 LE1-D655 LR2 D3363
LR2 D3365
25 45 45 45 55 45 95 IP55 LE1-D955 LE1-D805 LR2 D3365

Auxiliary Relay Amp Range Match Contactor Model
(LR2)TR2-1301 0.1-0.16 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1302 0.16-0.25 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1303 0.25-0.4 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1304 0.4-0.63 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1305 0.63-1 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1306 1-1.6 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1307 1.6-2.5 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1308 2.5-4 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1310 4-6 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1312 5.5-8 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1314 7-10 (LC1)SC1-09,12,18,25,32
(LR2)TR2-1316 9-13 (LC1)SC1-12,18,25,32
(LR2)TR2-1321 12-18 (LC1)SC1-18,25,32
(LR2)TR2-1322 17-25 (LC1)SC1-25,32
(LR2)TR2-1353 23-32 (LC1)SC1-32
(LR2)TR2-3353 23-32 (LC1)SC1-40,50,65
(LR2)TR2-3355 30-40 (LC1)SC1-40,50,65
(LR2)TR2-3357 37-50 (LC1)SC1-50,65
(LR2)TR2-3359 48-65 (LC1)SC1-65
(LR2)TR2-3363 63-80 (LC1)SC1-80.95

(LR2)TR2-3365

 80-93

(LC1)SC1-95
