ST61 White Two Pole Circuit Breaker 400V With Adjustable Action Value
ST61 White Two Pole Circuit Breaker 400V With Adjustable Action Value
Specifications
Brand Name :
SONTUNE
Model Number :
ST61
Certification :
CE
Place of Origin :
China
MOQ :
10000PCS
Price :
Negotiable
Supply Ability :
10000PCS/DAY
Packaging Details :
240PCS/CTN
Delivery Time :
20DAYS
Type :
MCB
Ue :
230/400V
in :
6,10,16,20,25,32,40,50,63A
Pole :
2p
Color :
White
Install :
Din Rail
Description

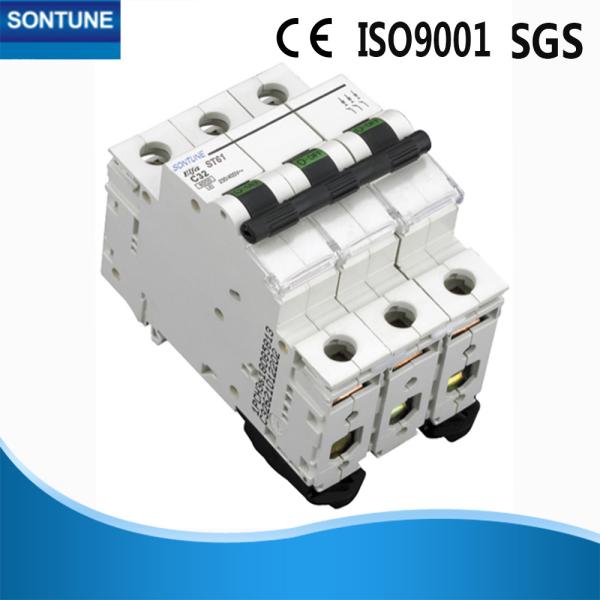

St61 Series ( MCB ) 1p 2p 3p 4p Miniature Circuit Breaker

GENERAL


ST61 series high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V

3, 4 poles 400V, rated current to 63A for overload and short-circuit protection as well as for unfrequented switching under normal case.It is used extensively for industry, commercial and household.This product conform to IEC60898 standard.

Specification:

Model ST61 MCB
Pole 1P,2P,3P,4P
Rated Current(In) 1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un) 230/400V
Rated Frequency 50/60HZ
Tripping curve B,C,D
Magnetic releases B curve: between 3and 5 In
C curve: between 5and 10In
D curve: between 10 and 14In
Electro-mechanical endurance over 6000 cycles

Standard IEC/EN 60898-1
Electrical
features		 Rated current In A 1,2,4,6,10,16,20,25,32,40,50,63
Poles P 1,2,3,4
Rated voltage Ue V 230/400
Insulation voltage Ui V 500
Rated frequency Hz 50/60
Rated breaking capacity A 6000,10000
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind.Freq.for 1 min Kv 2
Pollution degree 2
Thermo-magnetic release characteristic B,C,D
Mechanical
features		 Electrical life t 4000
Mechanical life t 10000
Protection degree IP20
Reference temperature for setting
of thermal element		 ℃ 30
Ambient temperature
(with daily average ≤35℃)		 ℃ -5~+40(Special application please refer to
temperature compensation correction)
Storage temperature ℃ -25~+70
Installation Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-3
Therminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2
In-lbs 18
Mounting on DIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom
