35mm DIN Rail Miniature Circuit Breaker 63Amp 400V
35mm DIN Rail Miniature Circuit Breaker 63Amp 400V
Specifications
Brand Name :
SONTUOEC ,WZSTEC
Model Number :
STEZ9-63
Certification :
CE
Place of Origin :
Wenzhou,China
MOQ :
12000PCS
Price :
Negotiable
Supply Ability :
10000PCS/DAY
Delivery Time :
25DAYS
Packaging Details :
240PCS/CTN 1Pole
in :
1,2,4,6,10,16,25,32,40,50,63 A
Ue :
230/400V
Items no. :
EZ9-63
Type :
Mini , Air, Solar, Miniature Circuit Breaker, Magnetic
Install :
Din Rail
Tripping Curve :
B,C, D
Product Name :
c45n mini circuit breaker, Plug In Type Circuit Breaker, smart circuit breaker
Description

SONTUOEC Manufacturer of 35mm DIN Rail miniature circuit breaker 1P,2P,3P,4P 1,2,4,6,10, 16 ,20, 25,32,40,50,63Amp new MCB with competitive price

STEZ9-63 series miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A.

Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898-1and GB10963.1.

It also can be used for non-frequent on-and-off switch operation under normal circumstance.
In complicance with IEC/EN60898-1
With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm , wiring torque 2.5N*m, applicable to a variety of installing equipments, wiring stronger

Specifications

Model STEZ9-63 MCB
Pole 1P,2P,3P,4P
Rated Current(In) 1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un) AC230(240)/400(415)V
Rated Frequency 50/60HZ
Tripping curve B,C,D
Magnetic releases B curve: between 3and 5 In
C curve: between 5and 10In
D curve: between 10 and 14In
Electro-mechanical endurance over 6000/10000 cycles

Standard IEC/EN 60898-1
Electrical
features		 Rated current In A 1,2,4,6,10,16,20,25,32,40,50,63
Poles P 1,2,3,4
Rated voltage Ue V AC 230/400,240/415
Insulation voltage Ui V 500
Rated frequency Hz 50/60
Rated breaking capacity A 6000,10000
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind.Freq.for 1 min Kv 2
Pollution degree 2
Thermo-magnetic release characteristic B,C,D
Mechanical
features		 Electrical life t 4000
Mechanical life t 10000
Protection degree IP20
Reference temperature for setting
of thermal element		 ℃ 30
Ambient temperature
(with daily average ≤35℃)		 ℃ -5~+40(Special application please refer to
temperature compensation correction)
Storage temperature ℃ -25~+70
Installation Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-3
Therminal size top/bottom for busbar mm2 25
AWG 18-3
Tightening torque N*m 2
In-lbs 18
Mounting on DDIN rail EN 60715(35mm)by means of fast clip device
Connection From top and bottom

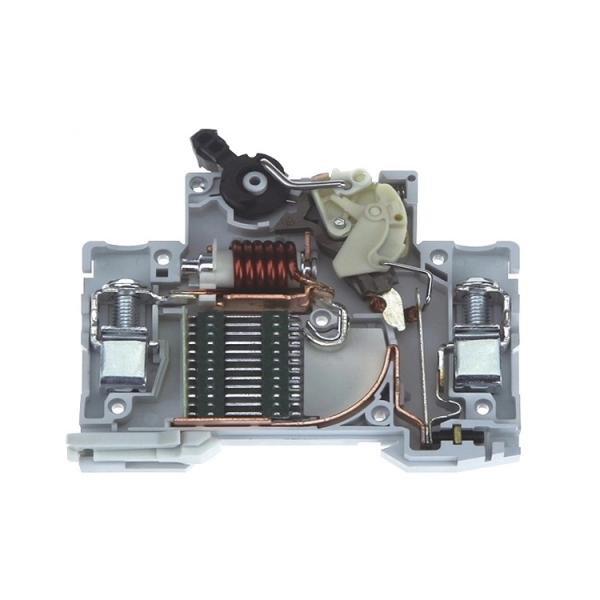

35mm DIN Rail Miniature Circuit Breaker 63Amp 400V

Product Packaging

DZ47-63 Miniature Circuit breaker:Middle Box+ Exporting Standard Carton

1P: Box size: 124x82x80mm; 12pcs/box, 20boxes/ctn(240pcs/ctn),

1P: Carton size: 44x23x33cm; W/N.G: 25/24KG

35mm DIN Rail Miniature Circuit Breaker 63Amp 400V
