125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
Specifications
Brand Name :
SONTUOEC, WZSTEC
Model Number :
STPF60-125
Certification :
CE, SAA, Semko ,ISO9001
Place of Origin :
China
MOQ :
500PCS
Price :
Negotiable
Supply Ability :
5000PCS/DAY
Delivery Time :
15DAYS
Packaging Details :
100pcs/ctns
Type :
RCCB,RCD, ELCB
Breaking Capacity :
6KA
Ue :
230/400V
Pole :
2p 4p
Brand :
SONTUOEC
Install :
Din Rail
Description

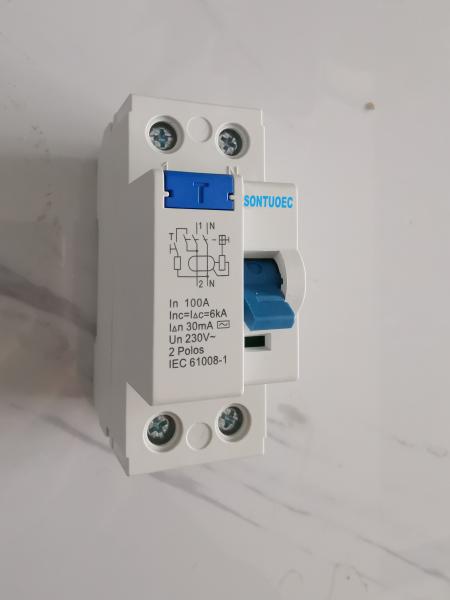

SONTUOEC RCD 35mm DIN Rail Residual Current Circuit Breaker AC or A type 2P,4P 400V 80A 100A 125A magmetic type RCCB Price

The Residual Current Circuit breaker SONTUOEC RCCBs are the safest device to detect and trip against electrical leakage currents, thus ensuring protection against electric shock caused by indirect contacts. These devices must be used in series with an MCB or fuse which protects them from the potentially damaging thermal and dynamic stresses of any over currents. They also act as the main disconnecting switches upstream of any derived MCBs (e.g. domestic consumer unit)

STFP60 Series residual current circuit breaker is in conformity with the standards of IEC61008.It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.It can be used in circuits up to single phase 240V,three phase 415V,50 or 60Hz.

Technical Data

Rated Current In 63A, 80A,100A,125A
Poles 2P(1P+N); 4P( 3P+N)
Rated Voltage Ue 2P: 230V ; 4P: 400V
Rated Frequency 50/60Hz
Rated Sensitivity 30mA 100mA 300mA 500mA
Breaking capacity 3KA, 6KA
Electrical Life 4000
Mechanical Life 4000
Protection Degree IP20
Certificate CE CB SEMKO SAA
Guarantee 18Months

125A Magnetic Type 35mm Din Rail RCCB Circuit Breaker
