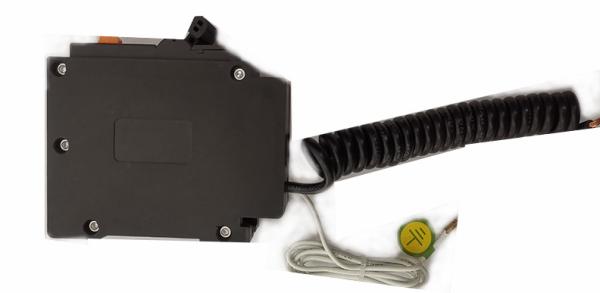

1P+N Plug in type Circuit Breaker 40A/30mA RCBO
1P+N Plug in type Circuit Breaker 40A/30mA RCBO
1P+N Plug in type Circuit Breaker 40A/30mA RCBO
1P+N Plug in type Circuit Breaker 40A/30mA RCBO
Specifications
Brand Name :
SONTUOEC,SONTUNE,WZSTEC, IMDEC, EUELCB
Model Number :
STRO4-40L
Certification :
CE
Place of Origin :
WENZHOU,CHINA
MOQ :
2000s
Price :
USD3.85/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000PCS/DAY
Delivery Time :
10-25DAYS
Packaging Details :
60PCS/CTN
POLE :
1P+N
Type :
Plug in
Max current :
40A/30mA
Market :
Middle East
Description

TRO4-40L Series residual current circuit breaker with overload current protection is in conformity with the standards of IEC61009.Single phase line+ neutral line circuit breaker is suitable to the single-phase residual circuit of AC50or60Hz, rated voltage 230V, protecting the circuit from overload and short circuit and leakage current protection. The product has high breaking capacity, volume small are cut at the same time to avoid the inversed grafting of live and null wire or danger caused by the voltage between zero wire and earth. It is the ideal power distribution switch for the present residence.

Rated Current In
6A 10A 16A 20A 25A 32A 40A
Poles
1P+N
Rated Voltage Ue
230/400V
Rated Breaking Capacity
4500A
Rated operating current(In)
10 30 100 300mA
Thermo-magnetic release characteristic
B C D
Rated impulse withstand voltage(1.2/50) Uimp
6KV
Dielectric test voltage at and ind. freq.for 1 min
2KV
Pollution Degree
2
Protection Degree
IP20
Electrical Life
8000
Mechanical Life
10000
Combination with Accessories
Auxiliary, Alarm, Shunt Release, Under Voltage Release
Circumstance Temperature
-5°C~+40°C
Certificate
CE
Guarantee
2YEARS
