Specifications
Brand Name :
SONTUNE, SONTUOEC, WZSTEC ,STUOEC
Model Number :
STA-63
Certification :
CE
Place of Origin :
China
MOQ :
10000PCS
Price :
Negotiable
Supply Ability :
10000PCS/DAY
Delivery Time :
25DAYS
Packaging Details :
240PCS/CTN
Ue :
230/415V
in :
1,2,4,40,50,63A
Breaking Capacity :
4.5KA,6KA
Standard :
IEC 60947-1 ; IEC60898.1
Credential :
CE
Texture :
Red Copper
Description

MCB series Professional new model excellent quality miniature circuit breakers 1P 2P 3P 4P MCB

GENERAL

1. STA-63 series MCB are suitable for circuit of AC 50HZ or 60HZ.rated voltage up to 400V,rated current up to 63A.

2. they are mainly used in office,singe-pole lighting,distribution system for overload and short circuit protection.

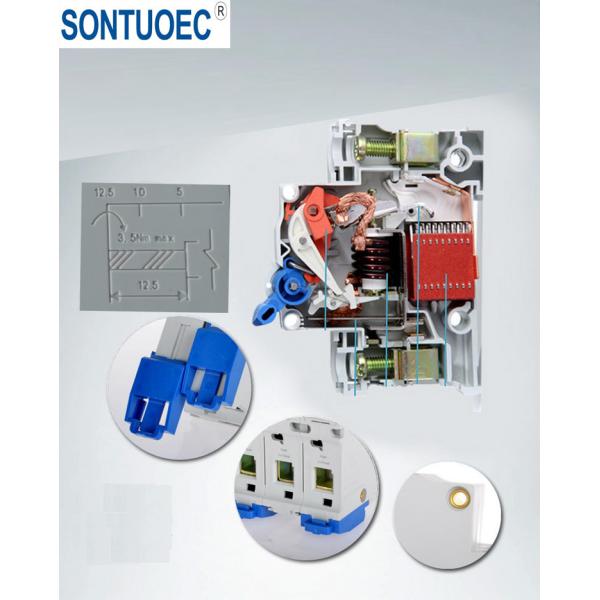

3. Its frame and parts adopt plastics of high fire resistant and shockproof.

4. The product overload and short circuit protection, as well as for unfrequently switching on&of electric equipment and lighting circuit in normal case.

5. The products comply with IEC60898.1

Red Copper Texture Miniature Circuit Breakers 1P Shockproof

TECHNICAL PARAMETER:

Standard IEC 60898-1/GB 10963.1 IEC 60947-2/GB 14048.2
Rated Voltage(V) 230/400 240/415
Basic Test Temperature 30ºC 40ºC
Number of Poles 1P 2P 3P 4P 1P+N 3P+N DPN
Rated Current in(A) 1-63
Breaking Capacity(A) 3000 4500 6000 10000
Rated Frequency 50/60Hz
Endurance(A) ≥ 4000
Pressure resistance 1 minute 2kv
Electrical Life ≥4000
Mechanical Life ≥10000
Protection Degree IP20
Circumstance Temperature -5ºC~+40ºC
Storage Temperation -25ºC~+70ºC
Pollution Degree 2
Thermo-manetic Release Characteristic B C D
Magnetic releases(Tripping Curve): B Curve: 3In -5In; C Curve: 5In-10In;D Curve: 10In-14In
Electro-mechanical endurance over 6000 cycles

Red Copper Texture Miniature Circuit Breakers 1P Shockproof

Our Services:

1.Reply inquiry in 8 hours.

2.Please kindly inform us which items and specification and relative request you are interested in ,the reasonable price will be provided to you upon receipt of your new inquiry details.

3.Our team have more than 20years' experience.

4.Warranty 18months.

5.Welcome to visit our manufactory and work on technology communication.

Red Copper Texture Miniature Circuit Breakers 1P Shockproof
