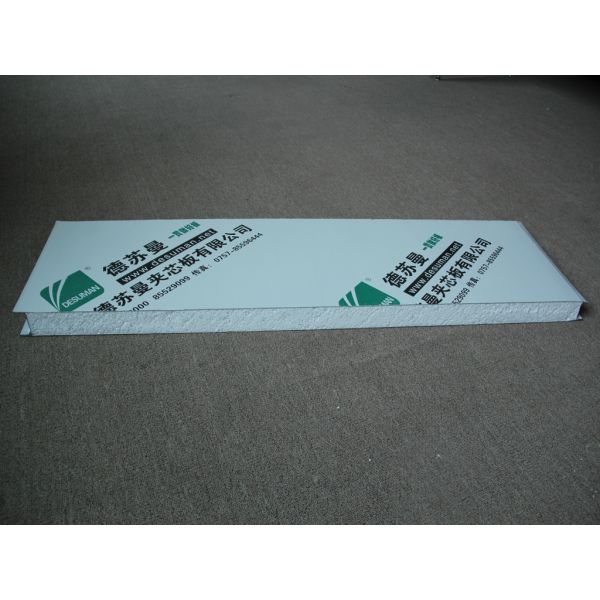

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
PPGI 125mm Fire Retardant EPS Clean Room Wall Panel
Specifications
Brand Name :
Desuman
Model Number :
EPS sandwich panel
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
500 ㎡
Price :
US$8-16 per square meter
Payment Terms :
L/C, T/T
Supply Ability :
6000 square meter per day
Delivery Time :
3-5 days
Packaging Details :
sea worthy packing
Product name :
EPS sandwich panel
Brand :
Desuman
Exterior finishing :
PPGI, Stainless Steel, Galvanized steel sheet
Core material :
EPS foam
Thickness :
50mm, 100mm, 125mm, 150mm, 200mm...
Width :
950mm / 1150mm
EPS density :
8kg/m³，10kg/m³，12kg/m³，14kg/m³，16kg/m³，18kg/m³，20kg/m³
Color :
Sea blue, sky blue, off white, ivory white, lotus green, bright red, or customized color
Description

Fire Retardant EPS Sandwich Panel Use For Clean Room Wall Panel

Polystyrene foam sandwich panel (EPS foam sandwich panels) is a light weight building board made from two outer layers of steel plates and a inner layer of polystyrene, which are then heated and pressurized by computer controlled color steel forming machine. It is an integration of load-bearing, heat insulation, fireproof, waterproof, and also finishing free. It is a widely used and reflects the civility of modern construction sites, especially in temporary housing at construction sites (such as offices, warehouses, fences, etc.,). It has obvious advantages, especially in quick installation, assembly and disassembly and recyclability, which can reduce temporary housing costs.

Fire resistance grade: Class B

Waterproof performance: Good

Features: Light weight, convenient installation, short construction period, low comprehensive cost, flexible usage, length of panels can be tailored according to engineering design requirements and installation and transportation conditions.

EPS Sandwich Panel Specificatoin:

Panel Thickness Wall Panel 50mm, 75mm, 100mm, 125mm, 150mm, 200mm
Roof panel 50mm, 75mm, 100mm, 125mm, 150mm
Panel width Wall Panel 950mm or 1150mm
Roof panel 960mm or 1050mm
Panel Length Wall / Roof no limited, but it's better no longer than 12m for transport limit.
External steel thickness 0.286mm, 0.326mm, 0376mm, 0.426mm, 0.476mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm
EPS foam density 8kg/m³, 10kg/m³, 12kg/m³, 14kg/m³, 16kg/m³, 18kg/m³, 20kg/m³

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

EPS Sandwich Panel Characteristic:

1. Light weight. Time-saving and labor-saving for installation

2. High strength

3. Low cost

4. Water proof

5. Easy to install and easy to clean

6. Good heat insulation performance. Thermal conductivity=0.032W/m.K

7. Sound proof

8. Moisture proof

EPS Sandwich Panel Applications:

1. Prefabricated House

2. Container house

3. Clean room

4. steel structure warehouse / workshop

5. Hospital

6. Building internal partation

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

Sandwich Panel Color Sheets

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

EPS sandwich panel Packing and Container Loading

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

DESUMAN COMPANY INFORMATIONS:

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

PPGI 125mm Fire Retardant EPS Clean Room Wall Panel

FAQ

1)What is the MOQ of EPS sandwich panel?

200 square meters could be a trail order, but considering freight fee, we suggest 20GP as a start, 40HQ is the most economical price.

2) Delivery time

As per order quantity. For EPS sandwich panel our production capacity is 6000 square meter per day.

3) payment terms

30% T/T deposit and balance should be paid before delivery.


4) If we wanna build a warehouse or house, could you help us do a budget?

Yes, it is our pleasure, types of end converge offered in one stop service.


5)Could we visit your factory before place the order?

Yes, welcome to visit our factory in any time.
