60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
Specifications
Brand Name :
TRUCKMAN AUTO
Model Number :
TKM360FBL
Certification :
SGS, BV ,CTN
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Price is negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
20-25 working days
Packaging Details :
Nude
Use :
Delivery the heavy machinery
Max payload :
60T
Axle :
FUWA/BPW Optional
Brake system :
WABCO,Double Line Air Brakes
Steel spring :
10/10/10 leaf spring suspension
Tire :
12.00R20 LINGLONG or TRIANGLE
Description

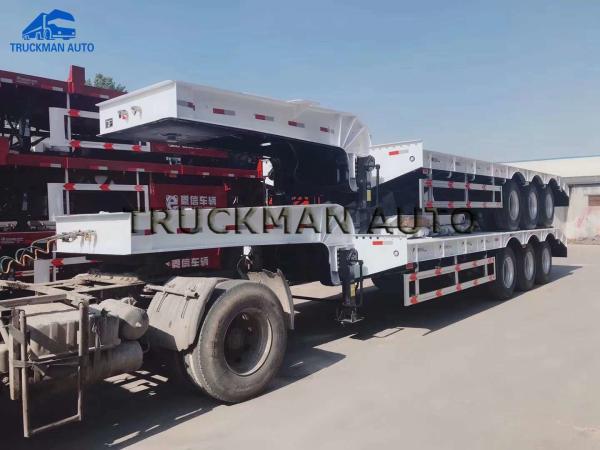

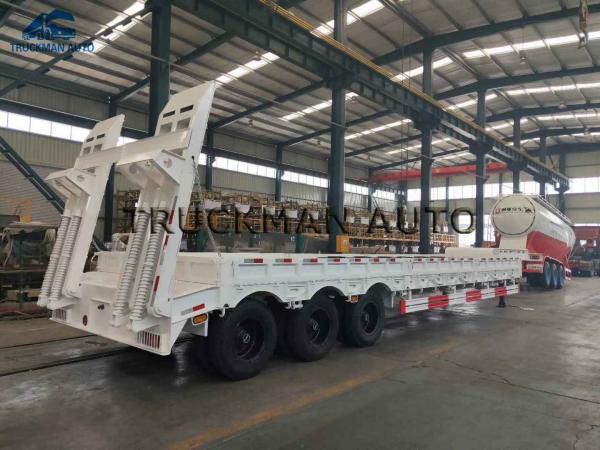

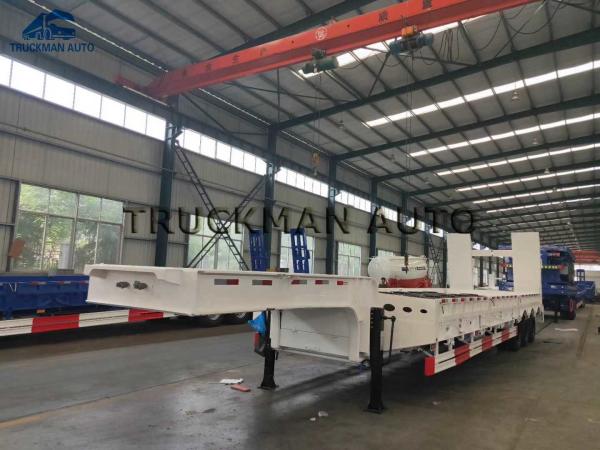

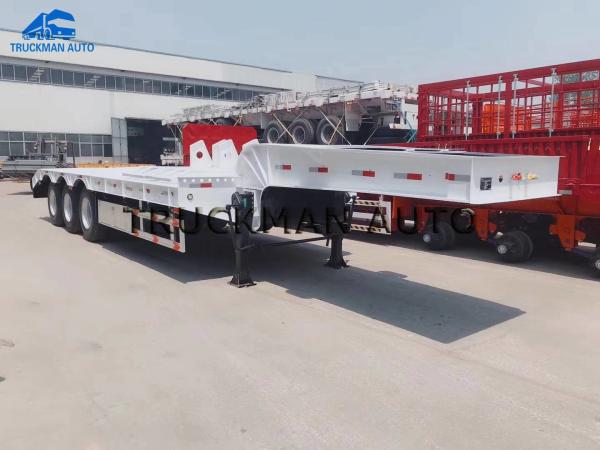

60 Tons Lowbed Low Bed Flat Bed Semi Trailer With 12.00R20 Tire

1. Low Bed Trailer Specification.

-. The series of semi-trailers are of the beam-type structure, and the stringers are straight or gooseneck.

The web height is welded from 400mm to 550mm manganese plate, the longitudinal beam is automatically

buried and welded, the frame is shot peened, the beam is inserted into the stringer and welded.


-. Widely used in different areas, mainly used in long-haul freight transport.


-. Reasonable structure, strong rigidity and strength, can be used to impact the bearing the strike.


-. Customized design to meet different customer needs.


-. Advanced Manufacturing Technology, Laser cutting, robot automatic welding, reliable quality

Assembly Name Composition Specifications
Chassis Main beam Q345B Steel;
The height of the beam is 500mm;
Upper plate;18mm; Middle plate is 12mm; Down plate is 20mm.
Cross beam 14# channel steel
Side beam 25# channel steel
King Pin 2”(50mm)or 3.5”(90mm)traction pin
Dimensions(L*W*H) 13000*3000*1550mm
Floor 5mm diamond steel plate
Ladder 60T Heavy duty Mechanical ladder
Suspension Suspension type Common mechanical
Steel Spring 2010/10/10
Running system Axle 3 Axle ,Fuwa Brand
Wheel Rim 9.0-22.5 steel wheel rim
Tire Spe:12R22.5; Number of Tire:12 pieces
Brake system Brake Chamber 6 big chamber
Brake Valve KTL Brand/WABCO
Brake system Dual Line Brake system
Other Tool box 2 set standard tool box
Light Tail lamp with turn signal ,brake light & reflector, side lamp etc.
Painting 1 coat of anticorrosive prime, twice coats of final paint.
Spare Tire Carriers 2 pieces
Leading gear 28T Manual operating, Heavy duty landing gear
Weight Tare Weight 12000Kg
Loading Capacity 60T
Axle weight load 13T

60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport

-2. FAQ

-. Terms of paymemt.

30% as the deposit by T/T, 70% balance before delivery.

-. What’s your MOQ?

One unit trailer or truck. But suggest two trailers one time to save the freight.

-. Whats your delivery time.

20-25 working days after received the deposit.

-. Can you accept the custom made?

Definitely! We could design the trailer according to your request.

-. What’s your warranty?

All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
