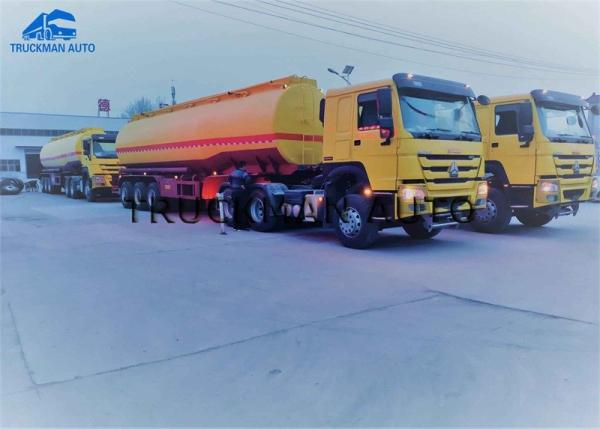

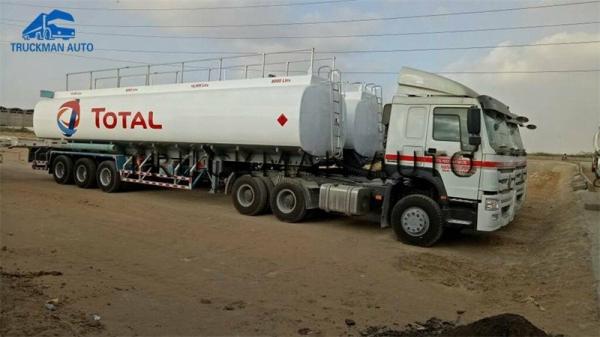

50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
Specifications
Brand Name :
TRUCKMAN AUTO
Model Number :
TKM350FTL
Certification :
CTN, BV etc
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Price is negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
20-25 days
Packaging Details :
Nude
Material :
Aluminum OR carbon steel
Compartments :
As customer need
Use :
Oil Tank Trailer
Max payload :
50T
Axle :
13 Ton Fuwa Brand
Landing gear :
Standard 28Ton
Description

3 Axles 50 Tons Oil Tank Transport Semi Trailers With The Fire Extinguisher

1. Oil Tank Trailer Main Specification.

-. Standard manhole with recovery & anti-flow.

-. Bottom valve and discharge valve (API and BALL type).

-. Loading capacity from 40 tons to 60 tons, with 1-9 comdepartment.

-. Jost brand support leg and fifth wheel confirm the trailer keep running.

Model Name 50000L fuel tanker trailer
Function fuel tanker trailer
Overall Dimension (L*W*H) 13000*2500*4000mm
Axle 3 axle 13T Fuwa Brand
Suspension system Mechanical Suspension
Steel Spring 10/10/10 leaf spring suspension
Tire 12R22.5 12pcs LINGLONG brand
Rims 9.0, 12 pieces
Discharge valve 4''disc valve ,3pcs
Discharge pipe 4''seamless steel tube ,3pcs
Spare Wheel Bracket 2
Landing gear Fuwa brand two-speed,manual operating
Kingpin 90mm or 50mm
Tool box one piece
Compartment 3, other number optional
Braking system RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Electrical system voltage:24V 2.Receptacle:7ways(7wire harness)
Tail lamp with turn signal, brake light&reflector,side lamp etc.
One set 6-core standard Cable
Accessories One standard tool box. fire extinguisher 2 pcs
Painting Sand blasting processing on rust cleaning before painting, One coat of paint Primer layer
Two coats of finish paint final coat

50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher

50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher

-2. FAQ

-. Terms of paymemt.

30% as the deposit by T/T, 70% balance before delivery.

-. What’s your MOQ?

One unit trailer or truck. But suggest two trailers one time to save the freight.

-. Whats your delivery time.

20-25 working days after received the deposit.

-. What is your terms of shipment?
The trailer could arrange shipment by ro-ro ship, bulk cargo vessel, container etc.

-. Can you accept the custom made?

Definitely! We could design the trailer according to your request.

-. What’s your warranty?

All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.

50 Tons Oil Transportation Trucks , Tank Semi Trailer With The Fire Extinguisher
