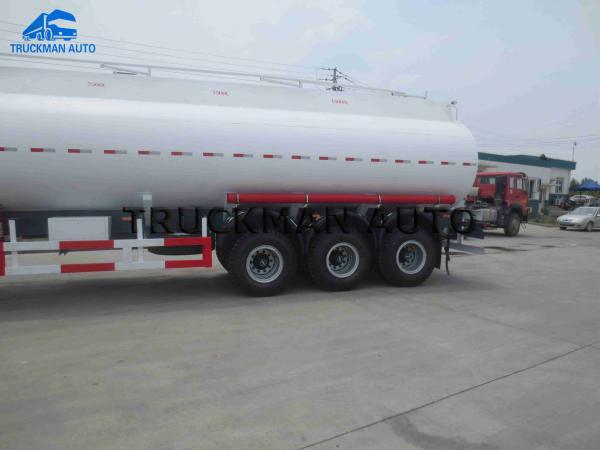

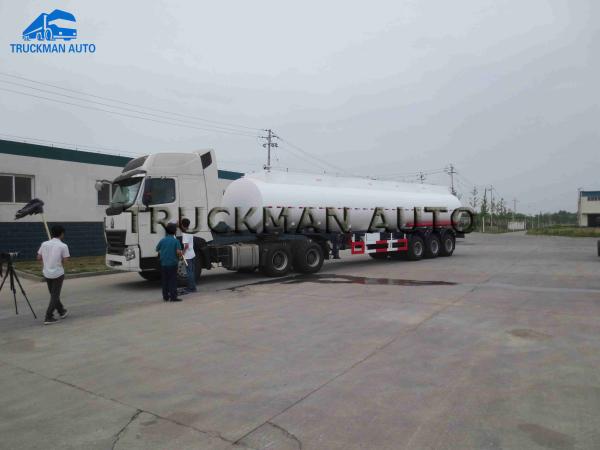

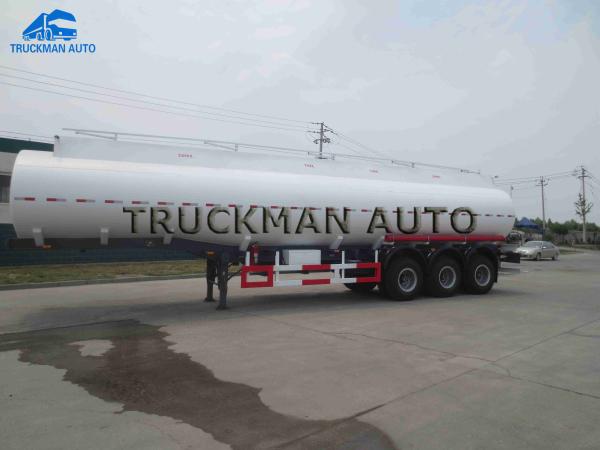

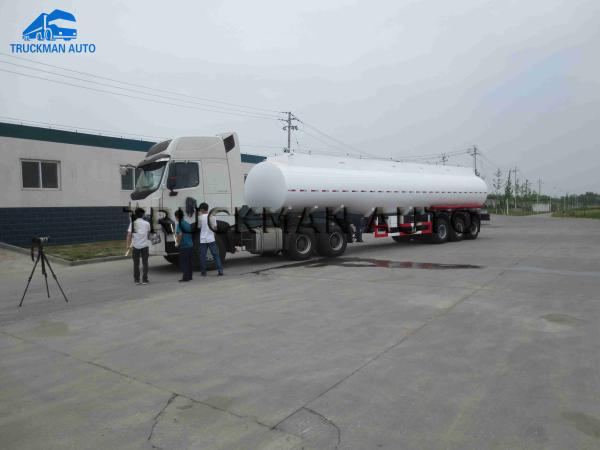

​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
Specifications
Brand Name :
TRUCKMAN
Model Number :
TKM50FTT
Certification :
SGS, BV, CTN
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Price is negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit Per Month
Delivery Time :
20-25 days
Packaging Details :
nude
Material :
carbon steel Q345 and Q235
Use :
Truck Trailer
Max payload :
50T
Suspension :
Leaf Spring Suspension
King pin :
2.00 or 3.5 inch
Landing gear :
JOST E100
Axle :
2/3/4 FUWA axle
Function :
Transport Fuel
Product name :
fuel tanker semi trailer
Description

​50000 Liter 50m3 Oil Tank Trailer High Capacity With 3-8 Comdepartment

. 50m3 Fuel Tank Semi Trailer Specification.

-. With 3-8 comdepartments

-. With sea valve, fire extinguisher

-. 1 discharge pipe which is 6,000mm in length x 2 pvc discharge pipe carries

-. Material: Q345 carbon or aluminum

Product Tri-axle 45,000 liters aluminum fuel tanker trailer
Weight & Size:
Loading capacity: 45,000 Liters
Overall L*W*H: 11,600*2,500*3,800 mm
Frame:
Material of main beam: CIMC specified aluminum alloy
Tanker Body:
Tanker body: Material :Aluminumalloy 5182, thickness:6mm, end plate:6mm
Manhole: 6 pcs, aluminum alloy manhole
Compartment: 6 pcs (the volume of each compartment is customized)
Discharge hole: 3 inch discharge hole with API valve, 6 pcs
Bottom valve: Equipped
Handrail: Collapsible type
Top walking way: Anti-skidding type
Running Gear:
Axle: 3x13 tons axles , fuwa brand
Tire: 12R22.5 tubeless tires with rim , 12 sets ,linglong brand
Suspension: Heavy duty mechanical suspension
Landing gear: Fuwa landing gear
Kingpin: JOST 2 inch bolted type
Brake system:
Emergency relay valve Wabco
Air tanker: 2*46L
Brake chamber: Six-double structure brake chamber
ABS: Equipped
Electrical System:
Receptacle: 7-way socket standard
Voltage: 24 Volt
Lights: LED
Accessories: 1 pcs tool box + 1 spare tire carrier+ 1 discharge pipe which is 6,000mm in length+ 2 pvc discharge pipe carries +6 joints& dust covers + 2 fire extinguishers+ one rear ladder+ one ladder for the inner side inspection +1 shaft sleeve, 1 spare tire shake handle, 1 tire wrench

​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment

​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment

-2. About The TRUCKMAN.

​50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment

JINAN TRUCKMAN AUTOMOBILE CO.,LTD. was established in year 2010,that mainly focus on

TRUCKMAN brand All series new semi trailers, Full Trailers such as Container trailer, Lowbed trailer, Dump trailer,

Tank trailer, Fence Trailer And some China Brand Tractor truck head, export business. The goods can meet all certificates

and different work requirements, such as BV, SGS, CO, CIQ, GCC, SONCAP, SASO, CCC, FORM E, ADR certificate etc,

also with reasonable price. With years development, our business extended to more than 80 more countries and regions

in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia,

Laos, Myanmar even Latin America countries like Chile, Peru and Australia, America, Europe etc.

We take “Quality, Honesty, Responsibility” as our enterprise core value to make you best cooperation experience.

TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission

with professional services, and are committed to becoming a world-class enterprise with international characteristics.
