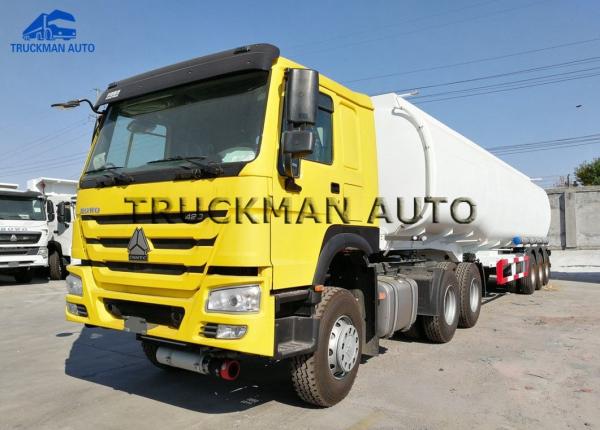

Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles
Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles
Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles
Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles
Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles
Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles
Specifications
Brand Name :
TRUCKMAN AUTO
Model Number :
TKNW2910
Certification :
SGS, BV, CTN
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Price is negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 Unit / Per Month
Delivery Time :
15-20 working days
Packaging Details :
nude
Material :
Aluminum or Carbon Steel
Size :
12500*2500*1550mm
Max payload :
50T
Suspension :
Mechanical/Air bag
King pin :
3.5" JOST
Landing gear :
JOST E100
Description

50000 Liter 50m3 5 Comdepartment Carbon Steel Fuel Oil Tank Trailer With Fuwa Axles

1. Fuel Tank Trailer Main Information.

-. Tank material: Aluminum alloy or carbon steel(tank 5mm, head 6mm)
-. Sub warehouse
-. Main valve: built in valve
-. Artesian mouth: after the end of a 3 inch artesian mouth, with Aluminum

Tank Body
Shape Optional ( Round or Suare or TV type )
Dimension 12000mm*2490mm*3990mm ( Exact size depends on the final design)
Tare weight About 8000KGS-12800KGS
Total Volume(m3) 25m³-60 m³ (25000L-60000L )
Tanker Body Material 5mm or 6mm/ Q235 carbon steel
End Plate 5mm or 6mm /Q235 carbon steel
Manhole Cover Cabon steel or Aluminum alloy API manhole cover, 500mm
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inch
Compartments Optional
Discharging Pipe 4” rubber hose, 2 pcs, 6m/each
Cat Walk With (Common model or special design)
Chassis
Main Beams Weldding design or Special design I beam, connected by bolts and nuts
Q345 carbon steel material
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing Gear JOST (D200T)or FUWA BRAND 28T
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension/Germany or America type /air suspension
Leaf Spring 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 /without
Pneumatic Braking System WABCO RE 6 relay valve; Spring brake chamber(TKL brand); 2 pieces of 45L air tanks.
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
Tire /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS Optional
Water tanker system Optional
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box

Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles

Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles

-2. About Us.

Carbon Steel Semi Trailer Fuel Tank , Oil Truck Tanker With Fuwa Axles

JINAN TRUCKMAN AUTOMOBILE CO.,LTD. was established in year 2010,that mainly focus on TRUCKMAN brand

All series new semi trailers, Full Trailers such as Container trailer, Lowbed trailer, Dump trailer, Tank trailer, Fence Trailer

And some China Brand Tractor truck head, export business. The goods can meet all certificates and different work requirements,

such as BV, SGS, CO, CIQ, GCC, SONCAP, SASO, CCC, FORM E, ADR certificate etc, also with reasonable price. With years

development, our business extended to more than 80 more countries and regions in the world like Nigeria, Angola, Ghana, Tanzania,

Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin America countries like Chile, Peru and Australia, America, Europe etc. We take “Quality, Honesty, Responsibility” as our enterprise core value to make you best cooperation

experience. TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission with

professional services, and are committed to becoming a world-class enterprise with international characteristics.
