Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
Specifications
Brand Name :
Jingjie
Model Number :
GVT
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
10sets per month
Delivery Time :
30 working days after received your payment
Packaging Details :
Packed in wooden case for outer packing
Certification :
ISO/CE
Product material :
Brass
Product :
Rod-wire
Product diameters :
50x5mm
Type :
Horizontal
Length :
6000mm
Furnace type :
Melting and holding combined furnace
Description


Brass 100mm Rod Copper Continuous Casting Machine Horizontal Type


Ⅰ. Specifications:

1. Types of casting specifications Brass



1.1 Rod-wire billets (round-shaped)
a. Diameter range Φ50x5mm
b. Number of production lines
c. 4 lines(according to section conditions)



Ⅱ.Process:

Main equipments of production line
melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
* 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;

* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;

* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.


Ⅲ. Equipment Components List of Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1
2 Melting furnace set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (50x5) set 2 Including graphite mold
7 Dragger (4KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder
(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)
14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.


Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm LengthBrass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length

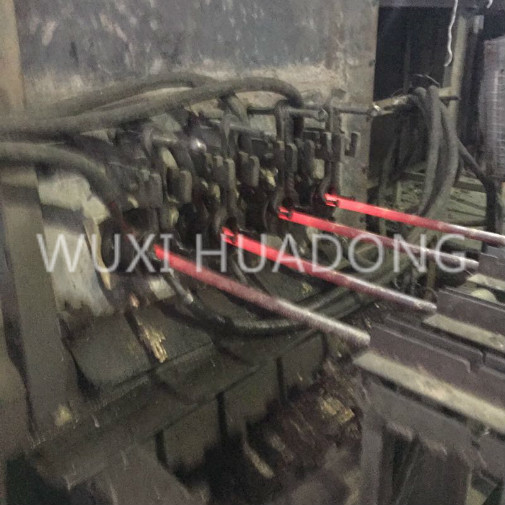

Ⅵ. Pictures of Red Copper Horizontal Continuous Casting Machine
Brass Pipe 50x5mm Horizontal Copper Continuous Casting Machine 6000mm Length
