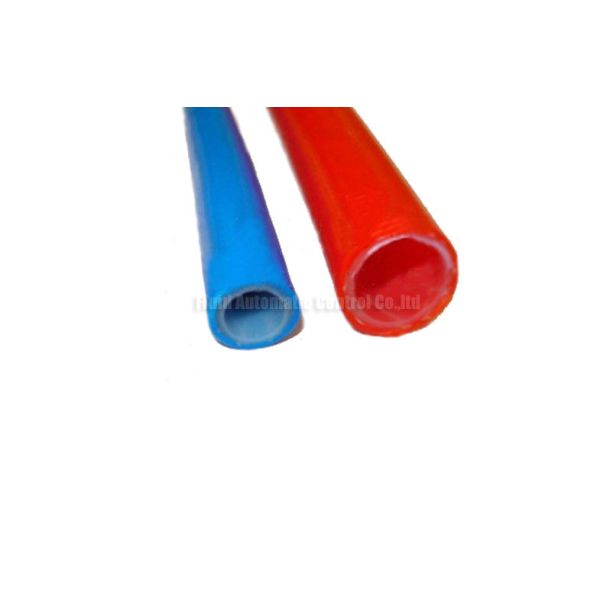

3MPa Highp Pressure O.D 3/8 Polyamide Pneumatic Air Hose , Steel Wire Reinforced Nylon Tube
3MPa Highp Pressure O.D 3/8 Polyamide Pneumatic Air Hose , Steel Wire Reinforced Nylon Tube
Specifications
Place of Origin :
Ningbo China(Mainland)
Brand Name :
FLUIDAC or OEM
Certification :
ISO9001
Model Number :
PAR1/2”-R
MOQ :
5 piece
Price :
USD20--
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Delivery Time :
Within 20 days after receiving payment or deposit
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :
80000 Meters Per month
Applications :
air lines,Chemicals,dispensing equipment
Colours :
Red|Blue
Material :
Polyamide PA6 PA12
Product material :
Steel Wire Reinforced Hose
Feature :
Non-toxic,tastless
Working pressure :
3.0MPa
Working temperature :
-40~100℃
Outer Dia. Metric size :
3/8”,1/2”,3/4”,1/2”
Description

3MPa High Pressure O.D 3/8" Polyamide Pneumatic Air Hose , Steel Wire Reinforced Nylon Tube

Polyamide Nylon PA6 PA12 material Polyester or steel wire reinforced tube O.D 3/8”,1/2”,5/8”,3/4”e.g PAR1/2”-R

Quick Detail:

* PAR Series Polyamide PA6 PA12 material Reinforced tube

* working temperature:-40~100℃

* working pressure 3.0MPa

* tuter Dia. Inch size 3/8”,1/2”,3/4”,1/2”

* conform to ROHS environment protection requirement

* good flexibility for piping working

* high Pressure-resistance,wear-resistance

* resistance toSolvents,alkalizes.oils,greases,potroleum,fungus,molds

* resistance to dilute mineral and organic acids.

* heat and light stabilized

* wide applicable range of tempeature

* various tube colours for option make it easier to distinguish pipes one another

* high tensile,light weight,full flow,low distensibility

* non-toxic,tastless

Applications:

PAR Seres Nylon Reinforced tube used widely in air conditioning,air lines,Chemicals, compressed air, coolant,dispensing equipment, Fuel&Oil, Grease&Lubrication lines,Hydraulics, Instrumentation, laboratory,paint supply,Refrigeration etc

PAR series Nylon reinforced tube apply to automotive hydraulic brake and control system,dynamical redirection system,high pressure painting system,air condition system.

3MPa Highp Pressure O.D 3/8

Specifications:

ORDERING CODE

PAR

3/8

BU

Type

O.D SIZE( INCH )

Colours

PAR:Polyamide Nylon Reinforced high pressure tube

3/8"

R:RED

1/2"

BU:BLUE

5/8"

T: TRANSPARENT

3/4"

B:BLACK

SPECIFICATION

1,Material: Polyamide inside and outside,polyester line middle layer

2,Working Fluids:Air,water,oil

3,Working Pressure:3.0MPa

4,Working Temperature:-40~100℃

MODEL

O.D

I.D

THICKNESS

MIN.BURSTING PRESSURE

MIN.RADIUS

IN

mm

IN

mm

IN

mm

PSI

KPA

IN

mm

PAR3/8"

3/8"

9.53

0.251

6.38

0.062

1.57

1,400

9700

1.5

38.1

PAR1/2"

1/2"

12.7

0.376

9.55

0.062

1.57

950

6,600

2

50.8

PAR5/8"

5/8"

15.88

0.441

11.2

0.092

2.34

900

6,200

2.5

63.5

PAR3/4"

3/4"

19.05

0.566

14.38

0.092

2.34

800

5,500

3

76.2

Polyamide Tube,PA reinforced hose ,brake pipe
