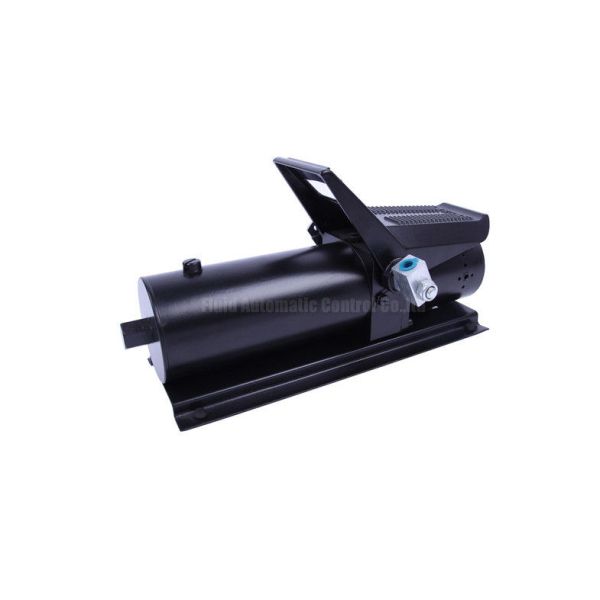

10000psi Single Acting Air Hydraulic Pump , Low Noise Foot Air Pump

10000PSI operating pressure air driven Air hydraulic pump for rams,presses,hydraulic puller with metal reservoir,single acting type,oil usable 0.69L,oil outlet port 1/4-18NPT model no.APH1101

Quick Detail:

* APH1101 Air hydraulic pump

* Air driven type,easily to operate by hand of foot

* single acting for single acting cylinders

* Operating pressure up to 10000PSI(70Mpa)

* Rugged one-piece construction reduce air consumption

* Metal reservoir heavy duty,durable with long service life

* Aluminum casting air motor increase service life and reduce air consumption effective

* Low noise provide quiet working environment

* Low starting air pressure

* With automatic relief valve for overload protection

* Swivel connection simplifies hydraulic connection and pump operation

* Compact design,light in weight,portable for any job site

Applications:

This hydraulic air pump is designed to operate pneumatically. It is an ideal power source for various body, frame and alignment applications and can be used with different ram kits, shop presses and hydraulic pullers,with compact design,portable to any job site and can be take place of manul pumps.

Specifications:

Features:

1. Rugged one-piece construction reduce air consumption and operating costs
2. Beats the leading competitors in oil flow delivery by as much as two to one, doing more work in less time.
3. Portable to any job site equipped with compressed air. Takes the place of manual pumps. Less operator fatigue, more productivity.
4. Plenty of oil to power cylinders up to 55 ton capacity.
5. Compact, light-weight design for easy handling and storage.
6. Internal pressure relief valve for over-load protection of system components.
7. Metal housing is extremely heavy duty, these pumps are durable and long lasting.
8. Two-stage release mechanism for fast ram return while reducing hydraulic shock. Operates easily by hand or foot.
9. All-metal air motor for reliability and easy maintenance. Long life expectency and reduce air consumption
10. Operates at up to 10,000 psi (700 bar).
11. Air nipple and hydraulic adapter included
12. Hydraulic hose can be attached as accessories
13. Low noise 85dBA provide a quiet working environment
14. Swivel connection simplifies hydraulic connection and pump operation
15. Mounting type horizontal
