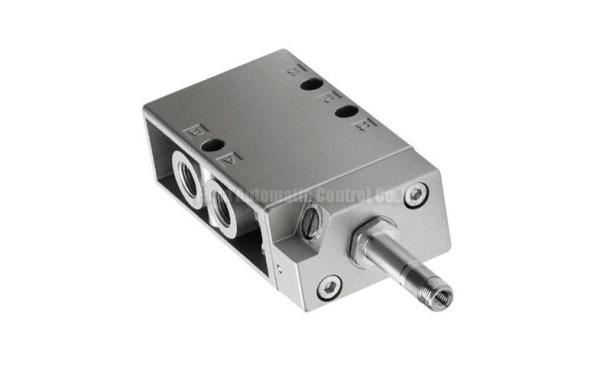

MFH Tiger Solenoid Valve Two Position Five Way Festo Standard G1/4 , G1/8
MFH Tiger Solenoid Valve Two Position Five Way Festo Standard G1/4 , G1/8
Specifications
Place of Origin :
Ningbo China(Mainland)
Brand Name :
FLUIDAC or OEM
Certification :
ISO9001
Model Number :
MFH-5-1/4
MOQ :
1 piece
Price :
USD20--
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Delivery Time :
Within 20 days after receiving payment or deposit
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :
20000 Pieces Per month
interchangeable :
Festo
Series :
MFH series
Type :
two position five way
Coil Voltage :
12VDC|24VAC|24VDC|110VAC|220VAC
Material :
Aluminum
Motion Pattern :
Inner Pilot Operated
Product name :
Tiger Valve
Rated flow :
1300L/Min
Description

MFH Tiger Solenoid Valve Two Position Five Way Festo Standard G1/4 , G1/8

Namur VDI/VDE 3845 standard tiger valve size 1/8 and 1/4 two position five way large flow rate pilot operated 1300L/Min e.g MFH-5-1/4 Festo equivalent




Quick Detail:


* MFH series tiger valve classic type Festo equivalent
* Body Material Aluminum Die-casting

*G1/8 And G1/4" Connection Size
* Pilot Operated,Inner Pilot type
* Large Aperture,big flow rate,Rated flow 1300L/Min
* Applicable for big bore size and long stroke cylinder
* Din connector and Socket type connecting for selectable
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil
* Heavy duty long service life



Applications:



MFH series tiger valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion
Especially use for the heavy duty working condition,meet the demand of big bore size and long stroke cylinder which request big flow



Specifications:


ORDERING CODE

MFH

5

1/4

AC220V

S

Type

Function Type

Port Size

Voltage

Electricity Connect Form

MFH:Tiger Solenoid valve Classic type Festo Standard

5:Two Position Five way Single Coil

1/8:G1/8

AC220V:220VAC

Blank:Standard Connector

AC110V:110VAC

LD:Brown Din Connector with Light Indicator

1/4:G1/4

DC24V:24VDC

LD1:White Din Connector With Light Indicator

AC24V:24VAC

S:Socket type

DC12V:12VDC


SPECIFICATION

MODEL

MFH-5-1/8

MFH-5-1/4

Working Fluid

Filtered Compressed Air

Position And Way Numbers

Two Position-Five Way

Rated Flow

600L/Min(CV=1.32)

1300L/Min(CV=1.32)

Working Pressure

0.2~0.8MPa

Ambient&Fluid Temp

-10~60℃

Motion Pattern

Inner Pilot Operated Mechanical Spring return

Manual Override

Locked type 180º Switching for positioning Torque 1nm

Mounting model

Through Holes

Body Material

Aluminum Die-casting

Seals Material

NBR

Insulation&Protection Class

F Class IP65

Voltage Tolerance

±10%

Power consumption

Holding: AC:5.5VA DC:4.8W


MFH Tiger Solenoid Valve Two Position Five Way Festo Standard G1/4 , G1/8

Model NO

B1

B2

D1

H1

H2

H3

H4

H5

H6

L1

L2

MFH-5-1/8

30

5

G1/8

128

143

12

24

28

94

50

74

MFH-5-1/4

30

5

G1/4

128

143

12

24

28

94

50

74


Pneumatic valve, Tiger solenoid valve,Pilot Operated solenoid valve
