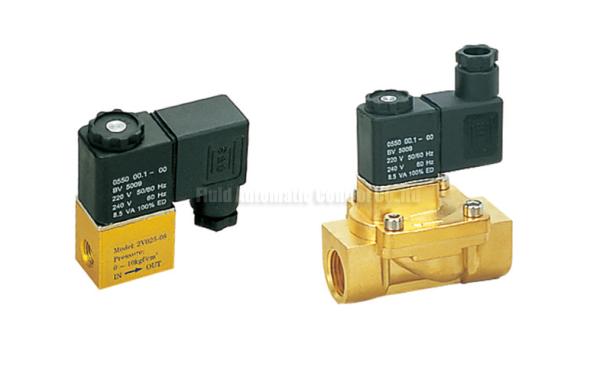

2V Series Brass 2 Position 2 Way Pneumatic Solenoid Valve G1/4,Orifice 2.5mm
2V Series Brass 2 Position 2 Way Pneumatic Solenoid Valve G1/4,Orifice 2.5mm
Specifications
Place of Origin :
Ningbo China(Mainland)
Brand Name :
FLUIDAC or OEM
Certification :
ISO9001
Model Number :
2V130-15-AC110V
MOQ :
5 piece
Price :
USD5--
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Delivery Time :
Within 20 days after receiving payment or deposit
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :
10000 Pieces Per month
Port Size :
G1/8”~G1”
Orifice Size :
2.5mm,13mm,25mm
Series :
2V Series
Product Name :
2 Way Pneumatic Solenoid Valve
Body Material :
Brass
Voltage :
AC220V|AC380V|DC12V|DC24V
Type :
Two Position Two Way
Working Medium :
Air|Oil|Water
Motion Pattern :
Direct Drive Type,Guide Type
Description

2V Series Brass 2 Position 2 Way Pneumatic Solenoid Valve G1/4",Orifice 2.5mm

Orifice size 2.5mm,13mm,25mm 2V series solenoid valve direct acting body material brass or aluminum port size G1/8”~G1”

Quick Detail:



* 2V Series solenoid valve flow aperture size 2.5mm,13mm,25mm
* Two position two way directly acting
* Body material brass or Aluminum(2V025) for option
* Port Size G1/8”,G1/4”,G3/8”,G1/2”,G3/4”,G1”
* Seal NBR,EPDM,VITON for option
* Fast respond,low noise,low consumption
* Stable design,long serive life



Applications:



2V series two position two way solenoid acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.
2V series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.



Specifications:


ORDERING CODE

2V

170

15

V

AC220V

Type

Aperture Flow Rate

Port size

Seal Material

Voltage

2V:2V Series two position two way solenoid valve

025:2.5mm

06:G1/8"

Blank:NBR

DC12V

08:G1/4"

DC24V

130:13mm

10:G3/8"

E:EPDM

AC24V

15:G1/2"

AC110V

250:25mm

20:G3/4"

V:VITON

AC220V

25:G1"

AC380V

Model

2V025-06

2V025-08

2V130-10

2V130-15

2V250-20

2V250-25

Medium Motion

Air,Water,Oil

Pattern

Direct Drive Type

Guide Type

Type

Normal Close Type

Aperture of Flow Rate(mm)

2.5

13

25

CV Value

0.23

6.2

23

Port Size

G1/8"

G1/4"

G3/8"

G1/2"

G3/4"

G1"

Operation Fluid Viscosity

20 CST (Below)

Working-pressure

Air,Water,Oil 0.05~0.7MPa

Max. Pressure Resistance

1.6

1

Operating Temperature Range

-10~+80

Voltage Range

10%

Protect Class

IP65

Power Consumption

AC:4.5VA DC:3W

Insulation

F Class

Material of Body

Aluminum or Brass (Nickel coated)

Brass

Material of Oil Seal

NBR or VITON

NBR or VITON

Shortest Excitation Time

0.05 Second


2V Series Brass 2 Position 2 Way Pneumatic Solenoid Valve G1/4
