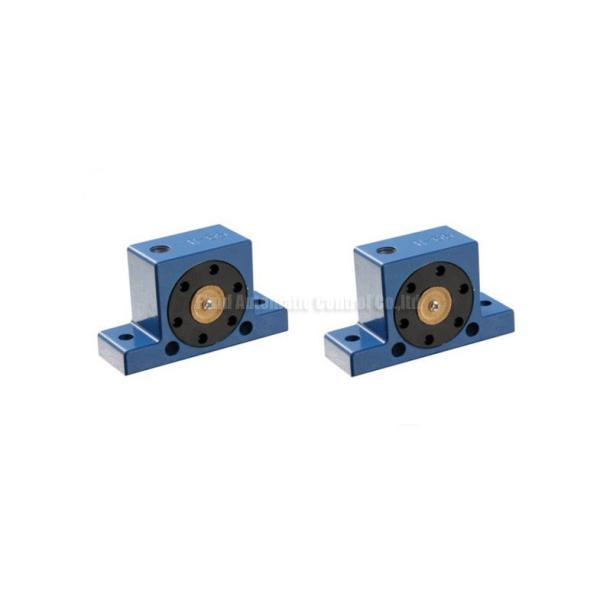

Pneumatic Roller Vibrator 10100 - 36100 Cycles/Minute Adjustable For Packaging Filling
Pneumatic Roller Vibrator 10100 - 36100 Cycles/Minute Adjustable For Packaging Filling
Specifications
Place of Origin :
Ningbo China(Mainland)
Brand Name :
FLUIDAC or OEM
Certification :
ISO9001
Model Number :
R-50
MOQ :
5 piece
Price :
USD20--
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Delivery Time :
Within 20 days after receiving payment or deposit
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :
5000 Pieces Per month
Body material :
Extruded Aluminium Alloy
Centrifugal force :
810~8950 N
Frequence :
0100~36100cycles/Minute
Inlet and exhuasting port size :
NPT|1/8”~3/8”G
Low noise :
75~100dBA
Product Name :
pneumatic roller vibrator
Description

Pneumatic Roller Vibrator 10100 - 36100 Cycles/Minute Adjustable For Packaging Filling

R Series pneumatic roller vibrator with body material aluminum alloy, two direction inlet ports for option port size 1/8”~3/8”G or NPT,working frequency 10100~36100cycles/Minute,centrifugal force 810~8950 N e.g R-50

Quick Detail:

* R Series Pneumatic roller vibrator

* Body material Extruded Aluminium Alloy

* With horizontal or vertical inlet ports for application option

* Port size 1/8”~3/8” G or NPT thread

* Working frequence and centrifugal force can be adjustable by air pressure

* Working frequence 10100~36100 cycles/Minute

* Centrifugal force 810~8950N

* Low noise 75~100dBA

* High temperature-resistance up to 140℃

* Immediately start,stop,fast response

* Easy to operate,safety application

* Small size,light in weight

Applications:

R series Pneumatic roller vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc

Pneumatic Roller Vibrator 10100 - 36100 Cycles/Minute Adjustable For Packaging Filling

Specifications:

This small pneumatic roller vibrator design in simple and still gives strong centrifugal force,Housing material extruded aluminum alloy,fefined steel roller inside scrolling,this steel roller with the two special high-impact plastic cover positioning.

The housing has two horizontal and two vertical holes,easy for installation.

Air from one of the horizontal or vertical port intake,another inlet port can be blocked with a nipple.

MODEL

Frequency V.P.M

Centrifugal force

Air consumption L/M

0.2MPa

0.4MPa

0.6MPa

0.2MPa

0.4MPa

0.6MPa

0.2MPa

0.4MPa

0.6MPa

N

N

N

Ltr

Ltr

Ltr

R-50

25100

35100

36100

1170

2950

4250

150

148

198

R-65

19100

21100

26100

2750

4850

6150

210

305

410

R-80

15600

18600

19100

3100

6120

7400

450

435

575

R-100

11100

14100

16100

3760

6700

8950

560

555

735

R-120

10100

11600

12600

810

1010

1251

735

735

975

Pneumatic Roller Vibrator 10100 - 36100 Cycles/Minute Adjustable For Packaging Filling

MODEL

A

Width

C

D

E

F

G

H

Weight

mm

mm

mm

mm

mm

mm

mm

Thread BSP

kg

R-50

50

29

86

68

12

7

40

G1/8"

0.245

R-65

62

37

113

90

16

9

50

G1/4"

0.54

R-80

80

43

128

104

16

9

60

G1/4"

0.955

R-100

100

52

160

130

20

11

80

G3/8"

1.815

R-120

120

77

194

152

24

17

　

G3/8"

4.265

Pneumatic vibrator,Roller vibrator
