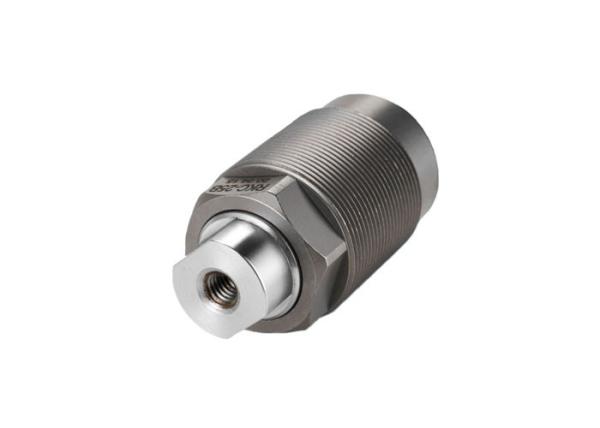

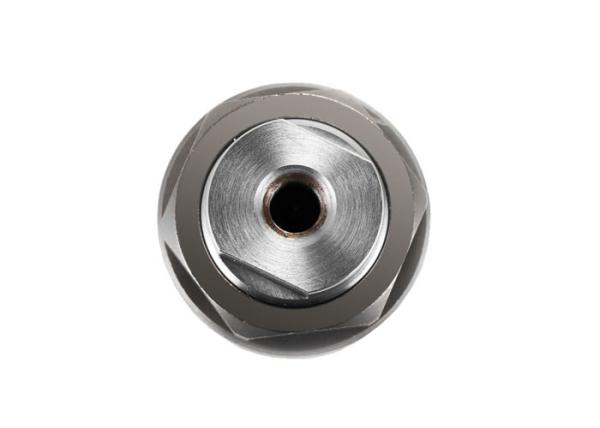

Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type
Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type
Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type
Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type
Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type
Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type
Specifications
Brand Name :
FLUIDAC or OEM
Model Number :
RKC-25B
Place of Origin :
Ningbo China(Mainland)
MOQ :
5PCS
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability :
10000PCS per Month
Delivery Time :
Within 20 days after receiving payment or deposit
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Material :
Carbon steel
Dia of piston (mm) :
φ12~25mm
Range of pressure (kg/cm2) :
20-250kg/cm2
Acting Type :
Single acting
Fluid :
Filtered oil
Type :
Int. thread type
Description

RKC Thread-Body Single Acting Hydraulic Cylinder Rod Size φ12~25mm Pmax.35MPa Int.Type

e.g: RKC-25B

Details:

  • Using imported oil seal to make the minimizes oil leakage.
  • No leakage during high pressure clamping for a long time.
  • Compact design and easy to install
  • The angle degree between the cylinder and workplace could not be larger than 10° when installing.
  • The bottom of cylinder should be placed a leak-proof gasket.
  • This type of cylinder is used in ejecting with return by spring, can not be used in pulling in.

Ordering Code:

RKC 25 A/B
Series Dia.of piston
φ12mm
φ16mm
φ20mm
φ25mm		 Type:
A:Circular type
B: Int.thread type

Specification:

Type RKC-12B RKC-16B RKC-20B RKC-25B
Dia of piston (mm) φ12 φ16 φ20 φ25
Total Stroke (mm) 10 12 15 16
Fluid Filtered oil
Range of pressure (kg/cm2) 20-250kg/cm2
Acting type Single acting
Theoretical clamping 200(kg) 400(kg) 620(kg) 980(kg)

Dimension:

Single Acting Hydraulic Pneumatic Air Cylinder Rod 25mm 35MPa Thread Body Type

(Unit:mm)

Model RKC-12B RKC-16B RKC-20B RKC-25B
A 38 46.5 57.5 58.5
B 36 44.5 54 55
C 7 8 8 11
D M22*1.5 M26*1.5 M30*1.5 M38*1.5
F 12 16 20 25
G 16 20 24 28
H 6 7 7 10
N M6*1.0 M6*1.0 M8*1.25 M8*1.25
K 3 3 3 3
ST 10 12 15 16
