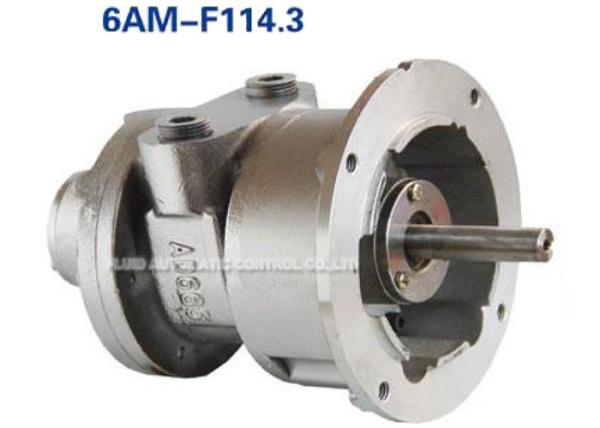

Flange Mounting 3000RPM Rotary Vane Type Pneumatic Air Motor
Flange Mounting 3000RPM Rotary Vane Type Pneumatic Air Motor
Specifications
Brand Name :
FLUIDAC or OEM
Model Number :
6AM-F114.3
Place of Origin :
Ningbo China(Mainland)
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :
200PCS/Month
Delivery Time :
Within 20 days after receiving payment or deposit
Packaging Details :
Boxes, Cartons,Wooden cases,Pallets
Type :
Vane pneumatic motor
Housing Material :
Cast Iron and Aluminum
RPM :
3000
Max.Air Pressure :
100psi
Working Medium :
Compressed Air
Description

Flange Mounting 3000RPM Rotary Compressor Vane-Type Air Motor Pneumatic Motor

Vane-type Air Motor4HP,3000RPM,Casting Iron and Aluminum Housing material Rotary Compressor Pneumatic Motor

Quik details:

  • Use compressed air as power, safe explosion-proof, no static ,no sparks
  • The rotate speed of the motor is adjusted by the pressure and flow
  • No overload danger , excessive load will not damage the motor and the temperature will not rise.antly
  • Self-sealing vanes and instantly reversible
  • Can work continuously for a long time with full load
  • Convenient operation, simple maintenance and repair.

Specifications:

Model Operation Data Maximum Torque
Power Torque Rotate Speed Air Consumption Rotate Speed Torque
hp kW Nm Lb.in rpm m3/h cfm rpm Nm lb.in
2AM 0.93 0.68 2.20 19.50 3000 49.5 30 350 3.05 26.10
4AM 1.70 1.30 4.10 36.00 3000 132.5 78 300 6.3 56.00
6AM 4.00 3.00 10.00 84.00 3000 228 128 300 13 115.00

Flange Mounting 3000RPM Rotary Vane Type Pneumatic Air Motor

Application:

With compressed air as medium and simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It can be worked in tough environment which is damp, high temperature, excessive dust or other harsh working environment. So it is widely used as power in mine rock drilling or petrochemical , automotive painting coating high dusty, flammable or explosive applications.
