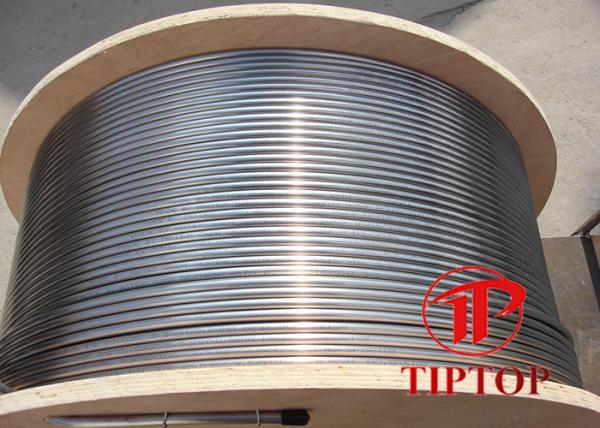

1/4 Duplex 2205 ASTM A789 Ss Stainless Steel Coiled Tubing
1/4 Duplex 2205 ASTM A789 Ss Stainless Steel Coiled Tubing
1/4 Duplex 2205 ASTM A789 Ss Stainless Steel Coiled Tubing
1/4 Duplex 2205 ASTM A789 Ss Stainless Steel Coiled Tubing
Specifications
Brand Name :
Tiptop
Model Number :
2205
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 reel
Price :
USD/EURO/RMB
Payment Terms :
L/C, T/T,
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
ONE WEEL
Packaging Details :
WOODEN REEL +WOODEN CASE
Material :
Duplex 2205
Technique :
Cold drawn
Standard :
ASTM A789
Processing type :
Seamless
OD :
1/4
Thickness :
0.065
Description

1 / 4 Duplex 2205 Stainless Steel Coiled Tubing Control Lines ASTM A789

Tiptop offers a variety of duplex stainless steel, super duplex stainless steel welded and seamless tubing, depending upon the properties the tubing is required to exhibit. Other alloys and sizes are also available upon request. Duplex stainless steels (named for their austenite and ferrite compositions), has greater yield strength than austenitic stainless steel.

Our control lines are supplied on spools to exact length requirements. As per the clients’ detailed request, it is pressure tested hydraulically, purged with clean oil, and sealed on both ends prior to shipping.

Control system fluids must be compatible with the environments and operating temperatures of the control line.

Control line encapsulation also is available, where requested, to provide additional crush and abrasion resistance during installation. The encapsulation material should be matched for compatibilty with well fluids and temperature requirements.

Standard: ASTM-A 789 Standard specification for seamless and welded ferretic/austenitic stainless steel tubing for general service. This specification covers various grades of duplex stainless steels.

Size Chart

OD

Wall
(inch)

Materials

Standard

Working Pressure
(MPa)

Length

1/8"

0.02,0.028,0.035

Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)

ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704

60-120 Mpa

Customized

3/16"

0.02,0.028,0.035,0.049

1/4"

0.02,0.028,0.035,0.049,0.065.0.083

5/16"

3/8"

1/2"

* OD: Up to 1 inch

Chemical Composition

Chemical Composition,%

Standard

ASTM A269

ASTM A789

ASTM B704

Material

SS 304

SS 304L

SS 316

SS 316L

Duplex 2205

Super Duplex 2507

Incoloy 625

Incoloy 825

UNS

S30400

S30403

S31600

S31603

S32205

S32750

N06625

N08825

C

0.08

0.035

0.08

0.035

0.03

0.03

0.1

0.05

Mn

2

2

2

2

2

1.2

0.5

1

P

0.045

0.045

0.045

0.045

0.03

0.035

0.015

...

S

0.03

0.03

0.03

0.03

0.02

0.02

0.015

0.03

Si

1

1

1

1

1

0.8

0.5

0.5

Ni

8.0-11.0

8.0-12.0

10.0-14.0

10.0-15.0

4.5-6.5

6.0-8.0

min 58.0

38.0-46.0

Cr

18.0-20.0

18.0-20.0

16.0-18.0

16.0-18.0

22.0-23.0

24.0-26.0

20.0-23.0

19.5-23.5

Mo

...

...

2.00-3.00

2.00-3.00

3.0-3.5

3.0-3.5

8.0-10.0

2.5-3.5

N

...

...

...

...

0.14-0.20

0.24-0.32

...

...

Cu

...

...

...

...

...

0.5

...

1.5-3.0

Fe

5

min 22.0

Al

0.4

0.2

Ti

0.4

0.6-1.2

Cb+Ta

3.15-4.15

...
