ASTM A269 1/4 3/8 316L Stainless Steel Coil Tube
ASTM A269 1/4 3/8 316L Stainless Steel Coil Tube
ASTM A269 1/4 3/8 316L Stainless Steel Coil Tube
ASTM A269 1/4 3/8 316L Stainless Steel Coil Tube
Specifications
Brand Name :
TIPTOP
Model Number :
316
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 tons per month
Delivery Time :
10 days
Packaging Details :

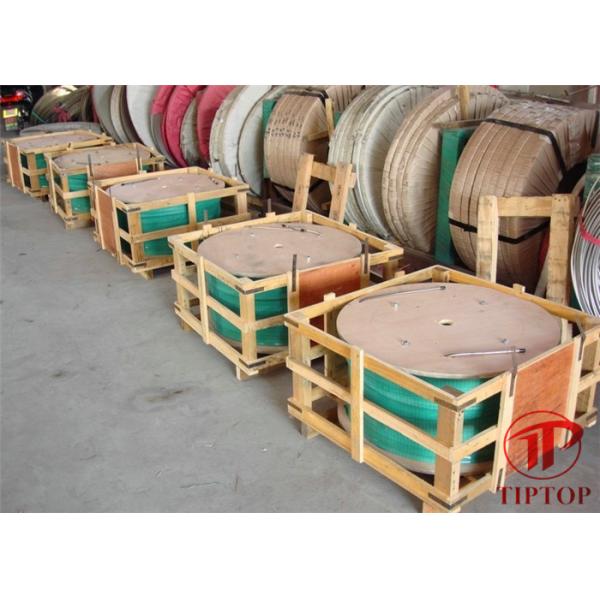

Seaworthy wooden cases or wooden reels
Material :
316L
Standard :
ASTM A269
Length :
According to the sizes
Processing :
Bending, Welding, Cutting
OD :
1/16"~1"
Thickness :
0.02"~0.083"
Description

ASTM A269 1/4" 3/8" 316L Stainless Steel Coil Tube

Detailed product description


1.Specification: Stainless steel coil tube coiled tube coil tubing
2.Type: welded or seamless
3. Standard: ASTM A269, ASTM A249,
4. Stainless steel coil tube OD: 6mm to 25.4MM
5.Length:600-3500MM or as per customer's requirment. not welding
6. Wall thickness: 0.2mm to 2.0mm.
7. Tolerance: OD: +/-0.01mm; Thickness: +/-0.01%.
8.Surface: Bright or anneald
9. Material: 304, 304L, 316L, 321, 301, 201, 202, 409, 430, 410,alloy 625 825 2205 2507 etc.
10. Packing: LCL wooden case poly bay,FCL steel self or poly bay
11. Test :Yield strength, tensile strength, hydrapress measurement
12.Guarantee:The third party (for example :SGS TV ) cetification ect.
13. Application: Decoration, furniture, railing making, paper making, automobile, food processing, medical.
14:Advantage: professional, high performance,

All the Chemical Composition and Physical Properites for Stainless Steel as flowing:

Material ASTM A269 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2.00 0.045 0.030 1.00 18.0-20.0 8.0-11.0 ^ ^ ^ . ^
TP304L 0.035 2.00 0.045 0.030 1.00 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2.00 0.045 0.030 1.00 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2.00 0.045 0.030 1.00 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2.00 0.045 0.030 1.00 17.0-19.0 9.0-12.0 10C -1.10 ^

Material Heat treatment Temperure F (C) Min. Hardness
Brinell Rockwell
TP304 Solution 1900 (1040) 192HBW/200HV 90HRB
TP304L Solution 1900 (1040) 192HBW/200HV 90HRB
TP316 Solution 1900(1040) 192HBW/200HV 90HRB
TP316L Solution 1900(1040) 192HBW/200HV 90HRB
TP321 Solution 1900(1040) F 192HBW/200HV 90HRB
TP347 Solution 1900(1040) 192HBW/200HV 90HRB

OD, inch OD Tolerance inch(mm) WT Tolerance % Length Tolernace inch(mm)
+ -
≤ 1 / 2 ± 0.005 ( 0.13 ) ± 15 1 / 8 ( 3.2 ) 0
> 1 / 2 ~1 1 / 2 ± 0.005(0.13) ± 10 1 / 8 (3.2) 0
> 1 1 / 2 ~< 3 1 / 2 ± 0.010(0.25) ± 10 3 / 16 (4.8) 0
> 3 1 / 2 ~< 5 1 / 2 ± 0.015(0.38) ± 10 3 / 16 (4.8) 0
> 5 1 / 2 ~< 8 ± 0.030(0.76) ± 10 3 / 16 (4.8) 0
8~< 12 ± 0.040(1.01) ± 10 3 / 16 (4.8) 0
12~< 14 ± 0.050(1.26) ± 10 3 / 16 (4.8) 0

Size Chart:

OD Wall
(inch)		 Materials Standard Working Pressure
(MPa)		 Length
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)		 ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704		 60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,0.065.0.083
5/16"
3/8"
1/2"
* OD: Up to 1 inch

ASTM A269 1/4
