205Mpa Hydraulic Alloy Steel Downhole Coiled Tubing
205Mpa Hydraulic Alloy Steel Downhole Coiled Tubing
205Mpa Hydraulic Alloy Steel Downhole Coiled Tubing
205Mpa Hydraulic Alloy Steel Downhole Coiled Tubing
Specifications
Brand Name :
TIPTOP
Model Number :
304,316,625,825,2205,2507
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 tons per month
Delivery Time :
10 days
Packaging Details :

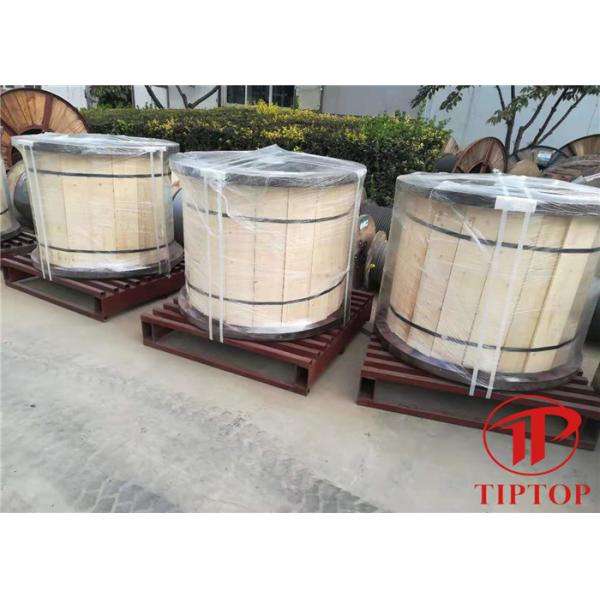

Seaworthy wooden cases or wooden reels
Material :
304,316,625,825,2205,2507
Standard :
ASTM A269,B704, A789
Length :
According to the sizes
Processing :
Bending, Welding, Cutting
OD :
1/16"~1"
Thickness :
0.02"~0.083"
Description

Alloy Steel Downhole Capillary Coil Tubing

We are professional hydraulic control lines, Stainless Steel control line Tubes/tubings, Stainless Steel coiled control line Tubes/tubings factory from china


The outer diameter of hydraulic control lines, Stainless Steel control line Tubes/tubing that we could do is in 1/8", 1/4", 1/2", 3/8", 3/4", 5/8",


The wall thickness hydraulic control lines, Stainless Steel control line Tubes/tubing that we could do is in 0.028", 0.035", 0.049", 0.065", 0.083"


The material grade of hydraulic control lines, Stainless Steel control line Tubes/tubings that we could do is in TP 304, TP 304L, TP316, TP316L, UNS S31603, Incoloy 825, 2205, 2507, UNS N08825, inconel 625, UNS N06625


Our hydraulic control lines, Stainless Steel control line Tubes/tubing are widely used in a numerous petrochemical applications, including:

  • Down hole tubes
  • Subsea umbilical's
  • Process constructions
  • General control system
  • Steam supply lines
  • Gas transport lines
  • Instrumentation

Chemical Composition:

Grade C Si Mn P S Cr Ni
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 ≤18.0-20.0 ≤8.0-10.5
304L ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.030 ≤18.0-20.0 ≤8.0-10.5

Grade C Si Mn P S Cr Ni others
SUS316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 16.0~18.0 10.0~14.0 Mo:2~3
SUS316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.030 16.0~18.0 12.0~15.0 Mo:2~3


Mechanical Properties&Hardness:

Grade YS(Mpa) TS(Mpa) EL(%) Hv
304 ≥205 ≥520 ≥40 ≤200
304L ≥175 ≥480 ≥40 ≤200

Grade YS(Mpa) TS(Mpa) EL(%) Hv
SUS316 ≥205 ≥520 ≥40 ≤200
SUS316L ≥175 ≥480 ≥40 ≤200

Inspection and Tests
We inspect all lots of tubing before shipment to ensure that every aspect of the customer's order has been met.
Our in-house inspection and tests capabilities include:

Chemical Composition Test

Visual inspection

Dimensional inspection

Surface roughness testing

Eddy Current testing

Hydrostatic pressure testing

Destructive mechanical testing:

- Yield Strength
- Tensile Strength
- Elongation
- Hardness testing
- bending, flattening, and flaring

All shipments include a full Test Certificate showing all required test results and verifying compliance with the order requirements.

205Mpa Hydraulic Alloy Steel Downhole Coiled Tubing
