5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
5-1/2 ESP Cable Protectors Flat type
Specifications
Brand Name :
Tiptop
Model Number :
2-3/8"
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
USD/EURO/RMB
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons per month
Delivery Time :
one week
Packaging Details :
wooden cases
Product Name :
5-1/2" ESP Cable Protectors Flat
Material :
Carbon steel or stainless steel
Tube Size :
2-3/8"~7"
Clamp type :
Casted or punching
Cable type :
Round&Flat
Cable size :
16-19mm SQUARE
Description

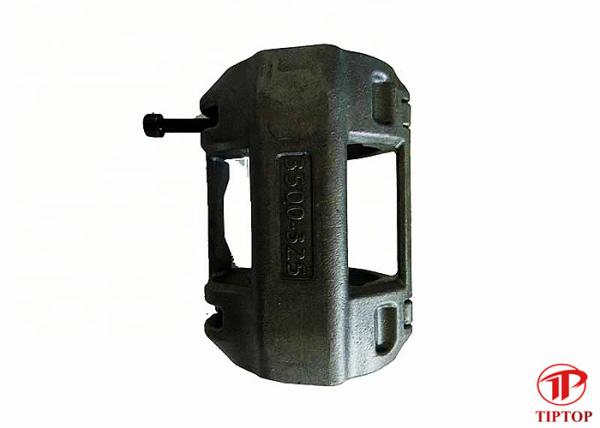

5-1/2" ESP Cable Protectors Flat

Protection has cross-coupled configuration and a variety of materials, to protect the cables and capillaries move downhole. Custom variant allows any desired cable / column cover configuration. Low carbon steel, stainless steel, Inconel, Monel, and other materials are available to meet the requirements of your oil component.

Specifications:

NO.

Description

Tube size

Cable type

Cable size

1

Cable Protector 2-3/8R6-8

2-3/8"

Round

Φ6-8mm

2

Cable Protector 2-3/8F11/34

2-3/8"

Flat

11mm SQUARE

3

Cable Protector 2-3/8R32-34

2-3/8"

Round

Φ32-34mm

4

Cable Protector 2-7/8R6-8

2-7/8"

Round

Φ6-8mm

5

Cable Protector 2-7/8R30-33

2-7/8"

Round

Φ30-33mm

6

Cable Protector 2-7/8R34-37

2-7/8"

Round

Φ34-37mm

7

Cable Protector 2-7/8F11/34

2-7/8"

Flat

11mm SQUARE

8

Cable Protector 2-7/8F16-19/56

2-7/8"

Flat

16-19mm SQUARE

9

Cable Protector 2-7/8F16-19/70

2-7/8"

Flat

16-19mm SQUARE

10

Cable Protector 3-1/2R6-8

3-1/2"

Round

Φ6-8mm

11

Cable Protector 3-1/2R30-33

3-1/2"

Round

Φ30-33mm

12

Cable Protector 3-1/2R34-37

3-1/2"

Round

Φ34-37mm

13

Cable Protector 3-1/2R38-42

3-1/2"

Round

Φ38-42mm

14

Cable Protector 3-1/2F11/34

3-1/2"

Flat

11mm SQUARE

15

Cable Protector 3-1/2F16-19/60

3-1/2"

Flat

16-19mm SQUARE

16

Cable Protector 3-1/2F19-23/70

3-1/2"

Flat

19--23mm SQUARE

17

Cable Protector 4-1/2R6-8

4-1/2"

Round

Φ6-8mm

18

Cable Protector 4-1/2R34-37

4-1/2"

Round

Φ34-37mm

19

Cable Protector 4-1/2R38-42

4-1/2"

Round

Φ38-42mm

20

Cable Protector 4-1/2F11/34

4-1/2"

Flat

11mm SQUARE

21

Cable Protector 4-1/2F16-19/60

4-1/2"

Flat

16-19mm SQUARE

22

Cable Protector 4-1/2F19-23/60

4-1/2"

Flat

19--23mm SQUARE

23

Cable Protector 5-1/2R6-8

5-1/2"

Round

Φ6-8mm

24

Cable Protector 5-1/2R34-37

5-1/2"

Round

Φ34-37mm

25

Cable Protector 5-1/2R38-42

5-1/2"

Round

Φ38-42mm

26

Cable Protector 5-1/2F11/34

5-1/2"

Flat

11mm SQUARE

27

Cable Protector 5-1/2F11-16/56

5-1/2"

Flat

11-16mm SQUARE

28

Cable Protector 5-1/2F16-19/70DUAL

5-1/2"

Flat

19--23mm SQUARE

29

Cable Protector 7R6-8

7"

Round

Φ6-8mm

30

Cable Protector 7F11/34

7"

Flat

11mm SQUARE

5-1/2

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
