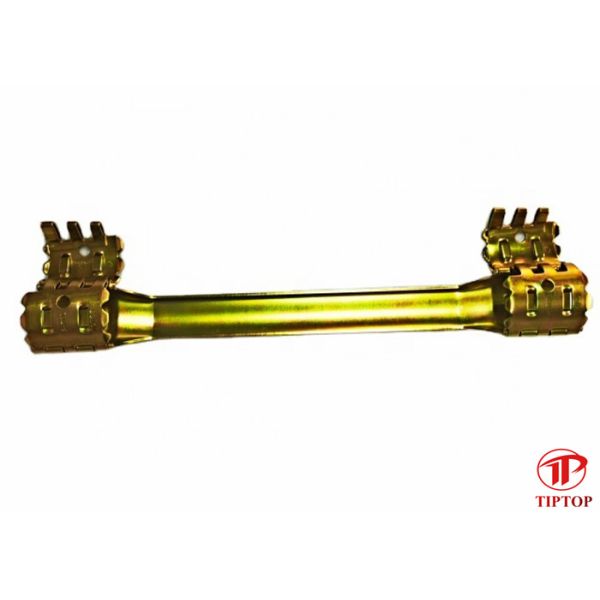

Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors
Specifications
Brand Name :
Tiptop
Model Number :
2-3/8"
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 reel
Price :
USD/EURO/RMB
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons per month
Delivery Time :
one week
Packaging Details :
wooden cases
Product Name :
Cable Protector 2-7/8F16-19/56 ESP Cable Protectors Customized
Material :
Carbon steel or stainless stee
Tube Size :
2-3/8"~7"
Cable type :
Round or Flat
Cable size :
11mm SQUARE
Feature :
Compact, applicable to any cross coupling connector
Description

Cable Protector 2-7/8F16-19/56 ESP Cable Protectors Customized

Dual-channel protection by increasing the number of cables to be an increase in protection a second channel in the cable protector. They can accommodate a plurality of cables and other capped ESP lines or control cables. The standard cross-coupled as the protector, they may be made of a variety of materials and configurations, and the capillary tube to protect the cable downhole. Custom variant allows any desired cable / column cover configuration. Low carbon steel, stainless steel, Inconel, Monel, and other materials are available to meet the requirements of your oil component.

Features:

Compact, applicable to any cross coupling connector

Fast on-site installation

Environmental protection

Reusable and recyclable products

Specifications:

NO. Description Tube size Cable type Cable size
1 Cable Protector 2-3/8R6-8 2-3/8" Round Φ6-8mm
2 Cable Protector 2-3/8F11/34 2-3/8" Flat 11mm SQUARE
3 Cable Protector 2-3/8R32-34 2-3/8" Round Φ32-34mm
4 Cable Protector 2-7/8R6-8 2-7/8" Round Φ6-8mm
5 Cable Protector 2-7/8R30-33 2-7/8" Round Φ30-33mm
6 Cable Protector 2-7/8R34-37 2-7/8" Round Φ34-37mm
7 Cable Protector 2-7/8F11/34 2-7/8" Flat 11mm SQUARE
8 Cable Protector 2-7/8F16-19/56 2-7/8" Flat 16-19mm SQUARE
9 Cable Protector 2-7/8F16-19/70 2-7/8" Flat 16-19mm SQUARE
10 Cable Protector 3-1/2R6-8 3-1/2" Round Φ6-8mm
11 Cable Protector 3-1/2R30-33 3-1/2" Round Φ30-33mm
12 Cable Protector 3-1/2R34-37 3-1/2" Round Φ34-37mm
13 Cable Protector 3-1/2R38-42 3-1/2" Round Φ38-42mm
14 Cable Protector 3-1/2F11/34 3-1/2" Flat 11mm SQUARE
15 Cable Protector 3-1/2F16-19/60 3-1/2" Flat 16-19mm SQUARE
16 Cable Protector 3-1/2F19-23/70 3-1/2" Flat 19--23mm SQUARE
17 Cable Protector 4-1/2R6-8 4-1/2" Round Φ6-8mm
18 Cable Protector 4-1/2R34-37 4-1/2" Round Φ34-37mm
19 Cable Protector 4-1/2R38-42 4-1/2" Round Φ38-42mm
20 Cable Protector 4-1/2F11/34 4-1/2" Flat 11mm SQUARE
21 Cable Protector 4-1/2F16-19/60 4-1/2" Flat 16-19mm SQUARE
22 Cable Protector 4-1/2F19-23/60 4-1/2" Flat 19--23mm SQUARE
23 Cable Protector 5-1/2R6-8 5-1/2" Round Φ6-8mm
24 Cable Protector 5-1/2R34-37 5-1/2" Round Φ34-37mm
25 Cable Protector 5-1/2R38-42 5-1/2" Round Φ38-42mm
26 Cable Protector 5-1/2F11/34 5-1/2" Flat 11mm SQUARE
27 Cable Protector 5-1/2F11-16/56 5-1/2" Flat 11-16mm SQUARE
28 Cable Protector 5-1/2F16-19/70DUAL 5-1/2" Flat 19--23mm SQUARE
29 Cable Protector 7R6-8 7" Round Φ6-8mm
30 Cable Protector 7F11/34 7" Flat 11mm SQUARE

Carbon Steel Stainless Steel 2-7/8F16-19/56 ESP Cable Protectors

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
