2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
2-3/8-7 ESP Cable Protectors Round & Flat Type
Specifications
Brand Name :
Tiptop
Model Number :
2-3/8"
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
USD/EURO/RMB
Payment Terms :
L/C, T/T
Supply Ability :
1000 tons per month
Delivery Time :
one week
Packaging Details :
wooden cases
Product Name :
2-3/8"-7" ESP Cable Protectors Round&Flat
Material :
Carbon steel or stainless steel
Tube Size :
2-3/8"~7"
Clamp type :
casted or punching
Cable Type :
Round or flat
Cable Size :
Φ6-8mm
Description

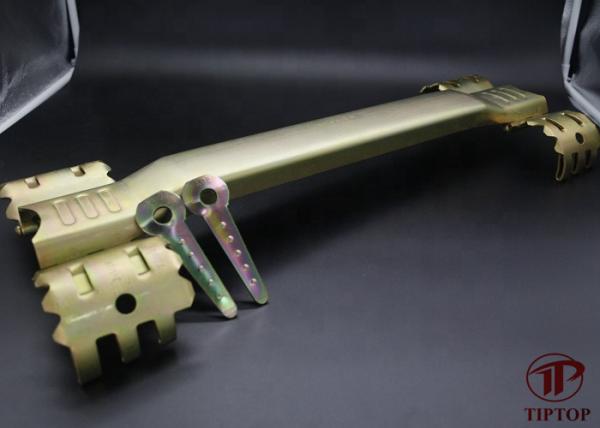

2-3/8"-7" ESP Cable Protectors Round&Flat

Underground wires/cables are not only a key element, but also an area where failures often occur. These weaknesses may be due to the natural limits of fracture strain and e working load, or they may be due to poor operating factors. Trends such as highly deviated wells can also significantly increase cable tension compared to the lower tensions found in more traditional shallow wells.


Cross-coupling protector, an intermediate fastening clamp, and low profile cord protection, etc. - applied to almost control line, any configuration submersible pump (ESP) cable, line or umbilical bundle wellbore lower package.


Motor protector extending wire provides excellent fit and protection, it may be applied to various types of wells, including inclined, vertical wells, horizontal wells, geothermal wells, and subsea wells offshore wells.


Our ESP cable protector is suitable for standard and highly customized protection systems. You can also choose various alloys that can withstand the harshest underground environments.

Application:


• ESP cable
• Subsurface ety valves control line
• Chemical injection line
• Permanent Gauges
• Intelligent Wells
• Fiber Optic
• Coiled tubing

Specifications:

Manufactured of low carbon steel or stainless steel

Available as cross-coupling and mid-joint protectors

Suitable for API tubing sizes from 2 3/8" to 7"

Configured for flat, round or square cables, chemical injection lines, umbilicals etc.

Multichannel designs available to separate multiple lines

Customized upon request

NO.

Description

Tube size

Cable type

Cable size

1

Cable Protector 2-3/8R6-8

2-3/8"

Round

Φ6-8mm

2

Cable Protector 2-3/8F11/34

2-3/8"

Flat

11mm SQUARE

3

Cable Protector 2-3/8R32-34

2-3/8"

Round

Φ32-34mm

4

Cable Protector 2-7/8R6-8

2-7/8"

Round

Φ6-8mm

5

Cable Protector 2-7/8R30-33

2-7/8"

Round

Φ30-33mm

6

Cable Protector 2-7/8R34-37

2-7/8"

Round

Φ34-37mm

7

Cable Protector 2-7/8F11/34

2-7/8"

Flat

11mm SQUARE

8

Cable Protector 2-7/8F16-19/56

2-7/8"

Flat

16-19mm SQUARE

9

Cable Protector 2-7/8F16-19/70

2-7/8"

Flat

16-19mm SQUARE

10

Cable Protector 3-1/2R6-8

3-1/2"

Round

Φ6-8mm

11

Cable Protector 3-1/2R30-33

3-1/2"

Round

Φ30-33mm

12

Cable Protector 3-1/2R34-37

3-1/2"

Round

Φ34-37mm

13

Cable Protector 3-1/2R38-42

3-1/2"

Round

Φ38-42mm

14

Cable Protector 3-1/2F11/34

3-1/2"

Flat

11mm SQUARE

15

Cable Protector 3-1/2F16-19/60

3-1/2"

Flat

16-19mm SQUARE

16

Cable Protector 3-1/2F19-23/70

3-1/2"

Flat

19--23mm SQUARE

17

Cable Protector 4-1/2R6-8

4-1/2"

Round

Φ6-8mm

18

Cable Protector 4-1/2R34-37

4-1/2"

Round

Φ34-37mm

19

Cable Protector 4-1/2R38-42

4-1/2"

Round

Φ38-42mm

20

Cable Protector 4-1/2F11/34

4-1/2"

Flat

11mm SQUARE

21

Cable Protector 4-1/2F16-19/60

4-1/2"

Flat

16-19mm SQUARE

22

Cable Protector 4-1/2F19-23/60

4-1/2"

Flat

19--23mm SQUARE

23

Cable Protector 5-1/2R6-8

5-1/2"

Round

Φ6-8mm

24

Cable Protector 5-1/2R34-37

5-1/2"

Round

Φ34-37mm

25

Cable Protector 5-1/2R38-42

5-1/2"

Round

Φ38-42mm

26

Cable Protector 5-1/2F11/34

5-1/2"

Flat

11mm SQUARE

27

Cable Protector 5-1/2F11-16/56

5-1/2"

Flat

11-16mm SQUARE

28

Cable Protector 5-1/2F16-19/70DUAL

5-1/2"

Flat

19--23mm SQUARE

29

Cable Protector 7R6-8

7"

Round

Φ6-8mm

30

Cable Protector 7F11/34

7"

Flat

11mm SQUARE

Note: We can provide specific design to meet strict technological and quality.

2-3/8

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
