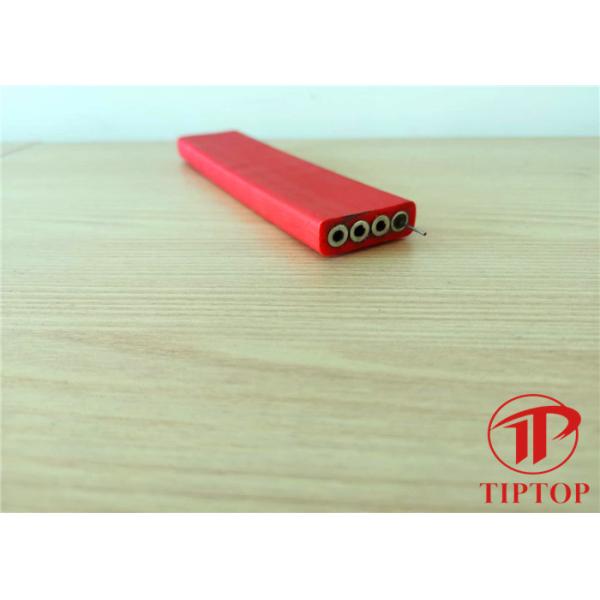

KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
KS PVC Cover Multi Core Tubing
Specifications
Brand Name :
Tiptop
Model Number :
PVC
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 reel
Price :
USD/EURO/RMB
Payment Terms :
L/C, T/T,
Supply Ability :
1000 TONS PER MONTH
Delivery Time :
ONE WEEL
Packaging Details :
WOODEN REEL +WOODEN CASE
Material :
PVC Cover
Technique :
Cold drawn
Standard :
ASTM A269
Processing type :
Seamless & Welded
Product Name :
KS Multi Core Tubing​
Color :
customized
Description

KS Multi Core Tubing​

When using multi-core pipes, there is no need to connect the valves and connectors in the middle, and it can be installed remotely at one time. This saves installation costs and effectively shortens installation man-hours compared to the conventional straight pipe butting method using valves and continuous parts. For long-length multi-core pipes, in order to improve construction efficiency, each pipe is distinguished by a different color, which can be effectively identified, and it is also helpful for management and maintenance after installation.

Maximum Allowable Working Pressure:

O.D
(mm)		 Wall Thickness (mm)
0.5 0.8 1 1.2 1.5 2
6mm 18.2 29.2 — — — —
8mm 13.7 21.9 27.3 — — —
10mm — 17.5 21.9 26.2 32.8 —
12mm — — 18.2 21.9 27.3 —
14mm — — — 18.7 23.4 31.2
15mm — — — — 21.9 29.2

Technical parameters:

O.D

(mm)

 No.of Cores Sheath Thickness (mm) Overall Diameter (Approx, mm) Bending Radius (Minimum mm) Weight/kg/m
0.18 1.0 1.2 1.5 2.0
6 1 1 8 64 0.18 0.21 一 一
2 2 19 152 0.67 0.71 一 一
4 2 23 184 0.96 1.04 一 一
6 2 28 224 1.25 1.38 一 一
8 1 1 10 80 0.25 0.28 0.31 一
2 2 23 192 0.83 0.89 0.95 一
4 2 28 224 1.2 1.33 1.45 一
6 2 33 272 1.82 2 2.17 一
10 1 1 12 96 0.3 0.34 0.38 0.43
2 2 28 224 1.1 1.18 1.26 1.37
4 2 34 272 1.8 1.97 2.13 2.35
6 2 39 320 2.15 2.4 2.63 2.96
12 1 1 14 112 - 0.41 0.45 0.53
2 2 34 272 - 1.38 1.48 1.62
4 2 39 312 - 2.37 2.57 2.85
6 2 48 384 - 3 3.29 3.71
14 1 1 16 128 - 一 一 0.61 0.74
2 2 39 312 - 一 一 3 3.26
15 1 1 17 136 一 一 一 0.64 0.79
2 2 39 312 - 一 一 3.08 3.36

KS PVC Cover Multi Core Tubing

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
