AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz
Specifications
Brand Name :
MH motors
Model Number :
MH6038-38125
Certification :
CE /ETL/CCC
Place of Origin :
China
MOQ :
288PCS
Price :
Negotiable(EXW)
Payment Terms :
T/T
Supply Ability :
1000PCS/day
Delivery Time :
30 work days
Packaging Details :
Standard exporting carton package, ship by sea or airfreight
Product Name :
AC Fireplace Convection Blower Motor Fan with 3-speed 4X4 squirrel cage
Motor Type :
MH6038-38125
Rated Voltage/Frequency :
230Vac/50Hz
Current（A) :
H: 0.5 M: 0.4 L:0.3
Input Power（W） :
H: 60 M: 50 L:45
Speed（RPM) :
H: 2300 M:1800 L:1300
Air Flow（CFM) :
H: 176 M: 142 L: 88
Wind Speed(m/s)/s) :
H: 10 M: 8 L:5
Stator Vibration(cm/s) :
0.25
Bearing Type :
NMB Ball Bearing
Insulation Class :
H
Protection method :
TP(THERMAL PROTECTOR)
Safe Certification :
ETL/CE/CCC
High light :
Fireplace onvectiob Blower Motor, 3-speed 4X4 squirrel cage Convecition blower motor
Hi-Pot TEST :
1800VAC,50Hz,3mA,1S
Description

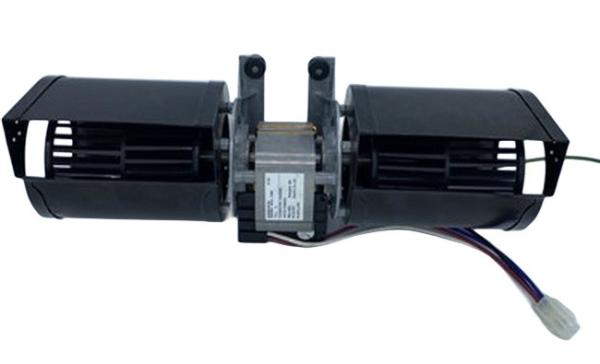

AC Fireplace Convection Blower Motor Fan with 3-speed 4X4 squirrel cage

The fan is equipped with a 4X4 squirrel cage design, which improves airflow efficiency and ensures even distribution of air. It is designed to operate quietly, minimizing noise disruptions during fireplace use.

Overall, the Blower Motor Fan with 3-speed and 4X4 squirrel cage is a reliable and efficient solution for enhancing fireplace convection and improving heat distribution. With its adjustable speed options and quiet performance, it offers flexibility and convenience for fireplace applications.

Quick Review:

Model Type:MH6038-38125

Motor Type:AC Shade Pole Motor
Rated Voltage/Frequency 230Vac/50Hz Hi-Pot TEST 1800vac50hz,3Ma,1s
Current(A)

H:0.5

M:0.4

L:0.3

 Bearing Type NMB Ball Bearing
Input Power(W)

H:60

M:50

L:45

 Insulation Class H
Speed(RPM)

H:2300

M:1800

L:1300

 Wind Speed (m/s) H: 10 M:8 L:5
Air Flow(CFM) H:176 Protection method TP(THERMAL PROTECTOR)

M:142

L:88

Stator Vibration(cm/s)

0.25

AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz

Production Description:

1. 4X4 squirrel cage blower

2. High temperature ball bearing construction

3. Isolation mounting to dampen noise and vibration

4. Quiet Better Design.

5. Powered by C-Frame Shaded Pole Motor, long lasting and energy efficient

6. Superbly balanced.

7. Housings can painted

8. High temperature wheel

9. Premium Sealed ball bearing motor.


Pakage style:

AC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50HzAC Fireplace Convection Blower Motor Fan 3 Speed 4X4 Squirrel Cage 50Hz

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.

Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.

Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.

Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.

Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.

Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery

Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.

Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
