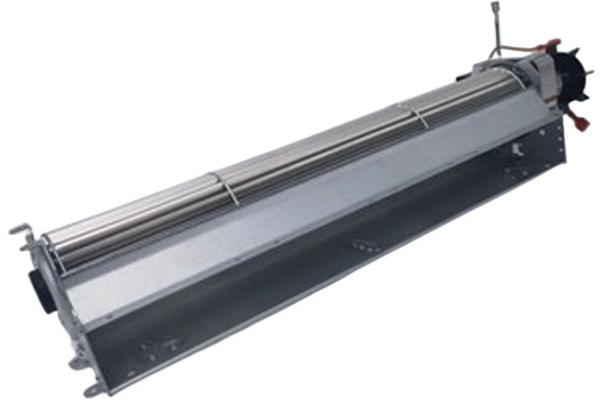

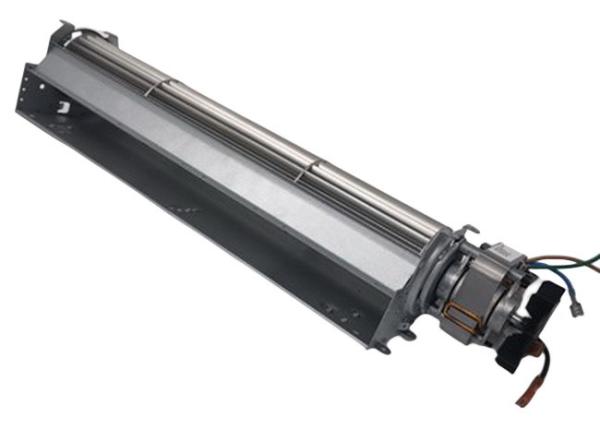

60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow
Specifications
Brand Name :
MH motors
Model Number :
MH6019-19332
Certification :
ETL/CE/CCC
Place of Origin :
China
MOQ :
500PCS
Price :
Negotiable(EXW)
Payment Terms :
T/T
Supply Ability :
1500PCS/day
Delivery Time :
30 work days
Packaging Details :
Standard exporting carton package, ship by sea or airfreight
product name :
60mm China AC Cross flow Blowers Fan with 3-speed low-pressure laminar flow design
Motor Type :
MH6019-19332
Rated Voltage/Frequency :
240v 50hz
Current（A) :
H: 0.3 M: 0.2 L:0.14
Input Power（W） :
H: 33 M: 25 L:20
Speed（RPM) :
H: 1650 M: 1200 L:950
Hi-Pot TEST :
1800vac50hz,3Ma,1s
Bearing Type :
NMB Ball Bearing
Insulation Class :
H
Thermally Protected :
TP
Wind Speed(m/s) :
H:5 M: 3.5 L:3
Air Volume（CFM) :
H: 119 M: 90 L:70
Start Voltage: :
161V 50Hz
Application :
pellet stove,oven/lab equipment
Agency :
UL
High Light :
60mm, China AC Cross flow Blowers Fan,3-speed ,low-pressure laminar flow design
Description

60mm China AC Cross flow Blowers Fan with 3-speed low-pressure laminar flow design

Production Feature :
1. A 60mm impeller, delivering high airflow with low noise levels.
2. Applicable in various fields, including food heating and fireplaces.
3. Driven by a C-FRAME shaded pole motor.
4. The motor can be mounted in any of the four positions.
5. Utilizes ball bearing structure, suitable for high-temperature environments and offering a long lifespan.
6. Multiple performance options available for selection.

7. designed with a self-cooling fan, which extends the motor's lifespan

8. 3- different fan speed settings.

Quick Review:

Product Name: 60mm China AC Cross Flow Blowers Fan With 3-speed Low-pressure Laminar Flow Design Motor Type: MH6019-19332
Rated Voltage/Frequency: 240v50hz Current(A): H: 0.3 M: 0.2 L:0.14
Input Power(W): H: 33 M: 25 L:20 Speed(RPM): H: 1650 M: 1200 L:950
Hi-Pot TEST: 1800vac50hz,3Ma,1s Bearing Type: NMB Ball Bearing
Insulation Class: H Thermally Protected: TP
Wind Speed(m/s): H:5 M: 3.5 L:3 Air Volume(CFM): H: 119 M: 90 L:70
Start Voltage:: 161V 50Hz Application: Pellet Stove,oven/lab Equipment

60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow

60MM Cross flow Blower Performance

Length of Wheel
(mm)		 Air Flow at Static Pressure(CFM)
0 0.1 0.2 0.3 0.4 0.5
120 80 75 70 45 5 0
180 120 115 105 70 10 0
240 160 155 140 95 15 0
300 200 195 175 120 20 0
360 240 230 210 145 25 0


AIR FLOW CURVE

60mm AC Cross Flow Blower Fan With 3 Speed Low-Pressure Laminar Flow

Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been specialize in the field of exporting Shade Pole Motors & blowers for several years. We have our own production facility and a strong R&D team.

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.

Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.

Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.

Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.

Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.

Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery

Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.

Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
