Specifications
Brand Name :
MH motors
Model Number :
MHW90-82556
Certification :
ETL
Place of Origin :
China
MOQ :
500PCS
Price :
Negotiable(EXW)
Payment Terms :
T/T
Supply Ability :
1500PCS/day
Delivery Time :
30 work days
Packaging Details :
Standard exporting carton package, ship by sea or airfreight
product name :
86mmX360 AC Cross flow Blowers Fan 100W 0.88A driven by external rotor motor
Motor Type :
MHW90-82556
Rated Voltage/Frequency :
115v 60hz
Current（A) :
0.88
Input Power（W） :
100W
Speed（RPM) :
1500
Hi-Pot TEST :
1500V50Hz,1mA,1S
Bearing Type :
NMB ball Bearing
Insulation Class :
H
Start voltage :
81V 60Hz
Thermally Protected :
T.P
Wind Speed(m/s) :
10
Air Volume（CFM) :
357
Application :
Pellet Stove
Agency :
CE
Feature :
external rotor motor and have the metal board
High Light :
86mmX360, AC Cross flow Blowers Fan, 100W 0.88A,external rotor motor
Description

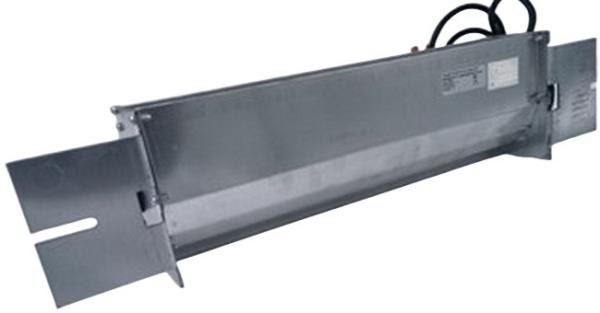

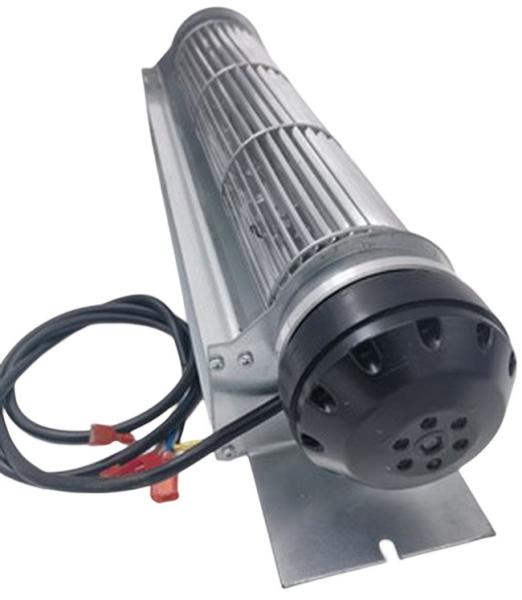

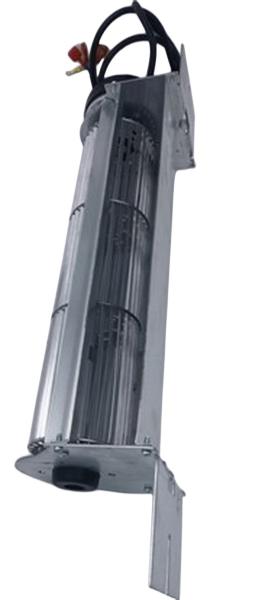

86mmX360 AC Cross flow Blowers Fan 100W 0.88A driven by external rotor motor

This 86mmX360 AC cross-flow blower fan is a high-power, high-performance product. With its cross-flow blower design and external rotor motor, it provides strong airflow output. It offers outstanding cooling performance and is suitable for larger cooling and ventilation needs. Whether it's in applications in various fields, this fan provides an effective and reliable cooling solution.

Quick Review:

Product Name:86mmX360 AC Cross Flow Blowers Fan 100W 0.88A Driven By External Rotor MotorMotor Type:MHW90-82556
Rated Voltage/Frequency:115v 60hzCurrent(A):0.88
Input Power(W):100WSpeed(RPM):1500
Hi-Pot TEST:1500V50Hz,1mA,1SBearing Type:NMB Ball Bearing
Insulation Class:HStart Voltage:81V 60Hz
Thermally Protected:T.PWind Speed(m/s):10
Air Volume(CFM):357Application:Pellet Stove
Agency:CEFeature:External Rotor Motor And Have The Metal Board



86mm X 360 AC Cross Flow Blower Fan Centrifugal Flow 100W 0.88A External Rotor Motor


Production Feature :

1. 85mmX360mm impeller, offering high airflow and low noise performance.
2. Equipped with Hall speed feedback and is suitable for various applications, including food heating and fireplace systems.
3. Driven by an efficient external rotor motor and features an independent metal plate installation design.
4. With a ball bearing structure, it is suitable for high-temperature environments and boasts a long lifespan.

86mm X 360 AC Cross Flow Blower Fan Centrifugal Flow 100W 0.88A External Rotor Motor

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.

Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.

Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.

Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.

Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.

Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery

Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.

Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
