20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box
Specifications
Brand Name :
MH motors
Model Number :
MH6016-16304
Certification :
UL
Place of Origin :
China
MOQ :
720pcs
Price :
Negotiable ( EXW)
Payment Terms :
T/T
Supply Ability :
2000PCS/day
Delivery Time :
30 work days
Packaging Details :
Standard exporting carton package, ship by sea or airfreight
Product Name :
Pellet Grill 20W 3.0 RPM Auger Motor Shade Pole Gear box
Model Type： :
MH6016-16304
Rated Voltage/Frequency :
120Vac/60Hz
Current（A) :
0.4
Input Power（W） :
20
Output Speed（RPM)（W） :
3
Output Torque(Nm) :
10
Hi-Pot TEST :
1500vac50hz,1Ma,1s
Bearing Type :
Sleeve
Insulation Class :
H
Protect Method :
Z P
Agency :
UL
Appliction :
Pellet Grill
High Light :
Pellet Grill, 20W 120VAC 60Hz 3.0 RPM, Auger Motor Shade Pole ,UL agency
Description

Pellet Grill 20W 120VAC 60Hz 3.0 RPM Auger Motor Shade Pole Gear box

The Auger Motor shade pole gear box is designed for use with pellet grills. It has a rated power of 20W, 120VAC and the 60Hz, the rotating speed of 3.0 RPM. The motor is designed with a shade pole gear box for efficient operation and low noise. It is used to transport pellet fuel to the grill for cooking. The motor is equipped with a protective gear box to prevent contamination from dust, grease, and other pollutants. This product is widely used in residential, commercial, and industrial pellet grills.

Specification:

Model Type:MH6016-16304

Motor Type:AC Shade Pole Motor
Rated Voltage/Frequency 120Vac/60Hz Hi-Pot TEST 1500vac50hz,1Ma,1s
Current(A) 0.4 Protect Method Z P
Input Power(W) 20 Bearing Type Sleeve Bearing

Output Speed(RPM)

 3 Insulation Class H
Output Torque(Nm) 10 Agency Certification

UL

For detail information, please contact us for catalogue, thanks!

20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box

Production Description:

• Standard performance of C-type shaded pole motor
• Fully sealed design of the gear box rear cover to eliminate the risk of long-term oil leakage
• The motor and gear box are assembled with four-foot end covers to improve the stability of the motor operation
• The temperature range of the grease used in the gear box is -25℃-280℃
• Low temperature rise design to improve the service life of the motor, with a maximum temperature rise of no more than 20k
• Maximum output torque of 10.9Nm to improve customer experience.

Unifit Universal Feeding Gear Motor KitPellet grill Auger Drive Motor keeps the fuel moving into the firepot. Keep pumping out delicious meals by replacing it when your pellets won't feed to the fire.

  • 0.4 Amp, 20 Wat, 3RPM, AC 120V/60Hz,Strong Torque than normal one.
  • Universal connectors
  • Heavy Duty for high quality and durable
  • Easy installation: make your grill work like a new grill again

20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box

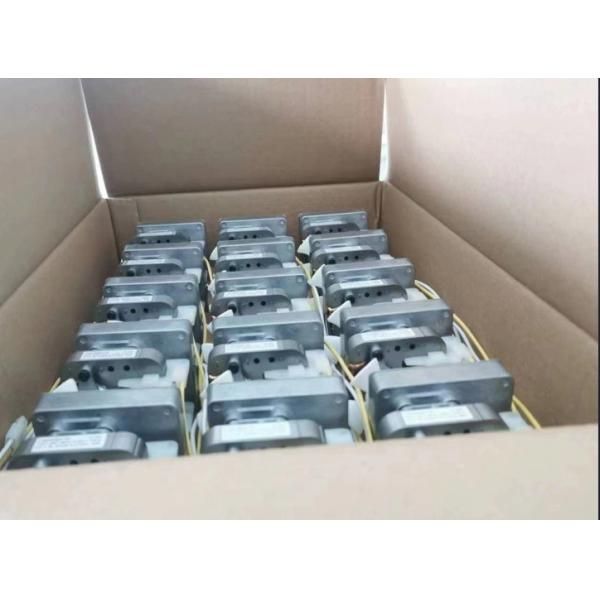

Package


20W 120VAC Pellet Auger Motor 60Hz 3.0 RPM Pellet Stove Auger Shade Pole Gear Box

Welcome your business chat and visit.

Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing drafr inducer exhaust fan motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective motors and air moving solutions for customers.

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.

Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.

Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.

Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.

Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.

Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery

Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.

Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.

Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
