China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
China 2.38 62W Skeleton Frame Electric Fan Motors Ac Shaded Pole
Specifications
Brand Name :
MH motors
Model Number :
MH6029-29406
Certification :
ETL
Place of Origin :
China
MOQ :
480PCS
Price :
Negotiable(EXW)
Payment Terms :
T/T
Supply Ability :
3000PCS/day
Delivery Time :
30 work days
Packaging Details :
Standard exporting carton package, ship by sea or airfreight
product name :
China 2.38" 62W skeleton frame Electric Fan Motors Ac Shaded Pole
Motor Type :
MH6029-29406
Rated Voltage/Frequency :
277Vac/60Hz
Current（A) :
0.4A
Input Power（W） :
62W
Output Speed（RPM) :
3000
Hi-Pot TEST :
1800vac50hz,1Ma,1s
Bearing Type :
SLEEVE BEARING
Insulation Class :
H
Agency :
ETL
Protect Method :
TP
Application :
PUMP
High light :
China 2.38" 62W, skeleton frame Electric Fan Motors Ac Shaded Pole
Description

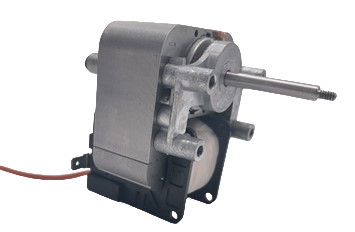

China 2.38" 62W skeleton frame Electric Fan Motors Ac Shaded Pole

Can be customized according to customer requirements, please contanct us.

Stack Length (L) (mm/inch) Voltage (V) Frequency (Hz) Speed(RPM) Max Torque(Oz.in) Max HP
Output
9.53(3/8) 110-120
220-240		 50/60 3000 1.4 1/225
12.50(1/2) 3000 3.1 1/112
15.63(5/8) 3000 4.3 1/90
18.75(3/4) 3000 6 1/60
21.88(7/8) 3000 7.5 1/45
25.40(1) 3000 9.3 1/40
28.123(1 1/8) 3000 11.2 1/30
34.93(1 3/8) 3000 16 1/25
38.10(1 1/2) 3000 18.5 1/18
50.80(2) 3000 24.8 1/13

China 2.38


Production Feature :

2.38’’ C-FRAME MOTOR

Heavy-duty steel and die-cast construction

Several shaft size options

Several mounting options available

Several lead configurations available

Ball bearing or Sleeve bearing available

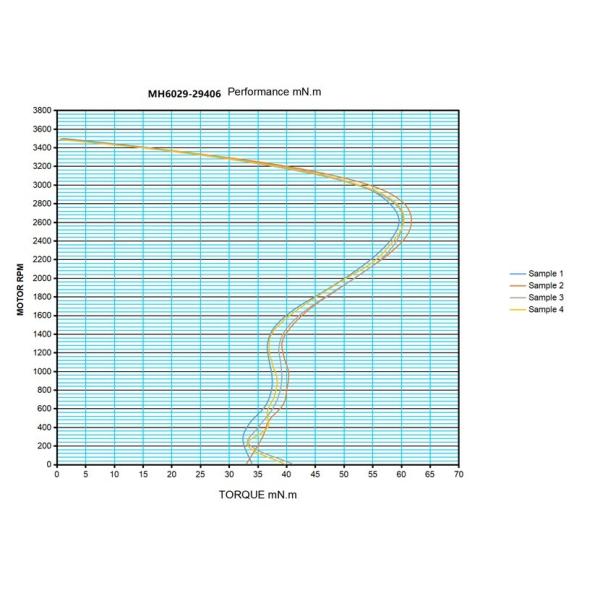

Air Flow Curve

China 2.38

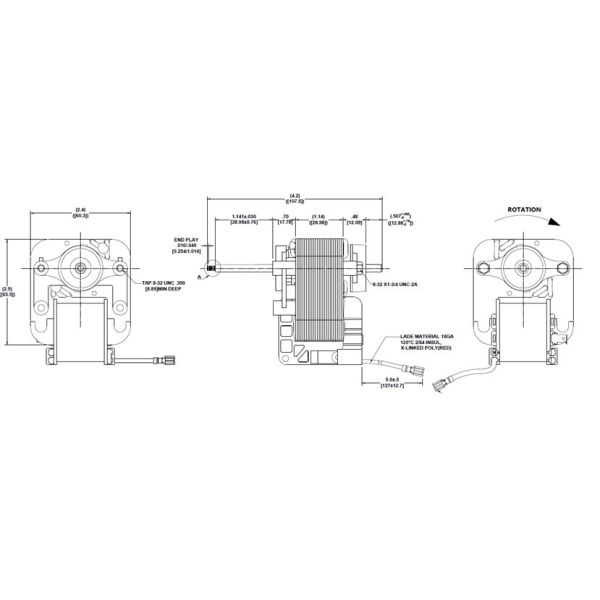

Outline China 2.38

FAQ

Q1- What is the warranty of the motors?

The warranty is 18 months from the shipping date.

Q2- Can you design and make the motor as required?

Yes, we provide both ODM and OEM products.

Q3- What is your advantage?

Besides the good quality and the competitive price, we offer the short lead time and quick response.

Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be negotiated for long-term business.

Q5- How to get the accurate quotation?

The accurate price will be quoted after the specification and mounting dimension of the motor are checked.

Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery

Q7- Do you have any MOQ for motors?

Usually our MOQ is one pallet. But we accept the small quantity for the trial order.

Q8- Do you have other products?

Yes, besides the shade pole motors and blowers ,we also offer OEM production for some industrial motors such as single phase AC motor, 3 phase industrial motor, stainless steel motor, BLDC fan motor etc... And we offer the sourcing service for other products required.
