90W 1000m Length 100kg/M Stainless Steel Belt Conveyor
90W 1000m Length 100kg/M Stainless Steel Belt Conveyor
90W 1000m Length 100kg/M Stainless Steel Belt Conveyor
90W 1000m Length 100kg/M Stainless Steel Belt Conveyor
90W 1000m Length 100kg/M Stainless Steel Belt Conveyor
90W 1000m Length 100kg/M Stainless Steel Belt Conveyor
Specifications
Brand Name :
pengya
Model Number :
MB-J
Certification :
ISO
Place of Origin :
shanghai
MOQ :
one unit
Price :
Please Contact Us For The Price
Supply Ability :
For more than a week
Delivery Time :
about week days
Packaging Details :
wood
Payment Terms :
T/T,
Belt width :
200
Machine width :
280
Machine length :
1000
Drive method :
Belt drive
Frame :
Aluminum profile or sheet metal
Belt :
Polyurethane resin belt
Motor capacity :
40W
power supply :
AC100V
Description

MB-J Load 100kg Aluminum profile or sheet metal belt conveyor Length and width can be customized

Features
Lightweight and precise

Because the outer frame uses aluminum extrusion material or sheet metal,Lightweight and beautiful,It is a very precise conveyor.

There are T-slots on both sides and bottom of the frame,Because the nut M6 is ready to be used, this can be used to guide the brake and the foot frame.The foot frame is 750±30H (with adjustment bolt) standard type,Each conveyor is attached with two foot frames.

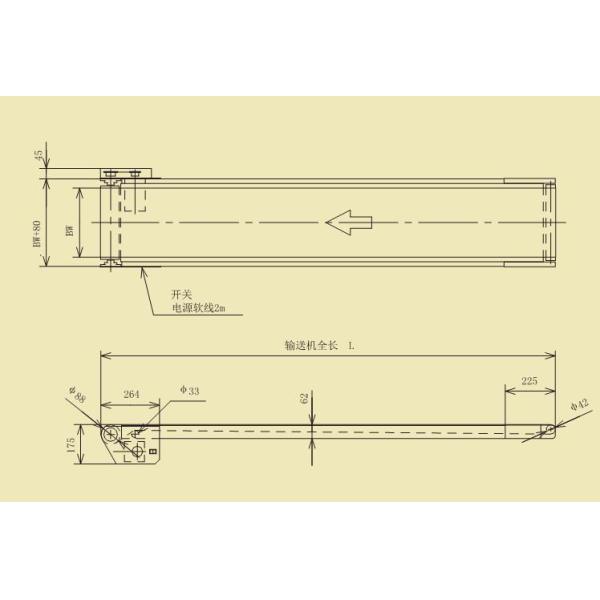

Standard specifications(mm)

Belt width 200 300 400 500 600
Machine width 280 380 480 580 680
Machine length 1000/1500/2000/2500/3000/3500/4000/4500/5000
Drive method Belt drive
Frame Aluminum profile or sheet metal
Belt Polyurethane resin belt (in accordance with food safety standards)
Motor capacity 40W,60W,90W
power supply ①AC100V(Single phase)②AC200V(Three-phase)Please use the transmission when shifting gears

Speed form(m/min)

Power Gear ratio 50Hz 60Hz Motor capacity

Fixed speed

①

②

 1/120 2.5 3 40W
1/60 5 6 60W
1/40 7.5 9 60W
1/30 10 12 90W
1/20 15 18 90W
1/15 20 24 90W

Gear shift

①

②

 1/120 0.8~2.5 1~3 40W
1/60 1.7~5 2~6 60W
1/40 2.5~7.5 3~9 60W
1/30 3.3~10 4~12 90W
1/20 5~15 6~18 90W
1/15 6.7~20 8~24 90W

Substantially the entire weight of the machine(kg)

Machine length

Belt width

 1000 1500 2000 2500 3000
200 20 24 26 28 30
300 21 25 28 31 35
400 22 26 30 36 40
500 24 28 33 41 46
600 25 30 35 46 51

Machine length

Belt width

 3500 4000 4500 5000
200 33 36 39 43
300 39 42 46 50
400 45 48 53 57
500 51 55 60 65
600 57 61 67 72

90W 1000m Length 100kg/M Stainless Steel Belt Conveyor

90W 1000m Length 100kg/M Stainless Steel Belt Conveyor

90W 1000m Length 100kg/M Stainless Steel Belt Conveyor

If you have customized requirements,Please provide the product size, weight and required conveying speed,Or the requirements for the brand of purchased parts,We will provide reasonable suggestions and quotations.
