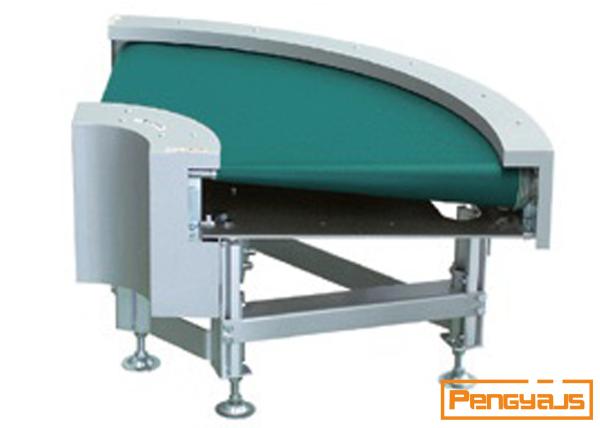

Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor
Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor
Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor
Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor
Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor
Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor
Specifications
Place of Origin :
shanghai
Brand Name :
pengya
Certification :
ISO
MOQ :
one unit
Price :
Please Contact Us For The Price
Packaging Details :
wood
Delivery Time :
about week days
Payment Terms :
T/T,
Supply Ability :
For more than a week
Description

Mb-g/Mini curve (90 degrees)Inner radius: 200mm. Good durability and stable curve transport.

Small belt conveyor is a belt conveyor series consisting of mini, washing, medium three types, all 17 kinds of machines. Rich changes, free design layout ,The small and medium frame is made of aluminum extruded material, which is not only beautiful in appearance but also light and solid in weight.The washable type is made entirely of stainless steel and washable.Small dynamic belt conveyors are also easy to operate because of their simplicity.

Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor

MB-G180degree
Effective belt width 400
The inside of the R 200
Move to send highly minimum is 400 and maximum is 900
Effective belt width Polyurethane resin belt (in line with food safety standards)
The motor capacity 90W
Maximum delivery volume Constant speed: 15kg/ set variable speed: 11kg/ set
power supply AC200w(three phase)

Mini Curve 90 Degrees 2000mm length 40W Curved Belt Conveyor

Ontology outline Mass (kg) 　
wide captain 200 300 400
45degrees 19 23 28
90degrees 26 33 40
180degrees 41 53 65
pulley diameter 200 300 400
&A &35 &29 &25
&B &72 &73 &73
&C &54 &51 &49

The characteristics of

The movement of the goods was smooth

Compact and simple construction. And because the belt pulley diameter is small, it can realize the smooth movement of goods.

The compact design (with an inner R of 200mm) is original up to the details. Alone led by the precision technology, with a variety of advanced technology to implement the production, the realization of high quality performance precision durability.

Quiet and clean design

Quiet and quiet. Good anti-vibration and clean design.

Ontology outline Mass (kg) 　
wide captain 200 300 400
45degrees 19 23 28
90degrees 26 33 40
180degrees 41 53 65
pulley diameter 200 300 400
ΦA Φ35 Φ29 Φ25
ΦB Φ72 Φ73 Φ73
ΦC Φ54 Φ51 Φ49

The belt width 　 BW200 　 BW300 　 BW400 　
power supply Variable speed than 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Constant speed1,2 1/120 2.9 3.5 2.7 3.3 2.7 3.2
1/60 5.8 7 5.5 6.6 5.3 6.4
.1/30 11.6 14 11 13.2 10.7 12.7
Variable speed1,2 1/120 1~2.9 1.2~3.5 0.9~2.7 1.1~3.3 0.9~2.7 1.1~3.2
1/60 1.9~5.8 2.3~7 1.8~5.5 2.2~6.6 1.8~5.3 2.1~6.4
.1/31 3.9~11.6 4.7~14 3.7~11 4.4~13.2 3.6~10.7 4.2~12.7
