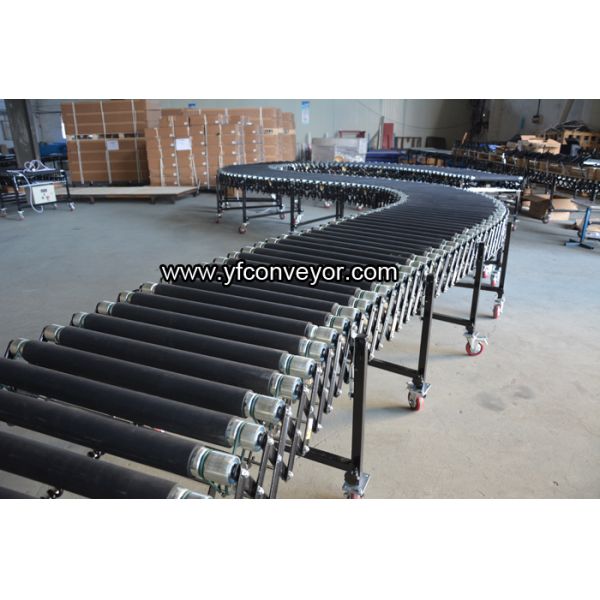

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Specifications

Place of Origin :

Ningbo,China

Brand Name :

YiFan

Certification :

Flexible Conveyors

Model Number :

FPR

MOQ :

1 unit

Price :

negotiable

Packaging Details :

plywood pallet,cardboard,bubble film

Delivery Time :

10-15 days

Payment Terms :

T/T

Supply Ability :

100 units/month

Delivery Port :

Ningbo,Shanghai

Load Capacity :

40kg/m

Material :

Rubber

Material Feature :

anti skiding

Type :

Roller Conveyor

Structure :

expandable conveyor

Condition :

New

Conveyor Width :

600mm

Conveyor Height :

700-1000 or 800-1200mm

Conveyor Length :

4m-20m

Roller Materials :

rubber coated steel

Roller Width :

600mm

Roller Diameter :

60mm

Variable Speed :

10-18m/min

Frequency Transfer :

DELTA brand

Motor Power :

60w per meter

Wheels :

4" swivel wheel with brakes

Description

Description

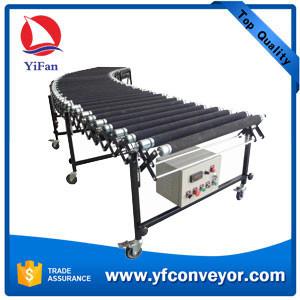

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

is an popular automatic roller conveyor with adjustable speed,height & direction,having enough power supply by one 60w mini motor(CHENGGANG brand) per meter.It is well qualified to intensively transport cartons,cases,boxes in the warehouse,workshop,factory,harbor,dock,etc.It can also be applied as packing line,temporary conveying line and goods distribution line.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

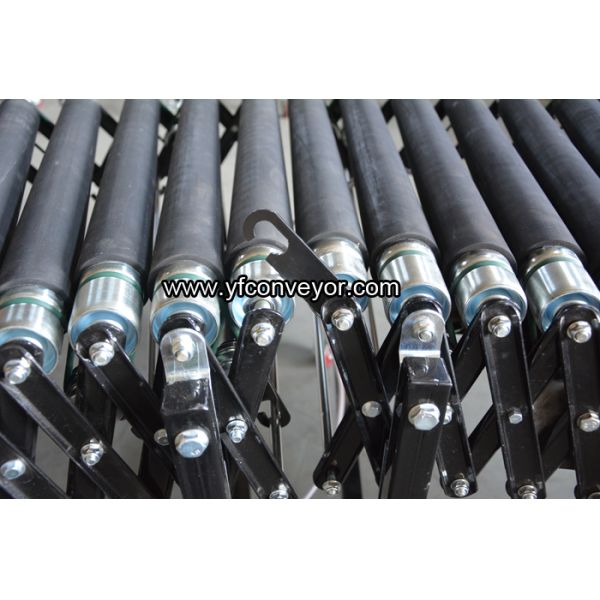

Dia 60mm rubber coated rollers with precise bearings guarantee fairly low noise and long life span

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

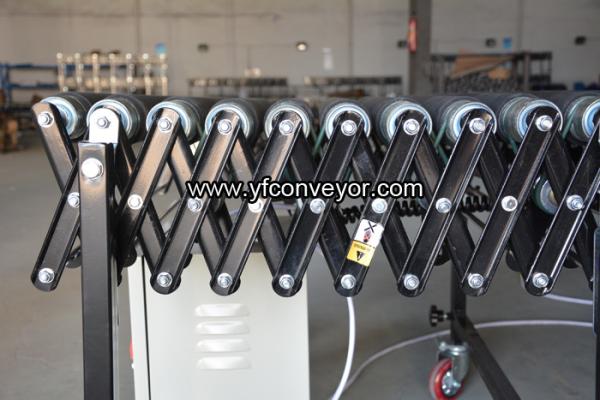

Curved joint plates with better figure and load

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

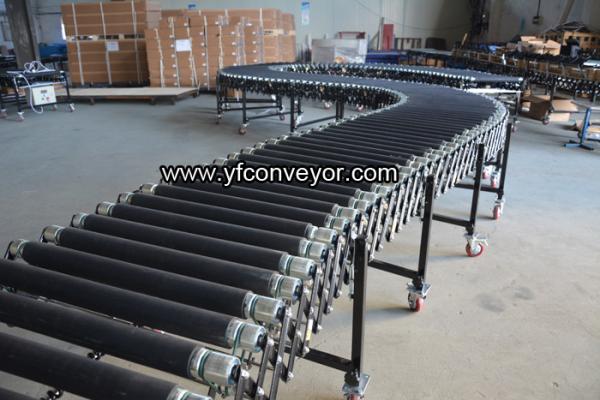

Can turn 180 degree bend at corner

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Easily and quickly joint two or more units by hooks

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Movable on lockable universal swivel wheels

Advantages:

EASY,SAFE,QUICK & EFFICIENT GOODS DELIVERY

Features

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

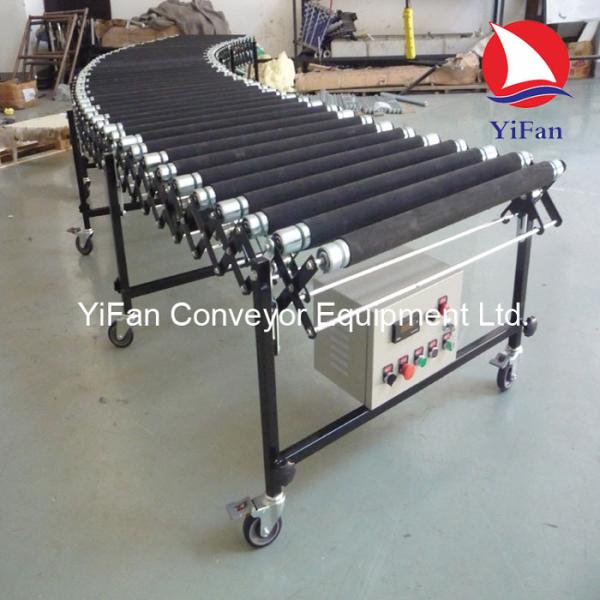

Controlled by one independent electric box,loading and unloading,two way operation.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Driving wheels with precise bearings guarantee low noise and long life span.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Φ50mm galvanized rollers are driven by high quality SIEGLING brand O ring PU belts.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Curved join plates with better figure and load.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

End package stop guard(can be take off if not needed.)

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

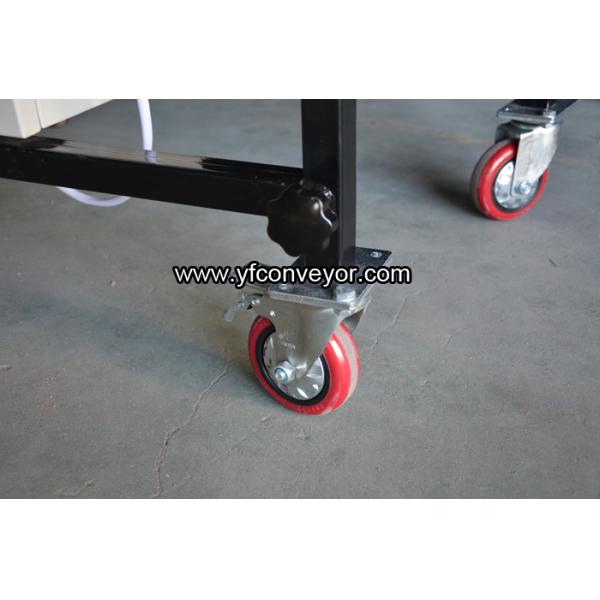

Movable on Dia 100mm swivel polyurethane casters with locks and adjust height by black knobs.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Join two or more units by hooks quickly and easily.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Optional skate wheel side guide.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Optional stainless steel 304 rollers

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Optional rubber coated rollers

Model List

Model	Close Length (mm)	Open Length (mm)	Width (mm)	Adjustable Height (mm)	Max.Load (kg/m)	Motor Power (w)
FPR-4	1700	4200	600	700-1000	40	240
FPR-5	2100	5200	600	700-1000	40	300
FPR-6	2500	6200	600	700-1000	40	360
FPR-7	2900	7200	600	700-1000	40	420
FPR-8	3300	8200	600	700-1000	40	480
FPR-9	3700	9200	600	700-1000	40	540
FPR-10	4100	10200	600	700-1000	40	600
FPR-11	4100	11200	600	700-1000	40	660
FPR-12	4500	12200	600	700-1000	40	720
FPR-13	5300	13200	600	700-1000	40	780
FPR-14	5700	14200	600	700-1000	40	840
FPR-15	6100	15200	600	700-1000	40	900
FPR-16	6500	16200	600	700-1000	40	960
FPR-17	6900	17200	600	700-1000	40	1020
FPR-18	7300	18200	600	700-1000	40	1080
FPR-19	7700	19200	600	700-1000	40	1140
FPR-20	8100	20200	600	700-1000	40	1200

Application

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Quickly loading cartons from warehouse to containers,trucks.

:https://youtu.be/Zhv8GOtUvPY

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Transport tea bags into elevator and lift down to ground floor.

: https://youtu.be/UZs9RlU7Jq4

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Conveying empty oil Jerry cans to stores

:https://youtu.be/SuC-3-ooB0w

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

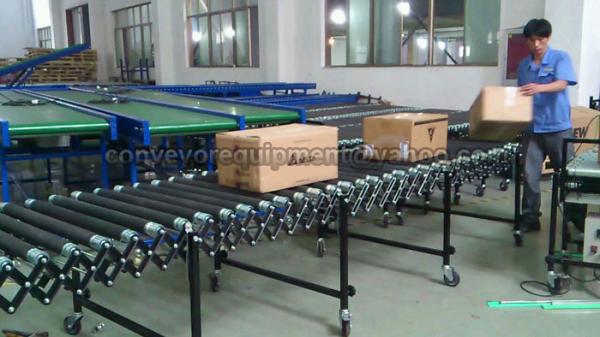

Conveying cartons in all kinds of distribution centers.

:https://youtu.be/XP-hg-LAeeQ

Packing and Shipping

Packing material is plywood pallet no need fumigation pallets.

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

What is the Max.Length can you make?
20m
Can we join two units to expand the system?
YES, quickly and easily join together by hooks
Can the width be customized?
YES
What is the Min.width do you have?
350mm
What is the Max.width do you have?
YES
Is the height adjustable?
YES, 700-1000mm or 800-1200mm
Can the height be customized?
YES
Do you have stainless steel 304 rollers?
YES
Do you have Rubber Coated rollers?
YES
Do you have gravity rollers?
YES
Do you have PVC rollers?
YES
Can this conveyor be operation in two way FORWARD & REVERSE?
YES
Is the speed controllable?
YES
How many KGS can this conveyor carry?
40KGS per square meter
What products can this conveyor be used to load?
Cartons,boxes with FLAT & HARD bottoms
What is the power of this conveyor?
Each meter with 60w motor
What is the voltage?
220V,1-Phase,50Hz
Can we add SENSOR at the end of the conveyor to stop the cartons automatically?
YES
How do you dispatch this conveyor?
Dispatch it completely
How many countries have you sell this conveyor to?
UK,America,France,Canada,Russia,Romania,Chile,Jordan,UAE,Spain,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc.
How long is the delivery time?
10-15 days
How long is the warranty?
1 year
Do you supply OEM & ODM service?
YES
Do you have user’s guide and maintenance instruction?
YES
What are the necessary spare parts we should keep?
O ring belts,motor,inverter,wheels,driven pulley,buttons

You may also interested in !

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Truck Loading Conveyor

http://www.yfconveyor.com/Products/Loading-&-Unloading-System/Automatic-trailer-van-truck-container-loading-and-unloading-conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Small Truck Loader

http://www.yfconveyor.com/Products/Loading-&-Unloading-System/Hot-Sale-Portable-Truck-Loading-Conveyor-for-Courier-Companies.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Telescopic Belt Conveyor for loading unloading containers

http://www.yfconveyor.com/Products/Loading-&-Unloading-System/Telescopic-Belt-Conveyor-for-container-loading-unloading.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Flexible Powered Roller Conveyor

http://www.yfconveyor.com/Products/Flexible-Conveyor/Flexible-Zinc-plated-Powered-Roller-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Flexible Gravity Roller Conveyor

http://www.yfconveyor.com/Products/Flexible-Conveyor/Flexible-Gravity-Zinc-Plated-Steel-Roller-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Flexible Gravity Skate Wheel Conveyor

http://www.yfconveyor.com/Products/Flexible-Conveyor/Flexible-Portable-Gravity-Steel-Skate-Wheel-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Aluminum PVC Belt Conveyor

http://www.yfconveyor.com/Products/Belt-Conveyor/Aluminum-PVC-Conveyor-Belt-Assembly-Line.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Heavy Duty Belt Conveyor for courier companies

http://www.yfconveyor.com/Products/Belt-Conveyor/Hot-Sale-Heavy-Duty-Belt-Conveyor-Used-in-Courier-Industry.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Inclined High Grip Belt Conveyor

http://www.yfconveyor.com/Products/Belt-Conveyor/Inclined-Good-Grip-Belt-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Angled Belt Conveyor with Flights

http://www.yfconveyor.com/Products/Belt-Conveyor/Inclined-Angled-PVC-Belt-Conveyor-with-Flights.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Motorized Roller Conveyor

http://www.yfconveyor.com/Products/Roller-Conveyor/Motorized-Chain-Driven-Roller-Conveyor-Systems.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Gravity Roller Conveyor on wheels

http://www.yfconveyor.com/Products/Roller-Conveyor/Portable-Gravity-Roller-Conveyor-Assembly-Line.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

90 Degree Bend Roller Conveyor

http://www.yfconveyor.com/Products/Roller-Conveyor/90-Degree-&-180-Degree-Curve-Gravity-Roller-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

90 Degree Bend Belt Conveyor

http://www.yfconveyor.com/Products/Belt-Conveyor/90-Degree-&-180-Degree-Curved-Belt-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Flex Move Plastic Chain Conveyor

http://www.yfconveyor.com/Products/Slat-Chain-Conveyor/FlexMove-Plastic-Plain-Chain-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Vertical Lift Conveyor

http://www.yfconveyor.com/Products/Other-Equipment/Z-Type-Vertical-Lift-Conveyor-used-to-lift-tea-bags-from-ground-floor-to-1st-floor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Z Type Modular Plastic Belt Conveyor

http://www.yfconveyor.com/Products/Mesh-Belt-Conveyor/Z-Type-Modular-Plastic-Belt-Conveyor.html

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Modular Plastic Mesh Belt Conveyor

http://www.yfconveyor.com/Products/Mesh-Belt-Conveyor/Stalinless-Steel-Modular-Plastic-Mesh-Belt-Conveyor.html

Product tags

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Name: Flexible Expandable Motorized Rubber Coated Roller ConveyorLoading Unloading Conveyor
Brand: YiFan
Price: 1 USD

Ask Latest Price

Product Detail

Place of Origin :

Ningbo,China

Brand Name :

YiFan

Certification :

Flexible Conveyors

Model Number :

FPR

MOQ :

1 unit

Price :

negotiable

Contact Supplier

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Active Member

9 Years

zhejiang, ningbo

Since 2014

Business Type :

Manufacturer

Main Products :

Truck Loading Conveyor, Telescopic Belt Conveyor, Flexible Conveyor

Total Annual :

80000000-10000000

Employee Number :

50~100

Certification Level :

Active Member

Discover similar products

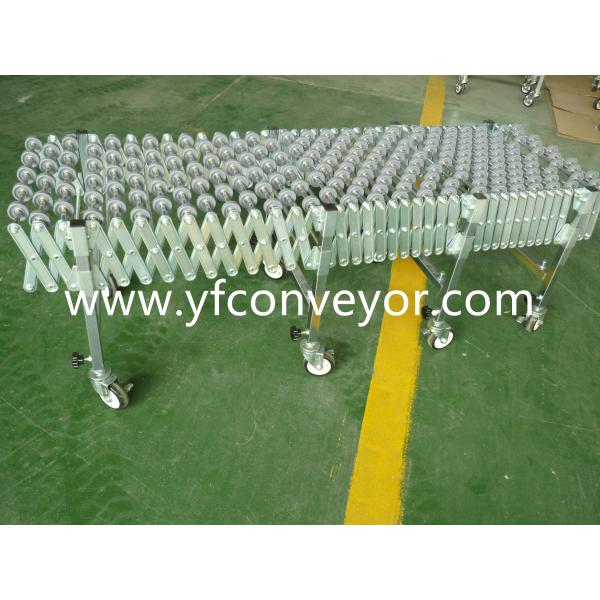

Factory Price Flexible Gravity Plastic Wheel Conveyor/ Hot Sale Flexible Gravity

Contact Now
Flexible Expandable Motorized Roller Conveyor,Powered Roller Conveyor

Contact Now
Unloading Conveyor,Gravity Wheel Conveyor

Contact Now
Flexible Powered Roller Conveyor with side guardrail

Contact Now
Economic Flexible Expandable Gravity ABS Skate Wheel Conveyor

Contact Now
Gravity Steel Wheel Conveyor,Expandable Wheel Conveyor,Flexible Roller Conveyor

Contact Now
Heavy Duty Gravity Flexible Steel Skate Wheel Conveyor,Warehouse Loading

Contact Now
Economic Flexible Expandable Gravity Steel Skate Wheel Conveyor

Contact Now
Warehouse Loading Conveyor,Gravity Unloading Conveyor

Contact Now
Expandable & Collapsible Plastic Double Roller Conveyor,Telescopic Gravity Twin

Contact Now

Find Similar Products By Category:

Supplier Homepage Products Flexible Conveyor

MachineU China Products Machinery Production line Assembly line

flexible expandable roller conveyor

expandable roller conveyor

flexible rollers conveyor

Flexible Expandable Motorized Rubber Coated Roller Conveyor,Loading Unloading Conveyor

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Factory Price Flexible Gravity Plastic Wheel Conveyor/ Hot Sale Flexible Gravity

Flexible Expandable Motorized Roller Conveyor,Powered Roller Conveyor

Unloading Conveyor,Gravity Wheel Conveyor

Flexible Powered Roller Conveyor with side guardrail

Economic Flexible Expandable Gravity ABS Skate Wheel Conveyor

Gravity Steel Wheel Conveyor,Expandable Wheel Conveyor,Flexible Roller Conveyor

Heavy Duty Gravity Flexible Steel Skate Wheel Conveyor,Warehouse Loading

Economic Flexible Expandable Gravity Steel Skate Wheel Conveyor

Warehouse Loading Conveyor,Gravity Unloading Conveyor

Expandable & Collapsible Plastic Double Roller Conveyor,Telescopic Gravity Twin

Find Similar Products By Category:
