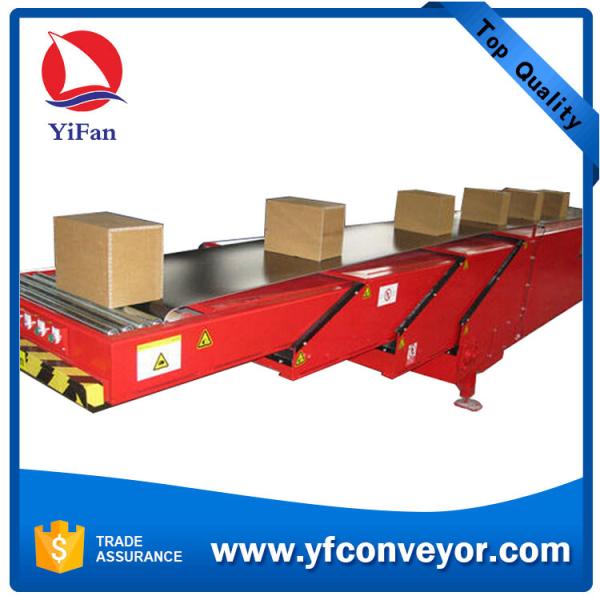

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
Specifications
Brand Name :
YiFan
Model Number :
TBC
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
20 units/month
Delivery Time :
30 days
Packaging Details :
cardboard,bubble film
Delivery Port :
Ningbo,Shanghai
Material :
Carbon steel
Material Feature :
Heat Resistant
Structure :
Belt Conveyor
Type :
Telescopic Conveyor
Condition :
New
Belt Width :
800mm
Belt Material :
PVC
Belt Speed :
10-30m/min
Belt Direction :
forward & reverse
Motor :
2.kw,0.55kw
Belt Height :
1250mm
Retract Length :
5.4m
Extension Length :
10m
Total Length :
15.4m
Load Capacity :
50kg/m
Power Supply :
380V,3-PH,50HZ (can be customized)
Description

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Model Base Length Extension Total Length Belt Width Conveyor Height Lift Angle Drawing
TBC-4S-5.4/10 5.4m 10m 15.4m 800mm 1.2m -5°~3° Download

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Technical Parameters

1. Belt Specs:L=34400mm,W=800mm,T=3mm,PVC,YONGLI brand

2. Belt Motor:2.2kw,SEW,German brand

3. Extend Motor:0.55kw,SEW,German brand

4. Belt Speed:30-50m/min

5. Extend Speed:5-10m/min

6. Load Capacity:≤60kg/m

7. Frequency Converter:SCHNEIDER,French brand

8. Main Electric Elements:SCHNEIDER,French brand

9. Voltage:380V,three phase,50Hz

10. Heavy Duty Wheels:diameter 200mm,load capacity 1ton/pcs

11. Profile Material:Q345,powder painting

12. Bearings:NSK and Harbin

13. Plummer Block:TR brand

14. Free Spare Parts:Bearing:5pcs,Carrier Roller:2pcs,12A Chain:1pcs,Emergency Stop Button:1pcs,switches:2pcs,Intermediate Relay:2pcs,Fuse Protector:2pcs,Over Travel Limit Switch:2pcs

Demonstration Video

Extend,retract,rise up and down.

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Video from YouTube: https://youtu.be/-dIo6BJ9XG4

Unloading cartons from trucks

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Video on YouTube: https://youtu.be/v0PT41OmalM

Detailed Pictures

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles

Other Optional Models

Retractable Belt Conveyor for Loading Unloading all size of trucks,vehicles
3 Stages Telescopic Belt Conveyor

Model

A

Fixed Length

(mm)

B

Extension

(mm)

C

Total Length

(mm)

H

Min Height

(mm)

Belt Width

(mm)

Max.Load

(kg/m)

Belt Speed

(m/min)
TBC-3S-4/5.4 4000 5400 9400 750 600/800 50 15-30
TBC-3S-4.5/6 4500 6000 10500 750 600/800 50 15-30
TBC-3S-5/6.9 5000 6900 11900 750 600/800 50 15-30
TBC-3S-5.4/7.3 5400 7300 12700 750 600/800 50 15-30
TBC-3S-6/8 6000 8000 14000 750 600/800 50 15-30
TBC-3S-6.5/8.3 6500 8300 15400 750 600/800 50 15-30
TBC-3S-7/9.6 7000 9600 16600 750 600/800 50 15-30

4 Stages Telescopic Belt Conveyor

Model

A

Fixed Length

(mm)

B

Extension

(mm)

C

Total Length

(mm)

H

Min Height

(mm)

Belt Width

(mm)

Max.Load

(kg/m)

Belt Speed

(m/min)
TBC-4S-4/7 4000 7000 11000 800 600/800 50 15-30
TBC-4S-4.5/8.5 4500 8500 13000 800 600/800 50 15-30
TBC-4S-5/9.5 5000 9500 14500 800 600/800 50 15-30
TBC-4S-5.4/10.3 5400 10300 15700 800 600/800 50 15-30
TBC-4S-6/12 6000 12000 18000 800 600/800 50 15-30
TBC-4S-6.5/12.8 6500 12800 19300 800 600/800 50 15-30
TBC-4S-7/14 7000 14000 21000 800 600/800 50 15-30

5 Stages Telescopic Belt Conveyor

Model

A

Fixed Length

(mm)

B

Extension

(mm)

C

Total Length

(mm)

H

Min Height

(mm)

Belt Width

(mm)

Max.Load

(kg/m)

Belt Speed

(m/min)
TBC-5S-6/15 6000 15000 21000 1000 600/800 50 15-30
TBC-5S-6/16 6000 16000 22000 1000 600/800 50

15-30
