Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Expandable Flexible Gravity Wheel Conveyor Machine
Specifications
Brand Name :
YiFan
Model Number :
FGW-P
Place of Origin :
Ningbo,Shanghai
MOQ :
1unit
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 units/month
Delivery Time :
10-15 days
Packaging Details :
pallet
Close Length :
860mm
Open Length :
6900mm
Effective Width :
600mm
Adjustable Height :
600-800mm
Max.Load :
80kg/m
Wheel Material :
plastic
MOQ :
10m
Condition :
New
Type :
flexible conveyor
Warranty :
1 Year
Material Feature :
FIRE RESISTANT
Description

Product Description

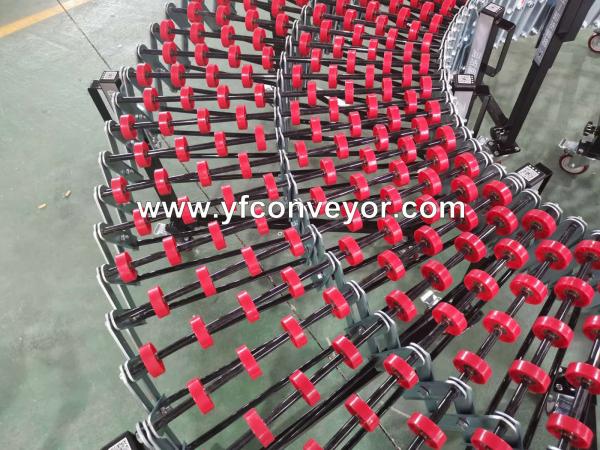

Skate Wheel Expandable Flexible Gravity Conveyor is often chosen to convey small and medium sized flat-bottom items in harbor,dock,warehouse and storehouse,factory,etc.

With universal wheel caster and foot brake, push hand to ensure safe operation, stable cargo and easy to change the direction of transport to the end.The skate wheel conveyor is light and easy to move.Conveyors greatly facilitate the transport of goods.The crossed skateboard wheels ensure that the goods transported will be automatically oriented and will not fall from the side.

Model List

Model Close Length(mm) Open Length(mm) Effective Width(mm) Adjustable Height(mm) Max.Load

Wheel

Material
FGW-HP2 860 2400 600 600-800 80kg/m plastic
FGW-HP3 1200 3600 600 600-800 80kg/m plastic
FGW-HP4 1540 4700 600 600-800 80kg/m plastic
FGW-HP5 1880 5800 600 600-800 80kg/m plastic
FGW-HP6 2220 6900 600 600-800 80kg/m plastic

Product Features

1.It is extendable,retractable and bendable.

Expandable Flexible Gravity Wheel Conveyor Machine

2.Convenient movement with brake universal casters firm, easy to use, can be moved anywhere at any time.

Expandable Flexible Gravity Wheel Conveyor Machine

3.The conveyor supports legs and drums.The height of the supporting leg of the conveyor can be adjusted, and the caster can roll in any direction.

Expandable Flexible Gravity Wheel Conveyor Machine

4. ABS engineering plastic roller has the characteristics of lightweight structure, widely used in the need of frequent movement and handling occasions, and low cost, beautiful appearance.​

Expandable Flexible Gravity Wheel Conveyor Machine

5.High quality alloy expansion plate has strong corrosion resistance and is not easy to be deformed and broken.

Expandable Flexible Gravity Wheel Conveyor Machine
