Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
Specifications
Brand Name :
YiFan
Model Number :
FGW-P
Place of Origin :
Ningbo,Shanghai
MOQ :
10m
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
10-15 days
Packaging Details :
pallet/cartons
Material :
Plastic
Conditon :
New
Load Capacity :
50kg/m
Adjustable Height :
800-1200mm
Standard Height :
700-1000mm
Close Length :
860mm
Open Length :
6900mm
Structure :
Flexible Conveyor
Effective Width :
600mm
Material Feature :
long life span
Type :
Gravity Conveyor
Description

Product Description

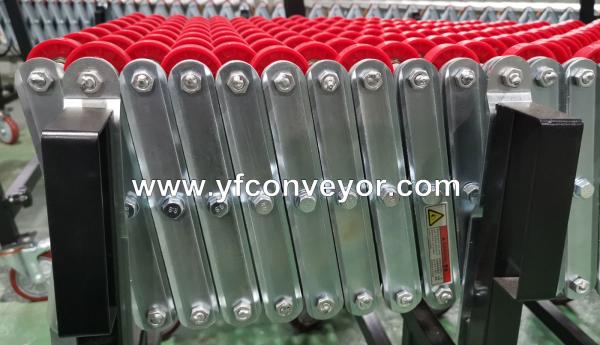

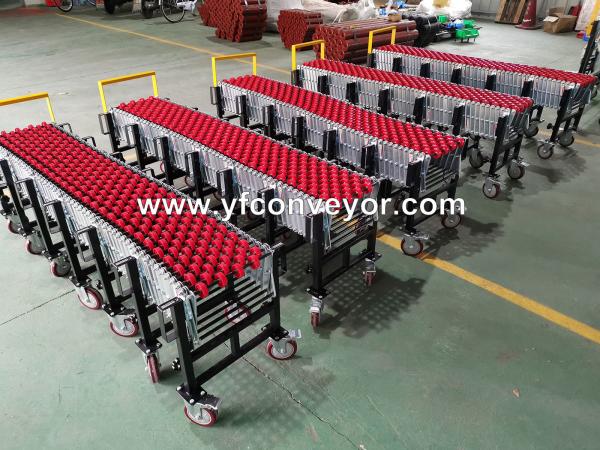

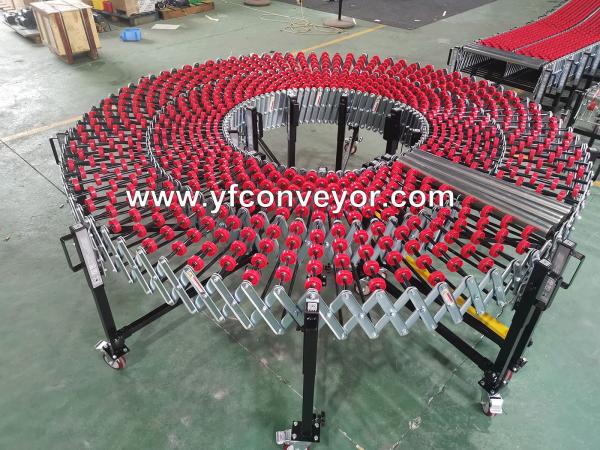

Gravity flexible plastic skate wheels conveyor is designed for handling of small-and medium-sized cartons/boxes. It is made of ABS material.The structure remains integrated when laying out according to complete expansion of single curve or composite curve remains integrated.These conveyors are built in more than one sections which stow in when not in use to occupy little floor space. When extended these expandable conveyor are highly useful in loading / unloading small dock level vans to large trailer.

Model List

Model Close Length(mm) Open Length(mm) Effective Width(mm) Adjustable Height(mm) Max.Load

Wheel

Material
FGW-P2 860 2400 600 600-800 80kg/m plastic
FGW-P3 1200 3600 600 600-800 80kg/m plastic
FGW-P4 1540 4700 600 600-800 80kg/m plastic
FGW-P5 1880 5800 600 600-800 80kg/m plastic
FGW-P6 2220 6900 600 600-800 80kg/m plastic



Product Advantages

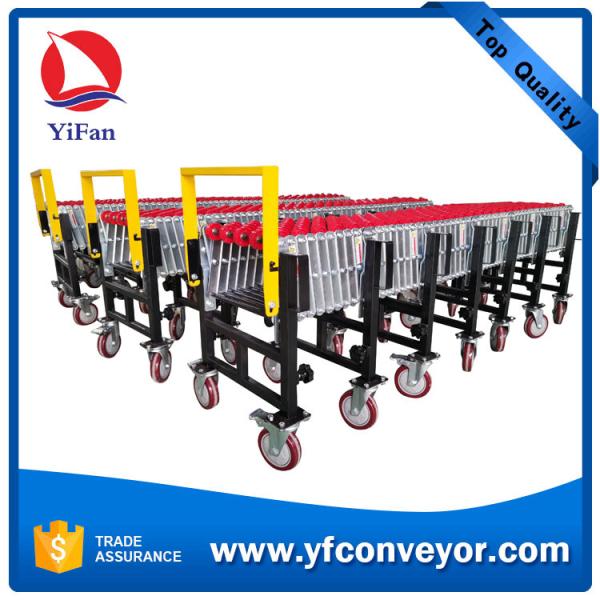

1.Convenient Movement
the universal caster with brake is firm and convenient to use and can be moved anytime and anywhere.
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor

Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor

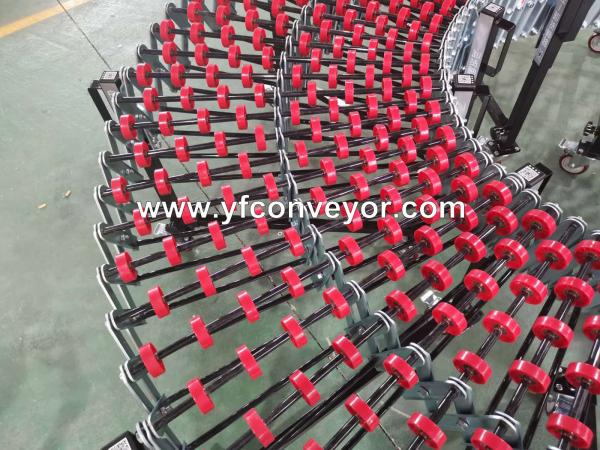

2.ABS engineering plastic roller
Indusrial ABS shell material,beautiful and wear-resiatant,can effectively resist external pressure,inlaid with high-quality bearings,smooth transportation.
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor

Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor

3.Adjustable Height
Simply turn the locking knob to raise or lower the conveyor bed height.
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor

4.With strong double H legs
Heavy duty legs for longer service life.
Conveyor Gravity Skate Wheel Conveyor ABS Wheels Telescopic Conveyor
