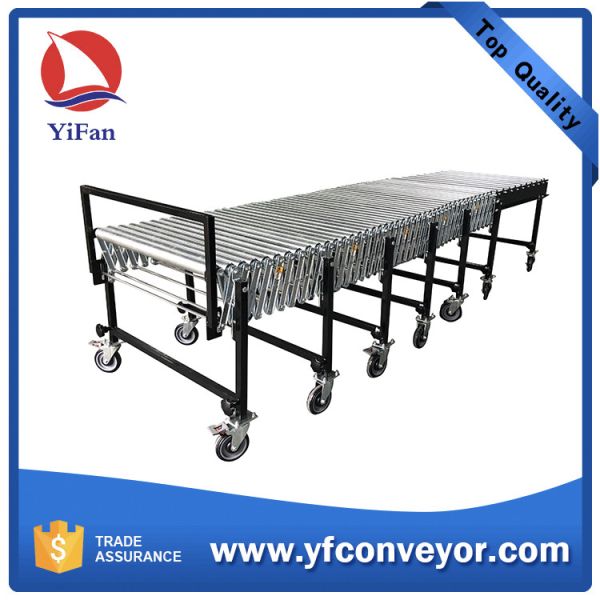

Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Gravity Expandable Flexible Steel Roller Conveyor
Specifications
Brand Name :
YiFan
Model Number :
FGR
Certification :
Flexible Conveyors
Place of Origin :
Ningbo,China
MOQ :
1 unit
Price :
optional
Payment Terms :
T/T,L/C
Supply Ability :
100 units/month
Delivery Time :
2 weeks
Packaging Details :
plywood pallet/cardboard/bubble film
Load Capacity :
50kg/m
Material :
Carbon steel
Material Feature :
Good Load Capacity:50kg
Structure :
Roller Conveyor
Type :
Gravity Conveyor
Condition :
New
Conveyor Height :
700-1000 or 800-1200mm
Conveyor Length :
optional
Roller Materials :
galvanized steel
Roller Width :
600-800mm
Casters :
lockable casters
Description

Description

Gravity Expandable Flexible Steel Roller Conveyor are designed for versatility.They are exceptional for truck loading and unloading,retail stores,shipping areas,loading docks and plant floors.

Features

  • Self Tracking-Cartons follow the twists and turns of the conveyor path without using engineered curves.
  • Detachable Square Tubing Legs-Exclusive medium-duty square tubing legs for longer service life and reduce packing size.
  • Adjustable Height-Simply turn the locking knob to raise and lower the conveyor bed height.

Specifications

Gravity Flexible Roller Conveyors applied in loading docks/plant floors/shipping areas

Conveyor Height:700-1000mm or 800-1200mm

Conveyor Length:1m-10m,optiona

Load Capacity:50kg/m

Roller Materials:galvanized steel

Roller Width:600-800mm

Roller Diameters:50mm

Casters:lockable casters

Structure:Roller Conveyor

Type:Gravity Conveyor

Condition:New

Model Number:FGR-M

Brand Name:YiFan

Gravity Expandable Flexible Steel Roller Conveyor

Model List

Model Open Length Close Length Effective Width Adjustable Height Load Capacity Roller Dia Roller Material
FGR-M4.2 4200mm 1700mm 600mm 700-1000mm 50kg/m 50mm galvanized steel
FGR-M5.2 5200mm 2100mm 600mm 700-1000mm 50kg/m 50mm galvanized steel
FGR-M6.2 6200mm 2500mm 600mm 700-1000mm 50kg/m 50mm galvanized steel
FGR-M7.2 7200mm 2900mm 600mm 700-1000mm 50kg/m 50mm galvanized steel
FGR-M8.2 8200mm 3300mm 600mm 700-1000mm 50kg/m 50mm galvanized steel
FGR-M9.2 9200mm 3700mm 600mm 700-1000mm 50kg/m 50mm galvanized steel
FGR-M10.2 10200mm 4100mm 600mm 700-1000mm 50kg/m 50mm galvanized steel


Other Similar Types

Gravity Expandable Flexible Steel Roller Conveyor

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

  • What is the Max.Length can you make?
  • 20m
  • Can we join two units to expand the system?
  • YES, quickly and easily join together by hooks
  • Can the width be customized?
  • YES
  • Is the height adjustable?
  • YES, 700-1000mm or 800-1200mm
  • Can the height be customized?
  • YES
  • Do you have stainless steel 304 rollers?
  • YES
  • Do you have PVC rollers?
  • YES
  • How many KGS can this conveyor carry?
  • 50KGS per square meter
  • What products can this conveyor be used to load?
  • Cartons,boxes with FLAT & HARD bottoms
  • How do you dispatch this conveyor?
  • Dispatch it completely
  • How many countries have you sell this conveyor to?
  • UK,America,France,Canada,Russia,Romania,Chile,Jordan,UAE,Spain,Qatar,Kenya,South Africa,Iran,Pakistan,Vietnam,Philippines,etc.
  • How long is the delivery time?
  • 10-15 days
  • How long is the warranty?
  • 1 year
  • Do you supply OEM & ODM service?
  • YES
  • Do you have user’s guide and maintenance instruction?
  • YES
  • What are the necessary spare parts we should keep?
  • wheels,screws
