Waterproof 500mm Motorized Conveyor Pulley
Waterproof 500mm Motorized Conveyor Pulley
Waterproof 500mm Motorized Conveyor Pulley
Waterproof 500mm Motorized Conveyor Pulley
Waterproof 500mm Motorized Conveyor Pulley
Waterproof 500mm Motorized Conveyor Pulley
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Electric Drum Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
China , Cangzhou
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Motorized Pulley
Application :
Coal mining industry, cement, harbor, crushing and screening ind
Welding :
Double-End Circular Seam Auto-Welding
Surface :
rubber coated,ceramic lagging
Surface treatment :
Anodize,Black Oxide,black oxidation
Process :
Turning,casting-machining-packaging,Machining
Design :
PRO ENGINEER,SOLID WORKS
Feature :
Water proof,convenient adjustment,Dust proof
Description

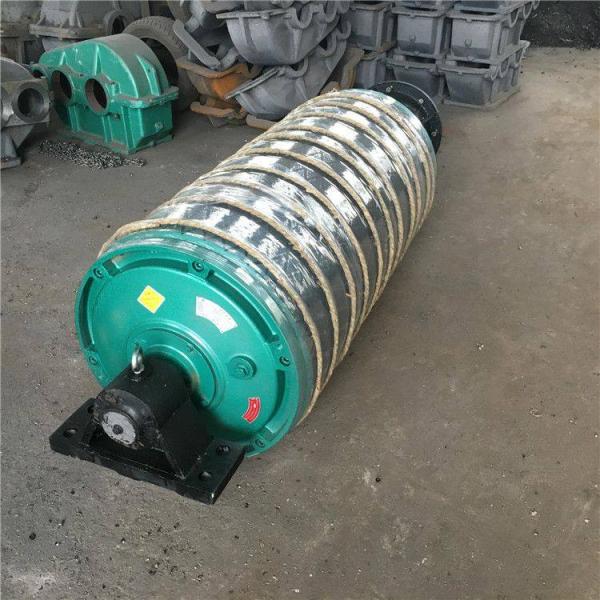

Waterproof 500mm Motorized Conveyor Pulley
Driving Pulley Electric Pulley Head Conveyor Pulley with Inside and out Side Motor

The motorized pulley has many advantages such as compact structure,small footprint,easy installation,longerlife,high transmission efciency,low noise,smooth and reliabe operation.It can work in the wet,muddy,dusty and other harsh conditions.

The explosion-proof electric roller is used as the driving device of conveying machinery in the explosive mixture environment formed by combustible gas, gas, dust, etc.
The product is an ideal driving device for various fixed belt conveyors. It adopts planetary cycloid reducer inside of the housing, which has the characteristics of large bearing capacity, strong overload capacity, stable transmission, low noise, long service life, etc. It can meet the requirements of various backstop and rubber coating.

The turning pulley is used for changing the direction of the belt running or increasing the wrap angle between theconveyor belt and the driving pulley As per different carrying capacities,the bend pulley can be divided into three calegories:light duty,medium duty and heaw cluty.The pulley which is used for extending the contact surface,is usualy used for belowor equal to 45 degree bending.The sutace treatment of the bend puley can be smooth stel and fat rubber lagging.

Working condition:
  1. -15ºC~40ºC The ambient temperature is - 15 ºC ~ 40 ºC;
  2. 1000meters Altitude not more than 1000M;
  3. 60ºC The temperature of conveying materials shall not exceed 60 ºC;
  4. frequency:50Hz;
  5. Voltage: 380/660V, 660/1140V.
Characteristics:
It can contain all electrical components that are easy to cause sparks in the flameproof enclosure;
  1. Compact structure, small space;
  2. Easy to use and maintain, operating safely and reliable, longer service life
  3. It can meet the requirements of various backstop, braking, rubber coating, etc.

conveyor pulley Description

Model No. Belt Width Width of blade AOL(G) Pulley Dia. L1 L2
DCCD500S-1 500 400 1200

500
630
800
1000
1250
1400
1600
500
630
800
1000
1250
1400
1600

326
338
356
376
400
416
436
336
348
366
386
410
426
446

195
258
342
441
563
636
735
189
252
336
335
557
630

729
DCCD650S-1 650 600 1300
DCCD800S-1 800 800 1500
DCCD1000S-1 1000 1000 1700
DCCD1200S-1 1200 1200 1900
DCCD1400S-1 1400 1400 2100
DCCD1600S-1 1600 1600 2300
DCCD1800S-1 1800 1800 2500
DCCD2000S-1 2000 2000 2700
DCCD2200S-1 2200 2200 2900


Type Belt width(mm) Standard diameter(mm) Length(mm)
drive pulley , tail pulley, snub pulley, take up pulley etc. 500 500 Length of pulley according to different belt width and accept custamized size
650 500~630
800 630~1000
1000 800~1150
Material: steel, SS
Bearing Model: UCP,UCT or others
Bearing Brand: HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life: ≥30000 hours
Diameter: D320mm to D630mm
Belt Width: B500mm to B1000mm
Application: recycling industry
power industry
parcel transport industry
petro industry
coal mining industry
cement concrete industry
machining industry
Supply Ability: 1pcs per day
Certificate: ISO9001:2015, BV, SGS


Professional advantage:
More than 10 years’ professional producing experience.
Quality Assurance,price advantage:
We have our own factory, you can get a competitive and reasonable price with high quality.
Service advantage:
We can reply your Enquiry timely and effective.
High efficiency:
Once our customers release their orders, we will arrange the production and shipping fastly .
