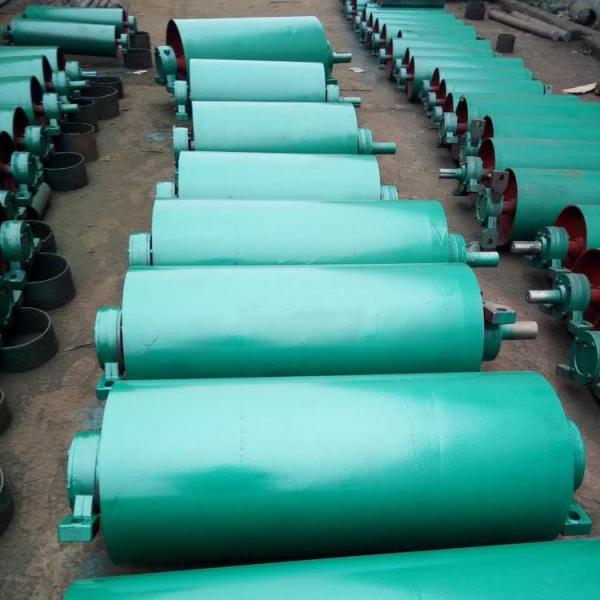

Stainless Steel Conveyor Bend Pulley
Stainless Steel Conveyor Bend Pulley
Stainless Steel Conveyor Bend Pulley
Stainless Steel Conveyor Bend Pulley
Stainless Steel Conveyor Bend Pulley
Stainless Steel Conveyor Bend Pulley
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Bend Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
10ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Bend Pulley,Conveyor tail pulley
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Frame material :
Stainless Steel,steel or as required,Carbon Steel
Shapes :
flat roll, cambered or crowned roller pulley, anilox roll.
Type :
Belt Conveyor
Structure :
Roller Conveyor,Belt Conveyor,Chain Conveyor,Conveyor System
Sample :
available,Please contact our representatives for more details
Specification :
socket,Union,Tee
Usage :
Convey Water,Oil Gas Water Industrial
Description
Stainless Steel Conveyor Bend Pulley
Mining Belt Conveyor Driving Bend Head Tail Drum Pulley

Pulleys are one of the most important component of the conveyor system. These are designed to perform tasks like providing tension to belt,power transmission and belt tracking. Conveyor systems performance and reliability depends on the pulley.

Pulleys are used for directional change in vertical plane in conveyor system & to form an endless loop for continuous operation. The necessary drive power is transmitted through pulleys. The pulleys are basically of two types Drive pulley and Non drive pulley.

Snub pulley is used to achieve higher angle of wrap on the drive pulley thereby increasing the traction. It also reduces the belt tension maximizing the life of the conveyor component.It is mounted close to the drive pulley on the return side of the belt.

Feature of motorized drive conveyor drum pulley for conveyor

1.Steady running, reliable quality and reduce maintenance;

2.Less movement longitudinally, rotating smoothly, extends the life span;

3.Various bearing housing and sealing structure are available for the customers choice;

4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

5.Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,

low shaking and less noise.


conveyor pulley Description

SPECIFICATIONS
Product name belt conveyor pulley drum
Type Transmission drum, Redirection drum, Driving Electric drum
Length 200mm-1800mm
Materials Carbon steel, Stainless steel, Rubber
Surface treatment Smooth, Diamond grooved lagging, Herringbone lagging, Ceramic lagging
Welding Submerged arc welding
Bearing SKF, NTN and other brands at home and abroad
Structure Tube,shaft,self-aligning bearing,bearing seat/house,hub, locking bushing,end disc

Bend Pulley (smooth surface & rubber surface)
Belt Width Standard Diameter of Pulley (mm)
500 mm 250,315,400,500
650 mm 250,315,400,500,630
800 mm 250,315,400,500,630,800,1000,1250
1000 mm 250,315,400,500,630,800,1000,1250,1400
1200 mm 250,315,400,500,630,800,1000,1250,1400
1400 mm 315,400,500,630,800,1000,1250,1400
1600 mm 400,500,630,800,1000,1250,1400
1800 mm 400,500,630,800,1000,1250,1400
2000 mm 500,630,800,1000,1250,1400
2200 mm 630,800,1000,1250,1400
2400 mm 800,1000,1250,1400

Head pulleys

The head pulley is located at the discharge point of the conveyor. It usually drives the conveyor and often has a larger diameter than other pulleys. For better traction, the head pulley is usually lagged (with either rubber or ceramic lagging material).

Tail and wing pulleys

The tail pulley is located at the loading end of the belt. It comes with either a flat face or a slatted profile (wing pulley), which cleans the belt by allowing material to fall between the support members.

Snub pulleys

A snub pulley improves the traction of the drive pulley, by increasing its belt wrap angle.

Drive pulleys

Drive pulleys, which can also be the head pulley, are driven by a motor and power transmission unit to propel the belt and material to the discharge.

Bend pulleys

A bend pulley is used for changing the direction of the belt.

Take-up pulley

A take-up pulley is used to provide the belt with the proper amount of tension. Its position is adjustable.

Stainless Steel Conveyor Bend Pulley

Stainless Steel Conveyor Bend Pulley
