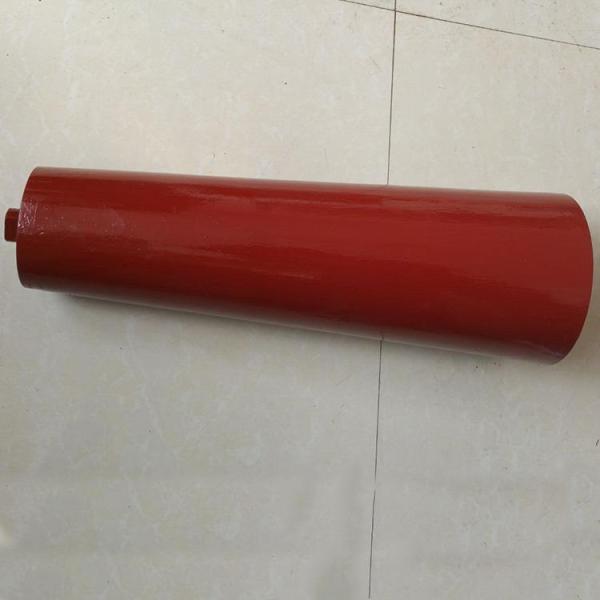

Td75 Conveyor Steel Roller

Nickel Mining Duty Steel Rollers Industrial Conveyor Rollers for Nickel Materials Transportation

Rollers are important parts of the belt conveyor with various type and large quantity. Rollers are used to support the belt, reduce the belt running resistance and make the belt verticality not exceed the certain limit to ensure the belt running stably. Rollers are classified as steel roller, impact roller, UHMWPE roller and HPDE roller according to its material class.

Steel Roller SXBMD-TG-GZ

Steel roller is the most widely used components with largest quantity in conveyor industry. With mature processing procedure, lower cost, reliable and durable, widely used in construction materials, metallurgy, mining, light industry, electric power , grain

and other industries of bulk materials transport.

Product Specifications

1.Diameter range: (Φ89/102/108/114/127/133/140/152/159/165/178/194/219)

Length range: (190mm-3500mm)

National and non-standard idlers

2.Types of Rollers: trough type roller, lower flat roller, impact roller, the upper roller friction, the friction reduction roller,conical core up-regulating idler,tapered down roller.

3. Applied in Special working conditions: non-magnetic roller, double anti roller.

steel conveyor roller parameter

Conveyor Carrier Roller Features:

• Manufactured by steel pipe especially for high precision roller, compared with ordinary steel pipe, the diameter and wall thickness tolerance,bending degree,ovality is very little which can make the roller have minimum radial play eccentricity,strong load,low shaking and less noise
• High precision and brightness cold drawn shaft with 1045 material
• Rollers are fitted with deep groove 2RS and 2Z bearing with C3 and C4 internal clearance with HRB,SKF,NSK,TNT,FAG brands.
• Bearing Housing formed by punching many times which can assure high precision. The wall thickness is 1-2mm thicker than DIN standard which can increase 40% stability and roller’s carrying capacity. It can make the roller not deformed even working under overload environment and increase roller’s lifetime.
• TK contact multiple labyrinth seals made of nylon,ABS have great advantage in water and dust resistance
