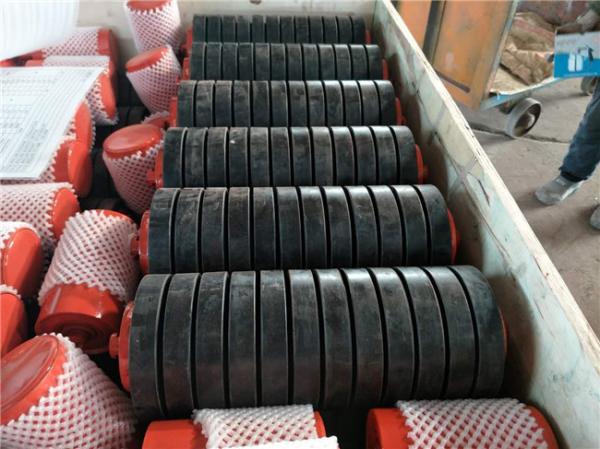

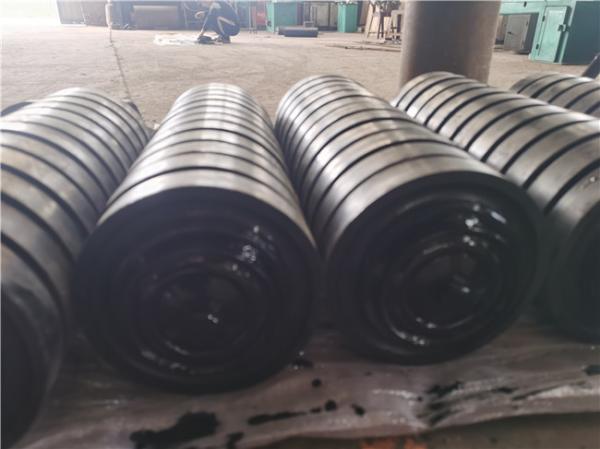

Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
Specifications
Brand Name :
QINYI
Model Number :
Coated Impact Conveyor Roller
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
10ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Coated Impact Conveyor Roller
Application :
Coal Mining Industry
Shaft diameter :
rubber lagging idler roller
Name :
Mining industry belt conveyor carrying idler impact roller
Roller Length :
190mm to 3500mm
Bearing type :
Deep groove ball bearing with C3/C4
Roller Tube :
Q235 Carbon Steel
Surface :
Rubber lined/rubber coating/rubber lagging/rubber rings
Description

Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing

Rubber Coated Disc Return Idler Impact Conveyor Steel Roller

Lagged or rubber-coated rollers are based upon steel, stainless steel or solid plastic rollers and are typically covered with a layer of rubber to improve grip with a conveyor belt or, in the case of roller conveyors, grip and/or protection of the product carried.

All our lagged/coated rubber rollers are of the highest quality from the roller preparation and application of the correct material through the curing process at the correct temperatures and pressures in dedicated autoclaves to the grinding and final surface finish.

There are a huge range of rubber compound options that can be applied from the food industry-standard to general industrial use. Varying levels of shore hardness and grip as required. The grip can be further enhanced by grooving the lagged material in a range of patterns should this be necessary.

As with our solid plastic and welded mild or stainless steel rollers the same scope of roller face options apply including parallel, crown or taper with and with tracking or drive band grooves if required.

Detailed conveyor roller idler feature:


1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

conveyor roller Description

Product name shock absorb rubber impact carrier roller
Place of Origin Jiangsu, China (Mainland)
Brand Name Double Arrow
Standard CEMA / JIS / DIN / ISO
Certification ISO9001/BV/SGS
Material steel, SS
Bearing Model UCP,UCT or others
Bearing Brand HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life ≥30000 hours
Diameter D500mm to D2000mm
Belt Width B500mm to B3000mm
Application coal, metallurgy, machinery, ports, electrical, chemical, foundry, building materials, food and other fields.
Special can be customized according to customer or design for customer
Supply Ability 500pcs per day
Guarantee 12 months
Contract manufacture OEM services offered, design services offered
Business type Factory, welcome to visit

Features of stamped bearing housings:

1. Excellent anti-corrosion performance. The roller body and the seal are made of polymer materials, which are corrosion resistant. Used in corrosive occasions, the service life can reach more than 5 times that of ordinary rollers. The specifications of polymer anti-corrosion rollers include 4 series, including φ89, φ108, φ133, φ159, etc., with more than 30 varieties. Non-standard roller accessories can also be manufactured according to user requirements. There are two types of roller body materials: MC nylon and polyurethane, which are selected according to the characteristics of corrosive substances in the use environment.

2. Wear resistance and long service life. The special polymer material for the roller body has mechanical properties similar to bronze, has good wear resistance, and has good self-lubricating properties, and does not damage the belt.

3. Reasonable structure and reliable sealing. The roller is equipped with two seals with high manufacturing accuracy. The gap is coated with special grease, which can effectively prevent corrosive media such as dust, gas, liquid, etc. from entering the roller and damaging the bearing.

4, light weight, small rotation inertia. The special polymer material for rollers is light in weight, and its specific gravity is one-seventh of that of steel. The roller accessories made of this material are about one-half of the weight of ordinary rollers, and the rotational inertia is small. The friction between is small.

Disc Return 190mm Conveyor Impact Roller With Deep Groove Ball BearingDisc Return 190mm Conveyor Impact Roller With Deep Groove Ball Bearing
