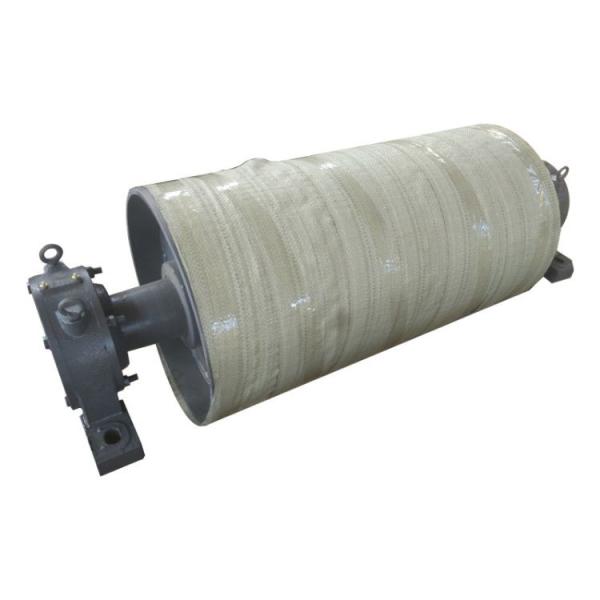

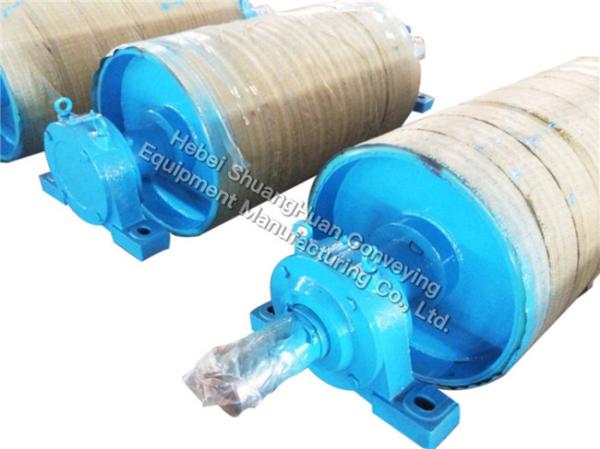

6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Drive Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Bend Pulley
Application :
Coal mining industry, cement, harbor, crushing and screening ind
Length :
Depends on the belt width
Special :
Can Be Customized According to Customer or Design
Belt material :
steel,Rubber Plastic,POM/PP/PVC/PU/Rubber
Belt Width :
B500mm to B3000mm
Warranty :
Unavailable,12 Months,12~36 Months
Specification :
Belt Width B500mm to B2200mm
Description
6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor​
Conveyor Drive Pulley Diamond Groove Lagging Sheet

Plain Rubber Pulley Lagging VS Diamond Rubber Pulley Lagging
Plain rubber pulley lagging is generally used on non-drive pulleys to offer greater traction for the conveyor belt without excessively increasing friction, which could cause the belt to wear faster.
Diamond rubber pulley lagging, another rubber lagging product, which is generally applied to pulleys that need more friction to the conveyor belt. The diamond grooved rubber is more flexible comparing with plain rubber.
Gaps in the rubber allow the lagging excess space to bend and move with the conveyor belt. The increased flexibility allows the rubber to maintain contact with the same part of the belt and prevents the belt from sliding. And the diamond grooved rubber lagging can drop water off the pulley, further get the belt away from slipping and material build up.


Why Use Pulley Lagging?

Pulley lagging is a layer of material bonded to the surface of a conveyor pulley. The pulley lagging is used to protect the conveyor pulley surface from damaging, increase the friction with the conveyor belt, extend the service life of the conveyor belt and conveyor pulley.
There are several different types of pulley lagging, such as plain rubber pulley lagging sheet, diamond pulley lagging sheet and ceramic pulley lagging sheet. Each type of pulley lagging sheet has different variations, specifications and are used for a variety of purposes.
Key Features of steel pipe bend pulley drum

(1). Steady running, reliable quality and reduce maintenance;

(2). Less movement longitudinally, rotating smoothly, extends the life span;
(3). Various bearing housing and sealing structure are available for the customers choice;
(4). Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
(5). Manufacturing by steel pipe specially for of high precision roller, ensuring the strong
load, low shaking and less noise.

conveyor pulley Description

Product name conveyor drum pulley
Place of Origin hebei, China (Mainland)
Standard CEMA / JIS / DIN / ISO
Certification ISO9001/BV/SGS
Material steel, SS
Bearing Model UCP,UCT or others
Bearing Brand HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life ≥30000 hours
Diameter D500mm to D2000mm
Belt Width B500mm to B3000mm
Application coal, metallurgy, machinery, ports, electrical, chemical, foundry, building materials, food and other fields.
Special can be customized according to customer or design for customer
Supply Ability 50pcs per day
Guarantee 12 months
Contract manufacture OEM services offered, design services offered
Business type Factory, welcome to visit

Drum Pulleys
30''-63'' FACE WIDTH
DIA. XT HUB QD HUB MAX.BORE FACE WIDTH (INCHES)
10'' XT25 SF 2 1/2 30,32,36,38,40,42,44,46,51
XT30 E 3
XT35 F 3 1/2
12'' XT25 SF 2 1/2 30,32,36,38,40,42,44,46,51
XT30 E 3
XT35 F 3 1/2
14'' XT25 SF 2 1/2 30,32,36,38,40,42,44,46,51
XT30 E 3
XT35 F 3 1/2 30,32,36,38,40,42,44,46,51,54,57,60,63
XT40 JS 4
16'' XT25 SF 2 1/2 30,32,36
XT30 E 3 30,32,36,38,40,42,44,46,51,54,57,60,63
XT35 F 3 1/2
XT40 JS 4
XT45 MS 4 1/2 38,40,42,44,46,51,54,57,60,63
18'' XT25 SF 2 1/2 30,32
XT30 E 3 30,32,36,38,40,42,44,46,51,54,57,60,63
XT35 F 3 1/2
XT40 JS 4
XT45 MS 4 1/2
XT50 NS 5 38,40,42,44,46,51,54,57,60,63
20'' XT25 SF 2 1/2 30,32,36
XT30 E 3 30,32,36,38,40,42,44,46,51,54,57,60,63
XT35 F 3 1/2
XT40 JS 4
XT45 MS 4 1/2
XT50 NS 5 32,36,38,40,42,44,46,51,54,57,60,63
24'' XT30 E 3 30,32
XT35 F 3 1/2 30,32,36,38,40,42,44,46,51,54,57,60,63
XT40 JS 4
XT45 MS 4 1/2
XT50 NS 5
XT60 PS 6 36,38,40,42,44,46,51,54,57,60,63
30'' XT30 E 3 30,32,36
XT35 F 3 1/2 30,32,36,38,40,42,44,46,51,54,57,60,63
XT40 JS 4
XT45 MS 4 1/2
XT50 NS 5
XT60 PS 6
XT70 WS 7 44,46,51,54,57,60,63
XT80 WS 8 60,63
36'' XT35 F 3 1/2 30,32,36
XT40 JS 4 30,32,36,38,40,42,44,46,51,54,57,60,63
XT45 MS 4 1/2
XT50 NS 5
XT60 PS 6
XT70 WS 7 36,38,40,42,44,46,51,54,57,60,63
XT80 WS 8 54,57,60,63


Drive/Head Pulley – A conveyor pulley used for the purpose of driving a conveyor belt. Typically mounted in external bearings anddriven by an external drive source.
Return/Tail Pulley – A conveyor pulley used for the purpose of redirecting a conveyor belt back to the drive pulley.
Tail pulleys can utilize internal bearings or can be mounted in external bearings and are typically located at the end of the conveyor bed.
Snub Pulley – A conveyor pulley used to increase belt wrap around a drive pulley, typically for the purpose of improving traction.
Take - Up Pulley– A conveyor pulley used to remove slack and provide tension to a conveyor belt. Take-Up pulleys are more common to conveyors of longer lengths.
Bend Pulley – A conveyor pulley used to redirect the belt and provide belt tension where bends occur in the conveyor system.

Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: carbon steel, Rubber , nylon etc.
Belt width: from 300mm to 2400mm


6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor6205 6306 Bearing Rubber Coated Conveyor Drive Pulley For Harbor
