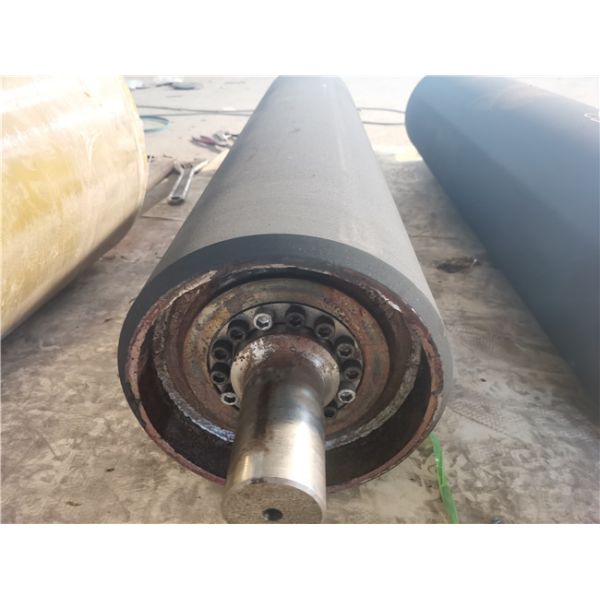

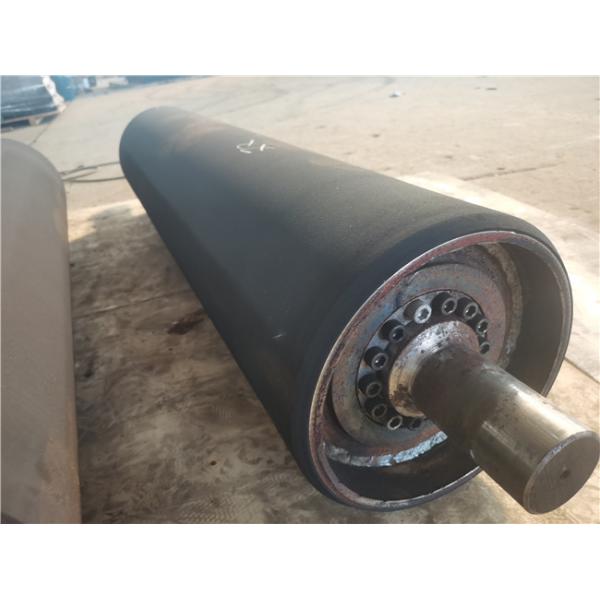

Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Specifications
Brand Name :
QINYI
Model Number :
Rubber Belt Conveyor Head Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
China , Cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Rubber Belt Conveyor Pulley
Length :
B450mm to B2200mm
Type :
Flat Belt,Carrying Roller,Head drive pulley
Speed :
1000T/h
Welding :
Mixed Gas Shielded Arc Welding
Application :
mine,Coal Mining,Industry
Applicable industries :
Construction works ,Manufacturing Plant,Building Material Shops
Bearing :
NSK,HRB,Ball Bearing
Description
Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
Rubber Lagging Drum Driving Conveyor Pulley for Chemical Fertilizer Plant

Pulley slide lagging are constructed of specially compounded wear resistant rubber, integrally molded and vulcanized under high pressure to a heavy gauge steel backing plate which is preformed to the drum diameter. Diamond groove and spaces on the surface can increase traction and friction greatly, meanwhile, it’s function of self-cleaning.

Reduce Maintenance Costs

Offer superior traction - Slide lagging rubber compounding and diamond pattern grooves offer max. Traction, which can solve the problem of belt slipping.

Prolong service life- compared to cold bonding lagging method, the slide lagging fixed on the pulley surface by retainers, avoid the lagging material cracks from the metal surface. Clients don't need to cleaning drum surface when repair or replace the bad lagging materials.

Reduce Downtime

Easy operation and installation - the slide lagging can be do without removing drum from conveyor system. No need to clean up drum surface ( to bonding lagging type, clean up drum surface is very important to ensure the bonding performance)

Fast replacement - It’s more convenient and easier to replace the lagging pads when need to maintenance conveyor system, because the retainer has welded on drum surface, clients just need to take down the old / bad lagging pads, then replace the new one is ok.

The driving drum pulley of an ordinary belt conveyor is generally composed of an independent motor, a reducer, and a drum. This type of driving structure has a large bearing range, but the body is heavy and covers a large area. It is not suitable for the narrow space at the top of the coal mixing tank. Therefore, the built-in electric drum can be used. Because the motor and reducer are built into the drum body, it has the characteristics of compact structure, small size, light weight, and neat appearance. It can be used in a small on-site working space, but due to multiple The belt conveyor needs to change direction continuously, can convey different materials separately, and the transportation volume is large, which determines that the drive mechanism of multiple equipment must have sufficient transportation performance and can change directions frequently to meet the needs of on-site production operations;

conveyor pulley Description

Material: steel, SS
Bearing Model: UCP,UCT or others
Bearing Brand: HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life: ≥30000 hours
Diameter: D168mm to D219mm
Belt Width: B450mm to B2200mm
Application: recycling industry
power industry
parcel transport industry
petro industry
coal mining industry
cement concrete industry
machining industry
Special: can be customized according to customer or design for customer
Supply Ability: 50pcs per day
Certificate: ISO9001:2008, BV, SGS

Description

conveyor pulley,wing pulley,tail pulley,self-cleaning pulley,Heavy Duty Wing Pulleys
Color customized
Pipe Length as customer request or international standard
lagging material plain
Application industry Mining,Steel mill,Cement plant,Power plant,Chemical Plant,Sea Port,Storage
Standard DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc.
Pulley/Core Diameter - The outside diameter of the cylindrical body of a conveyor pulley, without coating.
Finish Diameter - The outside diameter of a coated pulley (core diameter + 2 times the coating/wrap thickness).
Face Width - The length of a pulley's cylindrical body. This area is intended to act as the contact surface for the conveyor belt.
Wall/Rim Thickness- The initial thickness of the tube, pipe, or formed plate that makes up the cylindrical body of the pulley.
End Disks - The plates welded on the ends of a pulley which act as the medium between the hub and rim.
Crown/Profile- A change in the shape of the pulley face designed for the purpose of enhancing belt tracking.
Shaft/Axle - The mounting mechanism for the pulley assembly.
Hub - The point of connection between the shaft and end disk or pulley wall.
Bore Diameter - The inner diameter of a pulley at the point where the shaft is inserted
Bearing Centers - The distance between the center lines of each bearing race in which a pulley is mounted.
Hub Centers - The distance between the center line of each hub contact surface.
Safety Factor - The capacity of a system or component to perform beyond its expected load

Self Cleaning 1000T/H Rubber Lagging Pulley For Chemical PlantSelf Cleaning 1000T/H Rubber Lagging Pulley For Chemical Plant
