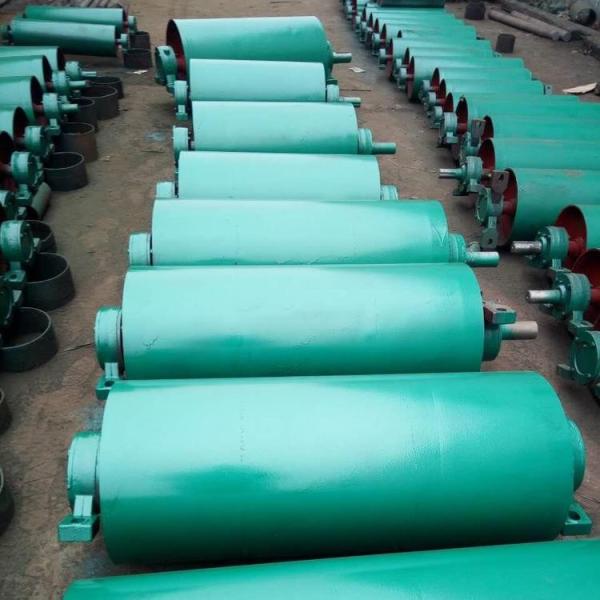

Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry
Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry
Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry
Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry
Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry
Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Bend Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Bend Pulley
Application :
Coal mining industry, cement, harbor, crushing and screening ind
Sample :
available,Please contact our representatives for more details
Packing :
Plastic Bag+Carton (Pallet with large quantity),pallet or as the customers' requirements
Length :
Depends on the belt width
Surface treatment :
Black Painting,polish matte or mirror,pickled or polished
Weight :
midium,460g
Specification :
socket,Union,Bushing
Description

Mining Motorized 650mm Conveyor Bend Pulley For Cement Industry

Mining Motorized Lagging Belt Conveyor Bend Pulley Drum Conveyor Pulley

Our drive pulley is divided into steel smooth pulley and rubber lagging drive pulley.

The steel smooth pulley is generally used on the small volume and no slope conveyor, but requires lower environment humidity, while the surface of the rubber lagging drive pulley has large friction coefficient, which can provide a greater driving force and increase the service life of the pulley and belt, suitable for the conveyor used under high humidity environment , long distance and large volume. Now the rubber lagging drive pulley is widely applied in drive pulley.

The rubber lagging drive pulley can be divided into hot casting rubber and cold wrapping rubber according to the procedure

Key Features of steel pipe bend pulley drum

(1).Steady running, reliable quality and reduce maintenance;

(2).Less movement longitudinally, rotating smoothly, extends the life span;
(3).Various bearing housing and sealing structure are available for the customers choice;
(4).Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
(5).Manufacturing by steel pipe specially for of high precision roller, ensuring the strong
load, low shaking and less noise.

conveyor pulley Description

Parameter of steel pipe bend pulley drum
Type

Belt width

(mm)

Standard diameter

(mm)

Length

(mm)

Driving idler pulley

 500 500

Length of pulley

depends on the

width of conveyor

belt
650 500~630
800 630~1000
1000 800~1150
1200 800~1150
1400 1000~1350
1600 1150~1600
1800 1150~1800
2000 1350~2000
2200 1600~2200
2400 1800~2400

Material: steel, nylon, SS, ceramic, PVC, UHMWPE, HDPE
Bearing Model: 6204,6205,6305,6306,6307,6308
Bearing Brand: HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life: ≥30000 hours
Diameter: D38mm to D200mm
Belt Width: B450mm to B2200mm
Application: recycling industry
power industry
parcel transport industry
petro industry
coal mining industry
cement concrete industry
machining industry
Standard CEMA/JIS/DIN/Australia
Special: can be customized according to customer or design for customer
Supply Ability: 1000pcs per day
Certificate: ISO9001:2008, BV, SGS,TUV

Drive/Head Pulley – A conveyor pulley used for the purpose of driving a conveyor belt. Typically mounted in external bearings anddriven by an external drive source.

Return/Tail Pulley – A conveyor pulley used for the purpose of redirecting a conveyor belt back to the drive pulley.

Tail pulleys can utilize internal bearings or can be mounted in external bearings and are typically located at the end of the conveyor bed.
Snub Pulley – A conveyor pulley used to increase belt wrap around a drive pulley, typically for the purpose of improving traction.
Take - Up Pulley– A conveyor pulley used to remove slack and provide tension to a conveyor belt. Take-Up pulleys are more common to conveyors of longer lengths.

Bend Pulley – A conveyor pulley used to redirect the belt and provide belt tension where bends occur in the conveyor system.

Type conveyor DTII, TD75
Bearing NO: 6204/6205//6306/6307/6308 etc
Material: carbon steel, Rubber , nylon etc.
Belt width: from 300mm to 2400mm

Mining Motorized 650mm Conveyor Bend Pulley For Cement IndustryMining Motorized 650mm Conveyor Bend Pulley For Cement Industry
