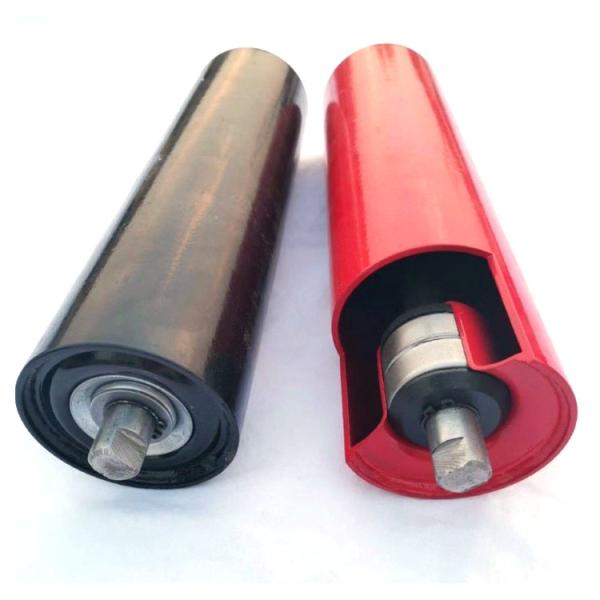

Q235 Warehouse Conveyor Steel Roller For Belt Conveyor
Q235 Warehouse Conveyor Steel Roller For Belt Conveyor
Q235 Warehouse Conveyor Steel Roller For Belt Conveyor
Q235 Warehouse Conveyor Steel Roller For Belt Conveyor
Specifications
Brand Name :
QINYI
Model Number :
Steel Idler Rollers
Certification :
ISO9001,CE,ISO CCC CE,FDA
Place of Origin :
china , cangzhou
MOQ :
5000 Ton/Tons per Month
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor steel Roller idler
Length(mm) :
190mm-3500mm(National and non-standard idlers)
Roller pipe :
Q235/carbon steel
Function :
Material Conveying Accessories
Structure :
Roller Conveyor
Application :
Coal Mining Industry
Shaft Materia :
C45 steel
Description

Belt Conveyor Idler Roller Carrying Steel Roller For Belt Conveyor

Roller support the belt and are guaranteed to rotate freely and easily under load. They are the most important components of the conveyor and represent a considerable value of the whole coast. The correct sizing of the roller is fundamental the guarantee of the plant efficiency and economy in use.


Products Features:


Using the international standard design and manufacturing technology, our company improves the production and design of idlers to a higher level. The idler produced by our company enjoy minimum revolving resistance, long life, small maintaining work and high carrying capability. 1.The company adopts special fine welding steel pipe for idler. The roundness is controlled in special tolerance scope.

2.The axle is according to standard tolerance and manufactured by fine cold drag steel.

3.The bearing housing has been manufactured after stamping many times by the imported cold griped steel.

4.The idler shell and bearing housing have been welded together by the automatic welding machine. Then it forms a whole
high strength structure.
5.The bearing is the big roving crack, deep groove ball ,double sealing bearing.

steel conveyor roller parameter

Standard Diameter Length scope ( mm) Bearings Type
(Min~Max)		 Idler's Shell Wall Thickness
mm Inch
63.5 2 1/2 150~3500 204 3.0mm~3.5mm
76 3 150~3500 204 205 3.0mm~4.0mm
89 3 1/3 150~3500 204 205 3.0mm~4.0mm
102 4 150~3500 204 205 305 3.5mm~4.0mm
108 4 1/4 150~3500 204 205 305 306 3.5mm~4.0mm
114 4 1/2 150~3500 205 206 305 306 3.5mm~4.5mm
127 5 150~3500 204 205 305 306 3.5mm~4.5mm
133 5 1/4 150~3500 205 206 207 305 306 3.5mm~4.5mm
140 5 1/2 150~3500 205 206 207 305 306 3.5mm~4.5mm
152 6 150~3500 205 206 207 305 306 307 308 4.0mm~4.5mm
159 6 1/4 150~3500 205 206 207 305 306 307 308 4.0mm~4.5mm
165 6 1/2 150~3500 207 305 306 307 308 4.5mm~6.0mm
177.8 7 150~3500 207 306 307 308 309 4.5mm~6.0mm
190.7 7 1/2 150~3500 207 306 307 308 309 4.5mm~6.0mm
194 7 5/8 150~3500 207 307 308 309 310 4.5mm~6.0mm
219 8 5/8 150~3500 308 309 310 4.5mm~6.0mm


Product Overview

1. Brand: shuanghuan
2, Lift time: 30000-50000hours
3, Output: 500000 pcs/ year.
4.Warranty: One year.
5. Roller Diameter: 60-219mm.
6. Roller Length: 150- 3500mm.
7. Roller Pipe: Q235 carbon steel, with good state-of roundness and straightness,and the pipe will be machined before welding with the bearing house to ensure well-balanced rotation.
8. Shaft: Q235 or #45, made of cold-drawn bright round steel.
9. Bearing: Ball bearing C3 , HRB,SKF,NSK, .
10. Seals: Labyrinth seals, have a good water proof and dustproof.
11.Welding: Mixed gas shielded arc welding end.
12. Color: According to your requirement.
13. Surface: Powder coated /galvanized.
14. Standard: ISO/Australia/CEMA/JIS/DIN.
15.Package: Free Fumigation Wooden Packing Cases.
