Rubber Coated Disc Return Idler Impact 200MM Steel Conveyor Rollers
Rubber Coated Disc Return Idler Impact 200MM Steel Conveyor Rollers
Rubber Coated Disc Return Idler Impact 200MM Steel Conveyor Rollers
Rubber Coated Disc Return Idler Impact 200MM Steel Conveyor Rollers
Specifications
Brand Name :
QINYI
Model Number :
Conveyor Belt Impact Roller
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
10ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Conveyor Belt Impact Roller
Application :
Mining Transport, Power Plant
Material :
Rubber
Name :
Mining industry belt conveyor carrying idler impact roller
Marketing Type :
Ordinary Product
Structure :
Roller Conveyor,Belt Conveyor
Material feature :
Heat Resistant,Fire Resistant,Oil Resistant
Length :
200-2800mm
Description

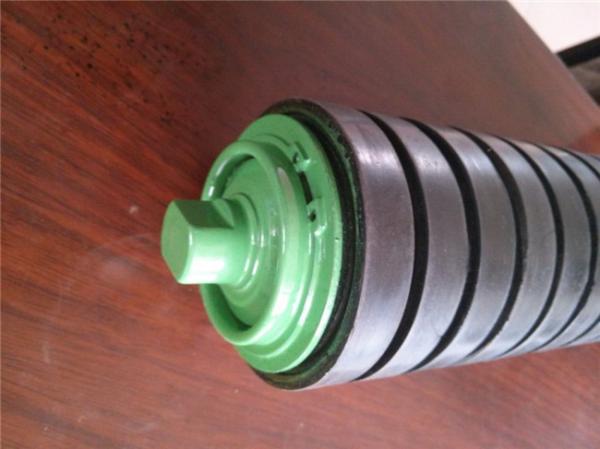

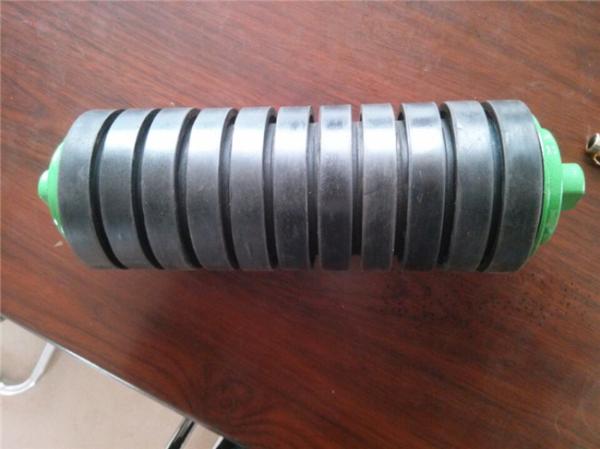

Rubber Coated Disc Return Idler Impact Conveyor Steel Roller

Impact idler will help the service life of the belt conveyor to be longer, because it can reduce the impact of the falling materials on to the belt. The Impact Roller was explored for corrosive environment, such as coal washing plant, coking plant, chemical plant. The body and seals of impact conveyor rollers are all made by polymer.

The impact conveyor roller production process is as following:

1.Pipe Cutting: After the treatment, the pipes are cut into fixed length;

2.End Boring: In this step, boring is processed. With our automatic double end boring machine, we make sure that the roller pipe is treated under the same level;

3.Bearing Welding: Two bearings are pressed into the pipe, and welded together with the pipe;

4.rubber: As cutomers requirement we will make rubber lined, rubber rings or rubber coated on the pipe.

5.Shaft Cutting: Similar to the pipe cutting process, the shafts are cut into same length and the section is flat;

6.Shaft Milling: At this stage, the shaft is treated at two ends, making into the flat ends;

7.Final Assembling: In this last step, the pipe and the shaft are pressed into a steel tube conveyor roller with the automatic press assembling machine.

conveyor roller parameter

SPECIFICATIONS
Product Name

 Rubber Coated Disc Return Idler Impact Conveyor Roller
Troughing angle
10°,20°,30°,35°,45°
Tube
Steel Q235(GB), Q345(GB), stainless steel (201,304), rubber, nylon, HDPE, UHMWPE
Roller Diameter
89-194mm
Bearing
Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance, with brand SKF, ,NSK,HRB...
Bearing Housing/Seat
Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard

Lubricating Oil
Grade 2 or 3 long-lasting lithium greasae

Welding
Mixed gas shielded arc welding end

Painting
Powder coated,Spray paint,Galvanized,Rubber lagging.

Main Features

1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10) Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments

Rubber Coated Disc Return Idler Impact 200MM Steel Conveyor Rollers

Rubber Coated Disc Return Idler Impact 200MM Steel Conveyor Rollers
