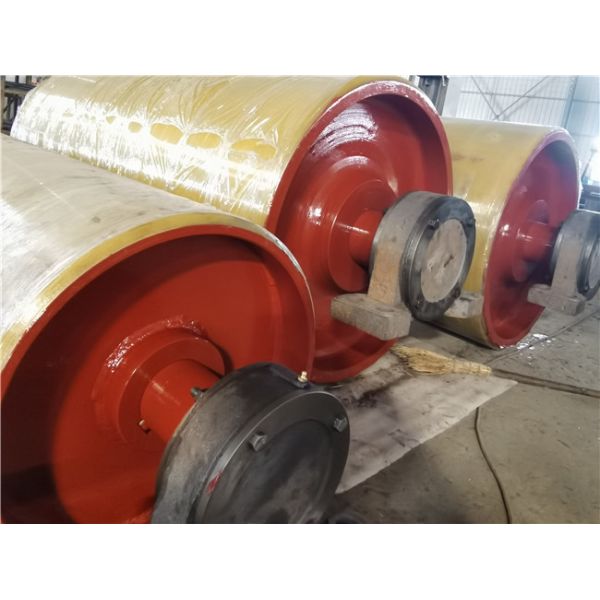

Heavy Duty Steel Bend Pulley FDA For Belt Conveyors
Heavy Duty Steel Bend Pulley FDA For Belt Conveyors
Heavy Duty Steel Bend Pulley FDA For Belt Conveyors
Heavy Duty Steel Bend Pulley FDA For Belt Conveyors
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Bend Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
China , Cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Heavy Duty Conveyor Steel Pulley Bend Pulley Drum
Shapes :
flat roll, cambered or crowned roller pulley, anilox roll.
Sample :
available,Please contact our representatives for more details
Specification :
Plug,socket,Union,Bushing
Function :
Material Conveying Accessories
Weight :
midium,460g
Color :
Requirements,red,Black
Usage :
Conveyor Belt System
Description

Heavy Duty Conveyor Steel Pulley Bend Pulley Drum For Belt Conveyors

What is the conveyor bend pulley function? The bend pulley is an very important component of conveyor belt machine. we provide all types and sizes of bend pulleys for conveyor belt system.

It is usually installed ate the tail part and the vertical take up equipment when the conveyor belt direction need to to 180°bending. It will be installed above the take-up equipment part while 90°bending.

The bend pulley function:

1. It is used for changing the direction of the conveyor belt.

2. It will increase the wrap angle between the conveyor belt and pulley drum.

3. It will increase the friction between the belt and pulleys.

4. It will be used to prevent the tape from slipping.

conveyor pulley Description

Bend Pulley
Belt Width Standard Diameter of Pulley
500 mm 250mm,315mm,,400mm,,500mm,
650 mm 250mm,315mm,400mm,500mm,630 mm
800 mm 250mm,315mm,400mm,500mm,630mm,800mm,1000mm,1250mm
1000 mm 250mm,315mm,400mm,500mm,630mm,800mm,1000mm,1250mm,1400mm
1200 mm 250mm,315mm,400mm,500mm,630mm,800mm,1000mm,1250mm,1400mm
1400 mm 315mm,400mm,500mm,630mm,800mm,1000mm,1250mm,1400mm
1600 mm 400mm,500mm,630mm,800mm,1000mm,1250mm,1400mm
1800 mm 400mm,500mm,630mm,800mm,1000mm,1250mm,1400mm
2000 mm 500mm,630mm,800mm,1000mm,1250mm,1400mm
2200 mm 630mm,800mm,1000mm,1250mm,1400mm
2400 mm
800mm,1000mm,1250mm,1400mm


Our Pulley Feature:

1. The belt conveyor drum/ pulley is made by large seamless steel.

2. Use flame cutting machine to precisely cut tube.

3. Weld the pulley inner disc with professional welding machine.

4. Weld the shaft sleeve and disc with the positioner.

5. Process the outside circle with large drum lathe to guarantee the even wall thickness.

6. We select #45 round steel and sleeve to ensure the concentricity and reduction for the eccentric shaft force.

7. Equip the inner bearing enlargement device to avoid bearing damage from beating.

8. We will make the static balance inspection when the belt speed exceeds 2.5m/s.

9. We can produce different type,different standard pulley according to customers’ request.

Heavy Duty Steel Bend Pulley FDA For Belt ConveyorsHeavy Duty Steel Bend Pulley FDA For Belt Conveyors
