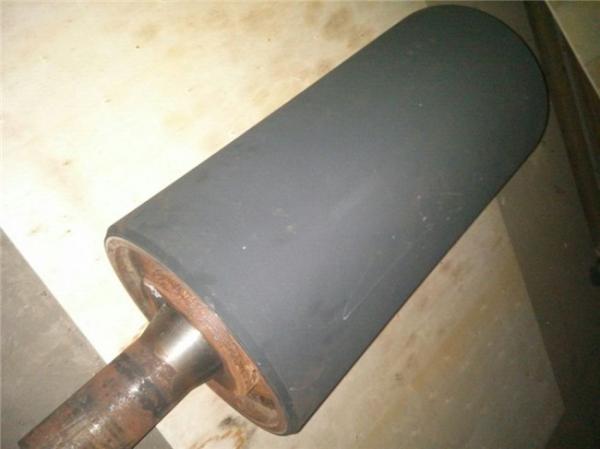

Head Tail 38mm Dia Conveyor Bend Pulley Drum For Heavy Duty Industrial Transport Line
Head Tail 38mm Dia Conveyor Bend Pulley Drum For Heavy Duty Industrial Transport Line
Head Tail 38mm Dia Conveyor Bend Pulley Drum For Heavy Duty Industrial Transport Line
Head Tail 38mm Dia Conveyor Bend Pulley Drum For Heavy Duty Industrial Transport Line
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Bend Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
China , Cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Bend Pulley
Shapes :
flat roll, cambered or crowned roller pulley, anilox roll.
Sample :
available,Please contact our representatives for more details
Specification :
Plug,socket,Union,Bushing
Model NO. :
standard or customized
Weight :
midium,460g
Color :
Requirements,red,Black
Feature :
High Wear Resistant,low rolling resistance
Description
Head Tail Bend Pulley Drum For Heavy Duty Industrial Transport Conveyor Line

What is the conveyor bend pulley function? The bend pulley is an very important component of conveyor belt machine. we provide all types and sizes of bend pulleys for conveyor belt system.

It is usually installed ate the tail part and the vertical take up equipment when the conveyor belt direction need to to 180°bending. It will be installed above the take-up equipment part while 90°bending.

The bend pulley function:

1. It is used for changing the direction of the conveyor belt.

2. It will increase the wrap angle between the conveyor belt and pulley drum.

3. It will increase the friction between the belt and pulleys.

4. It will be used to prevent the tape from slipping.

conveyor pulley Description

Material: steel, nylon, SS, ceramic, PVC, UHMWPE, HDPE
Bearing Model: 6204,6205,6305,6306,6307,6308
Bearing Brand: HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life: ≥30000 hours
Diameter: D38mm to D200mm
Belt Width: B450mm to B2200mm
Application: recycling industry
power industry
parcel transport industry
petro industry
coal mining industry
cement concrete industry
machining industry
Standard CEMA/JIS/DIN/Australia
Special: can be customized according to customer or design for customer
Supply Ability: 1000pcs per day
Certificate: ISO9001:2008, BV, SGS,TUV

Material
NR / SBR
Tensile Strength. N/mm2
17.5
Specific Gravity
1.2 +/- 0.5
Adhesive strength between ceramic tile and rubber. Mpa
> 6.6
Hardness, Shore A
60 +/- 5
Akron abrasion
0.193 cm3
Elongation. % min.
450
Size of Ceramic tiles
20*20*7mm

Our Pulley Feature:

1. The belt conveyor drum/ pulley is made by large seamless steel.

2. Use flame cutting machine to precisely cut tube.

3. Weld the pulley inner disc with professional welding machine.

4. Weld the shaft sleeve and disc with the positioner.

5. Process the outside circle with large drum lathe to guarantee the even wall thickness.

6. We select #45 round steel and sleeve to ensure the concentricity and reduction for the eccentric shaft force.

7. Equip the inner bearing enlargement device to avoid bearing damage from beating.

8. We will make the static balance inspection when the belt speed exceeds 2.5m/s.

9. We can produce different type,different standard pulley according to customers’ request.

Head Tail 38mm Dia Conveyor Bend Pulley Drum For Heavy Duty Industrial Transport LineHead Tail 38mm Dia Conveyor Bend Pulley Drum For Heavy Duty Industrial Transport Line
