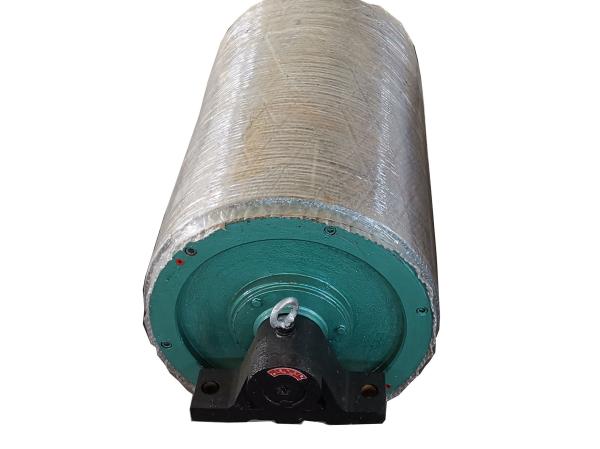

Belt Conveyor Motor Cement Conveyor Pulley Drum ASME B16.28
Belt Conveyor Motor Cement Conveyor Pulley Drum ASME B16.28
Belt Conveyor Motor Cement Conveyor Pulley Drum ASME B16.28
Belt Conveyor Motor Cement Conveyor Pulley Drum ASME B16.28
Specifications
Brand Name :
QINYI
Model Number :
Belt Conveyor Bend Pulley
Certification :
CE / ISO / FDA / SGS / TUV
Place of Origin :
china , cangzhou
MOQ :
5 ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
10~15 days
Packaging Details :
Steel-strcuture pallet or wooden case
Product name :
Belt Conveyor Bend Pulley
Shapes :
flat roll, cambered or crowned roller pulley, anilox roll.
Sample :
available,Please contact our representatives for more details
Standard :
DIN,ASME B16.28,DL/T 515 SY/T 5257 ASME B16.49
Packing :
Plastic Bag+Carton (Pallet with large quantity),pallet or as the customers' requirements
Model NO. :
standard or customized
Application :
cement,mine,Coal Mining
Applicable industries :
Manufacturing Plant,Building Material Shops
Description

Pulley Drum Pulley Bend Pulley Belt Conveyor Motor Drum

Bend Pulley is used for changing the direction of conveyor belt or increasing the surrounding angle between conveyor belt and driving pulley. Usually installed at the tail part or the vertical take-up equipment part when the belt direction need to 180°bending. It will be installed above the take-up equipment part while 90°bending. The surface treatment of the bend pulley can be smooth steel and flat rubber lagging.

Product Description

1, This series Drive rollers are welded by steel plate, and using rolling bearings.
2, The surface of drive plulley includes three type: smooth, plastic and cast plastic. Usually the smooth pulley can be used on condition that the power is not big, and the the ambient temperature is low. The plastic surface pulley should be used when it is easy to slip.
The quality of cast plastic pulley is better.Becasue the external surface layer is wear-resistant. The packed plastic drum can achieve the same performance. It's easy to replace rubber surface , easy to maintain.And it's also be considerde affordable and durable.
3, Please refer to the following table for each bandwidth of the roller.
4, The diameter selection of entire core plastic conveyor belt drive pulley is same as the same intensity rubber conveyor belt.
conveyor pulley Description

Material: steel, nylon, SS, ceramic, PVC, UHMWPE, HDPE
Bearing Model: 6204,6205,6305,6306,6307,6308
Bearing Brand: HRB, LYC, ZWZ,SKF, NSK,C&U
Working Life: ≥30000 hours
Diameter: D38mm to D200mm
Belt Width: B450mm to B2200mm
Application: recycling industry
power industry
parcel transport industry
petro industry
coal mining industry
cement concrete industry
machining industry
Standard CEMA/JIS/DIN/Australia
Special: can be customized according to customer or design for customer
Supply Ability: 1000pcs per day
Certificate: ISO9001:2008, BV, SGS,TUV

Key Features of flat belt idler pulley

(1).Steady running, reliable quality and reduce maintenance;
(2).Less movement longitudinally, rotating smoothly, extends the life span;
(3).Various bearing housing and sealing structure are available for the customers choice;
(4).Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
(5).Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,
low shaking and less noise.

Belt Conveyor Motor Cement Conveyor Pulley Drum ASME B16.28

Belt Conveyor Motor Cement Conveyor Pulley Drum ASME B16.28
